Components









WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR (for Front Door): COMPONENTS

WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR

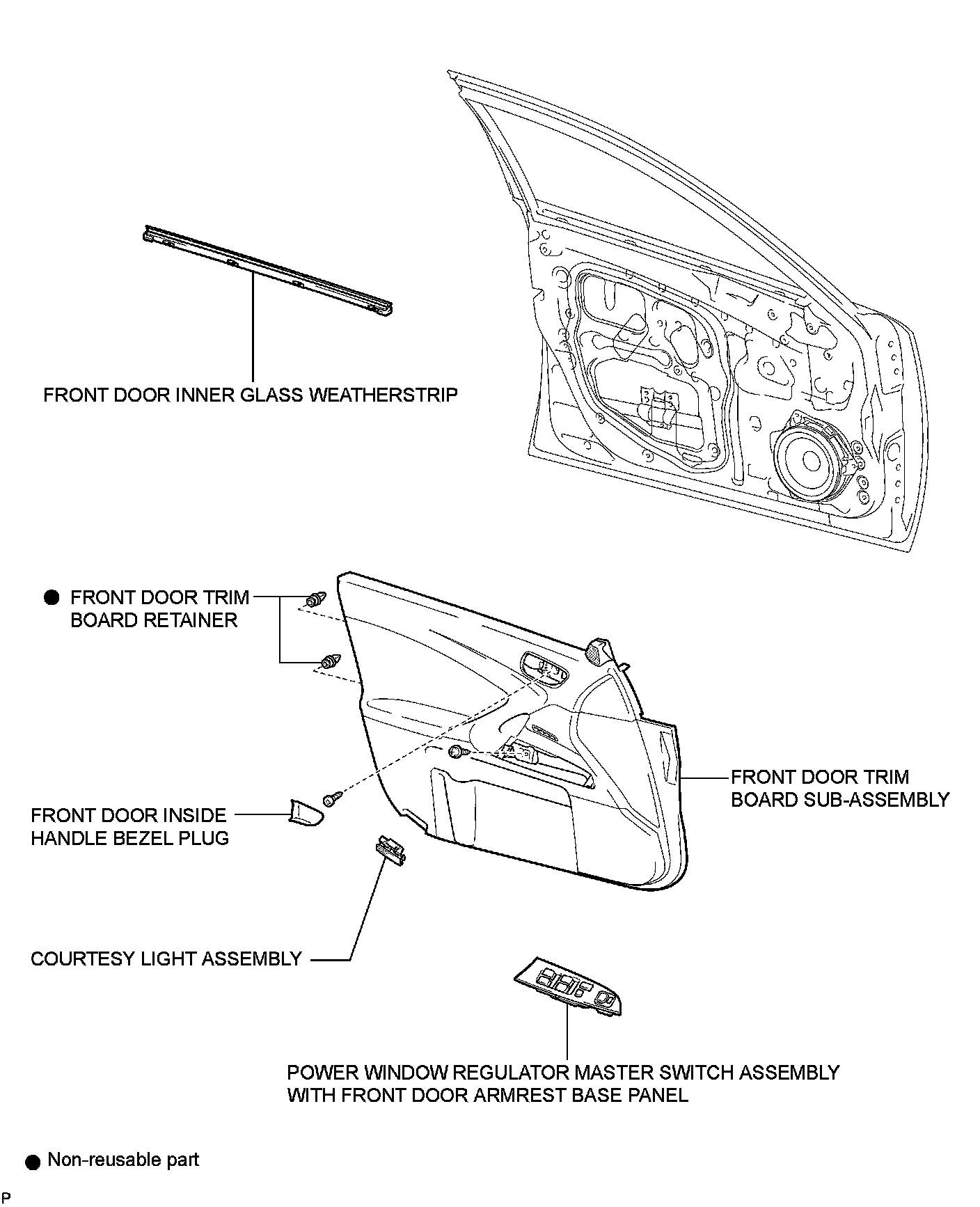

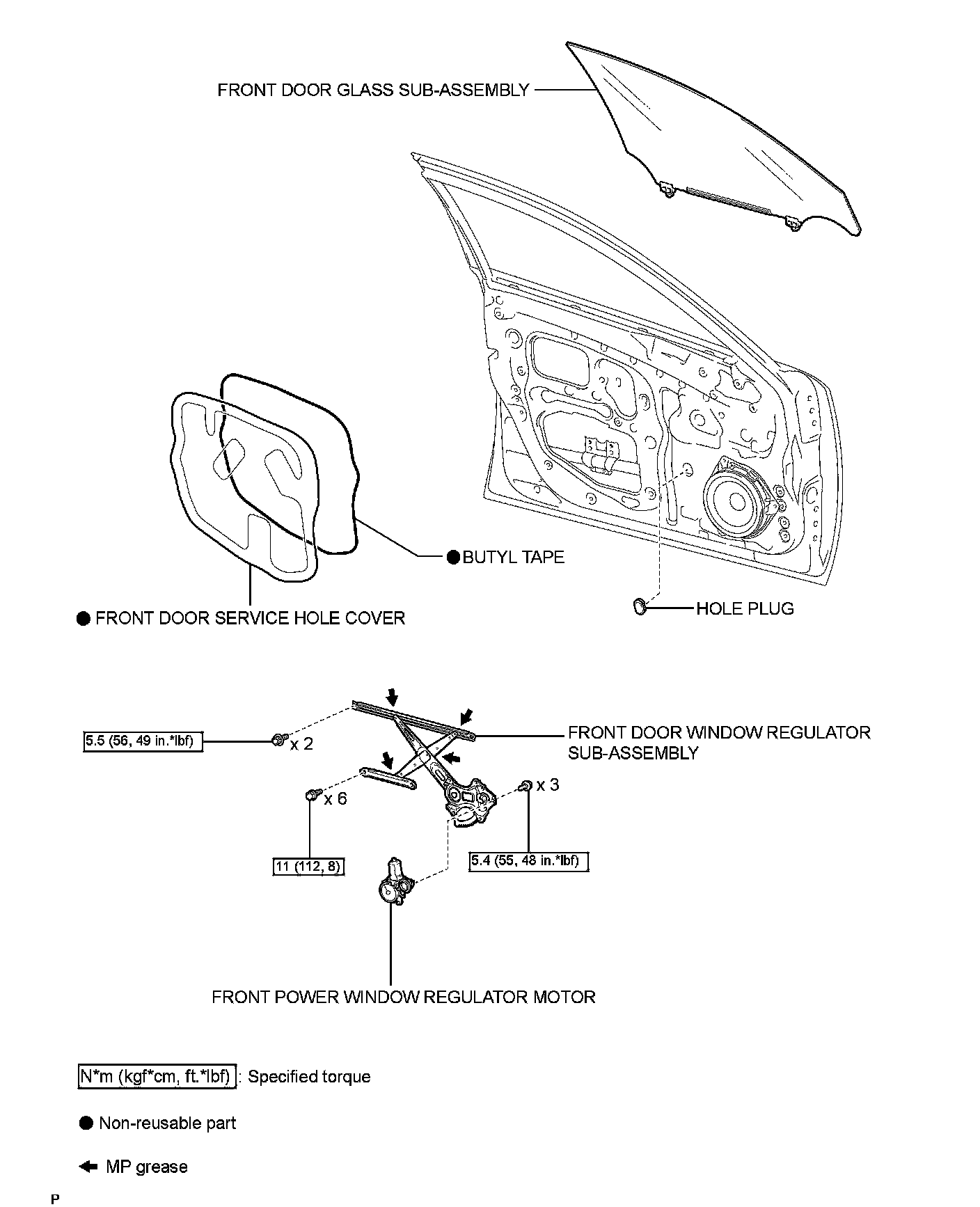

ILLUSTRATION
