Engine Room Main Wire

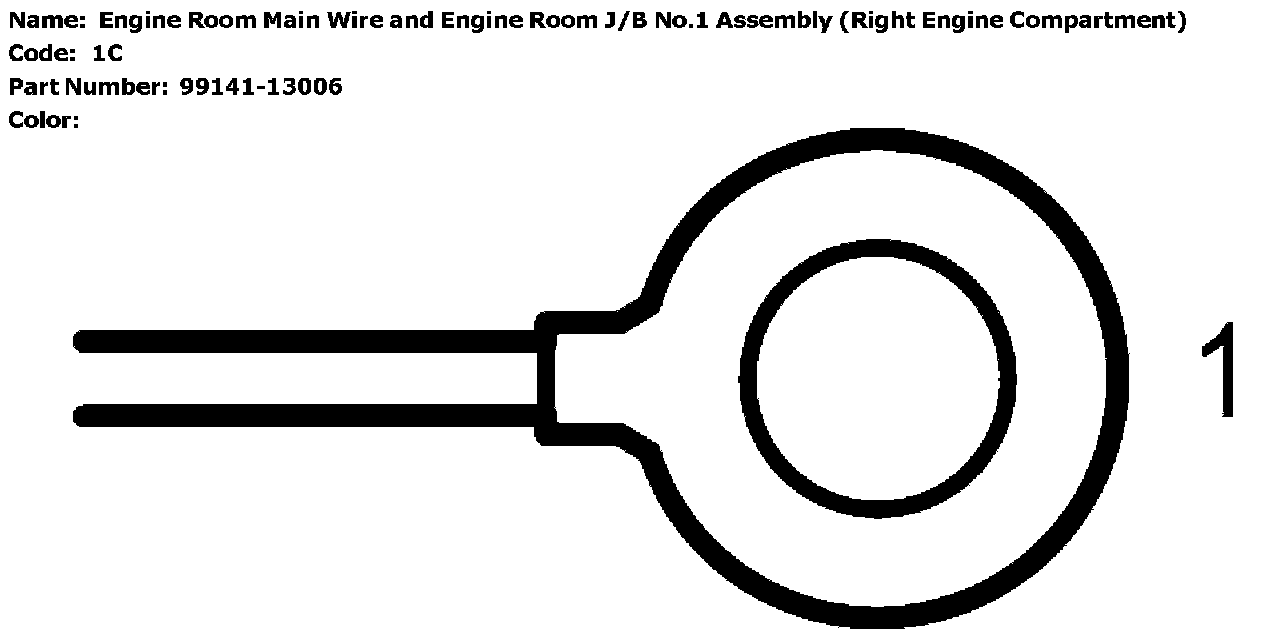

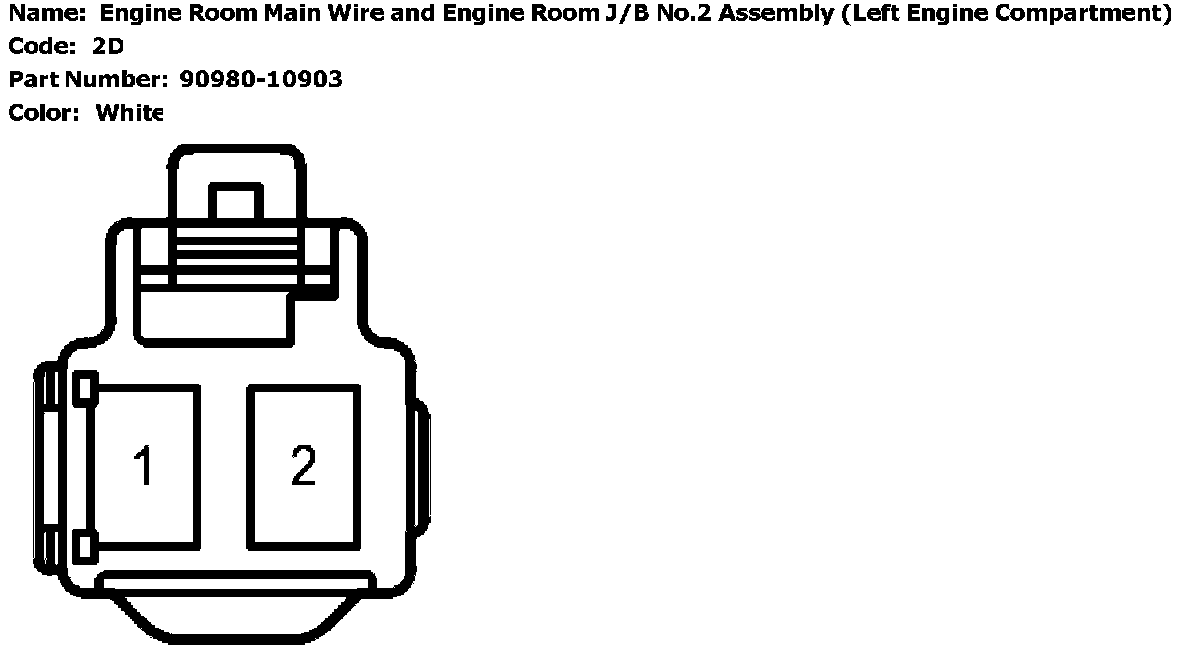

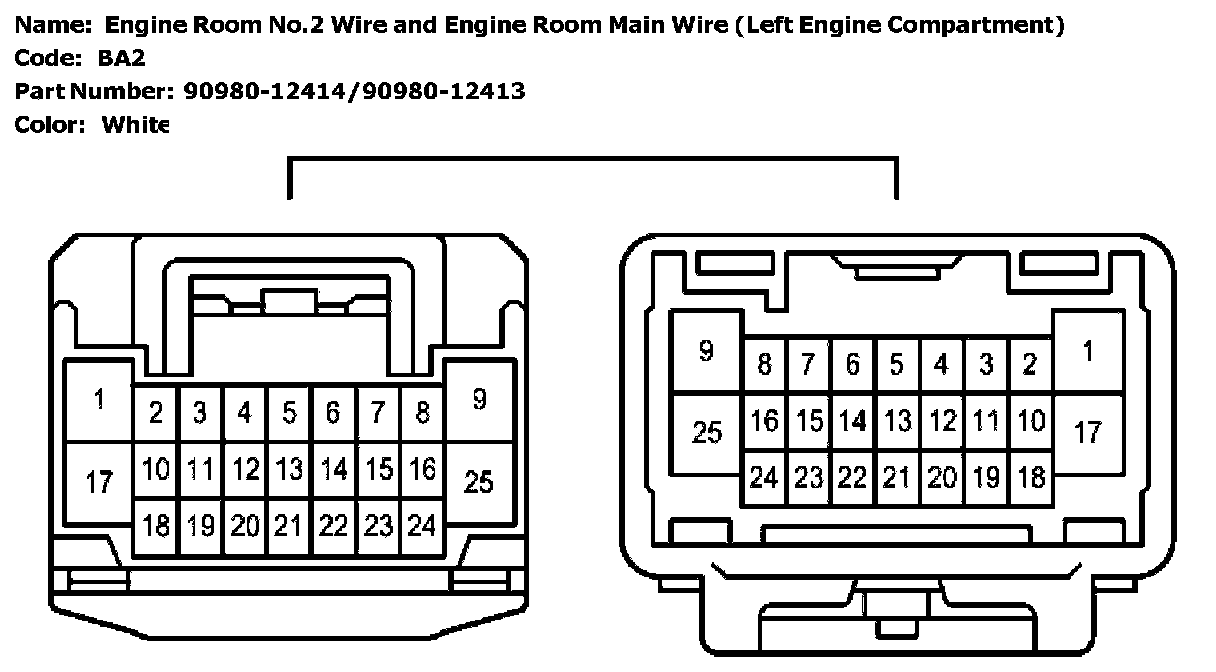

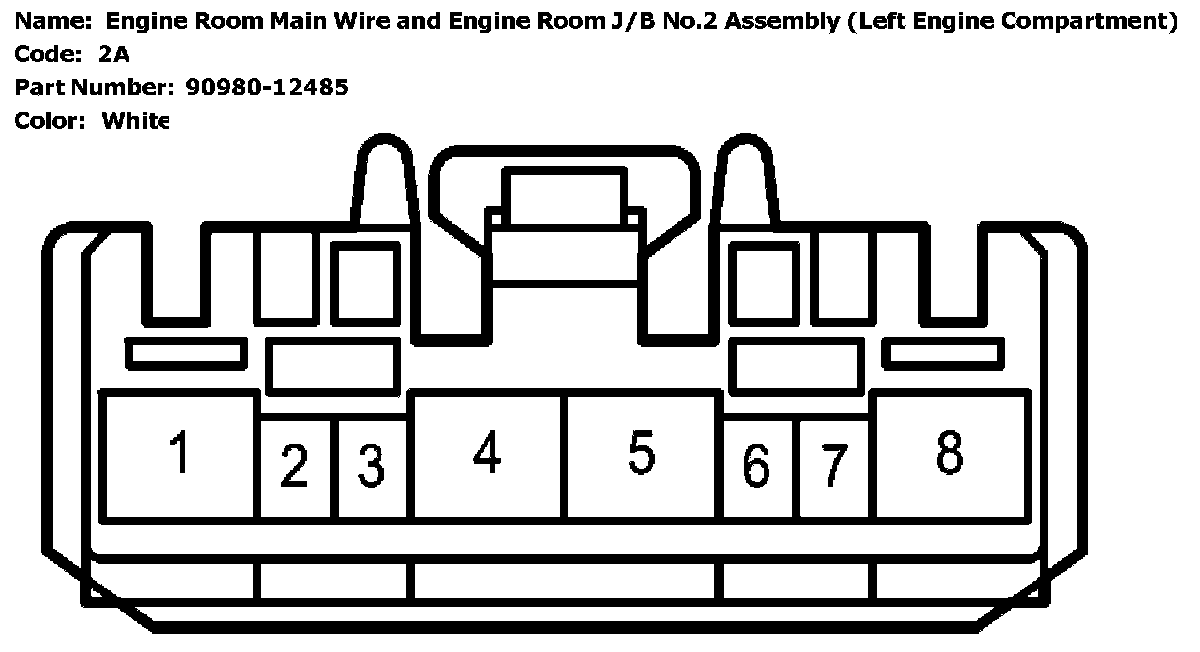

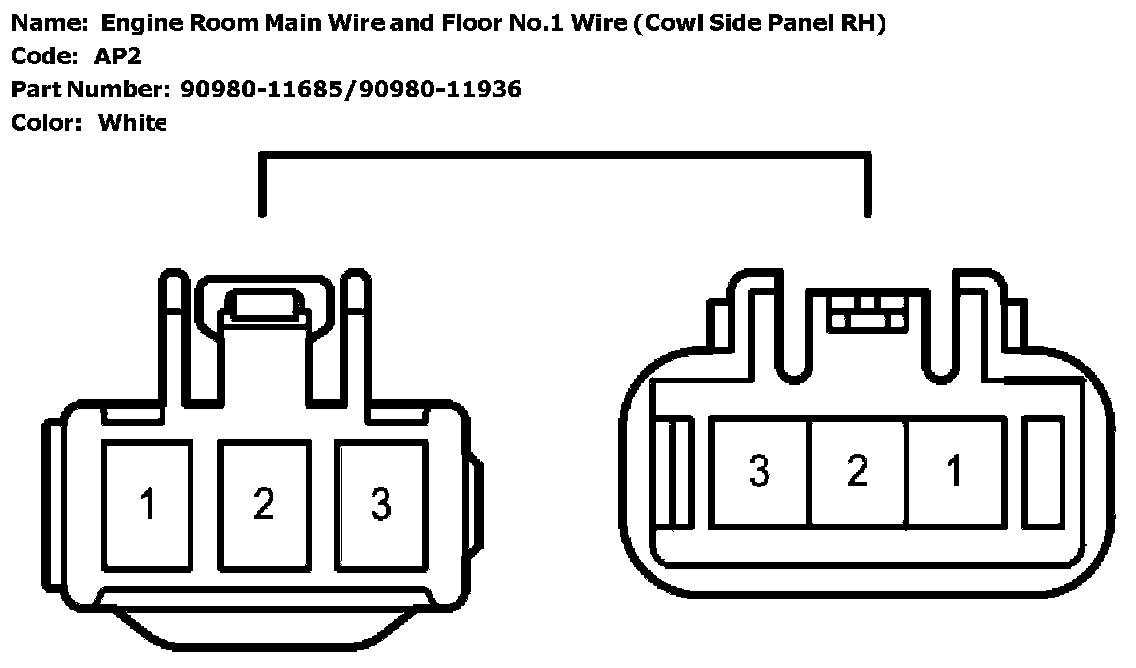

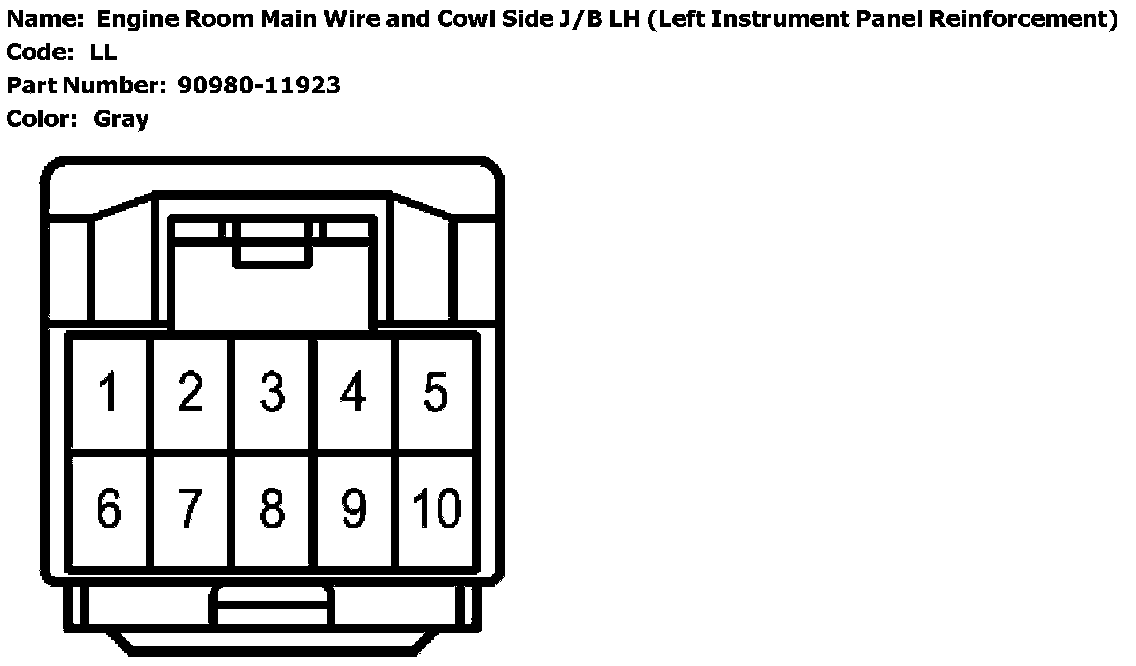

Gray:

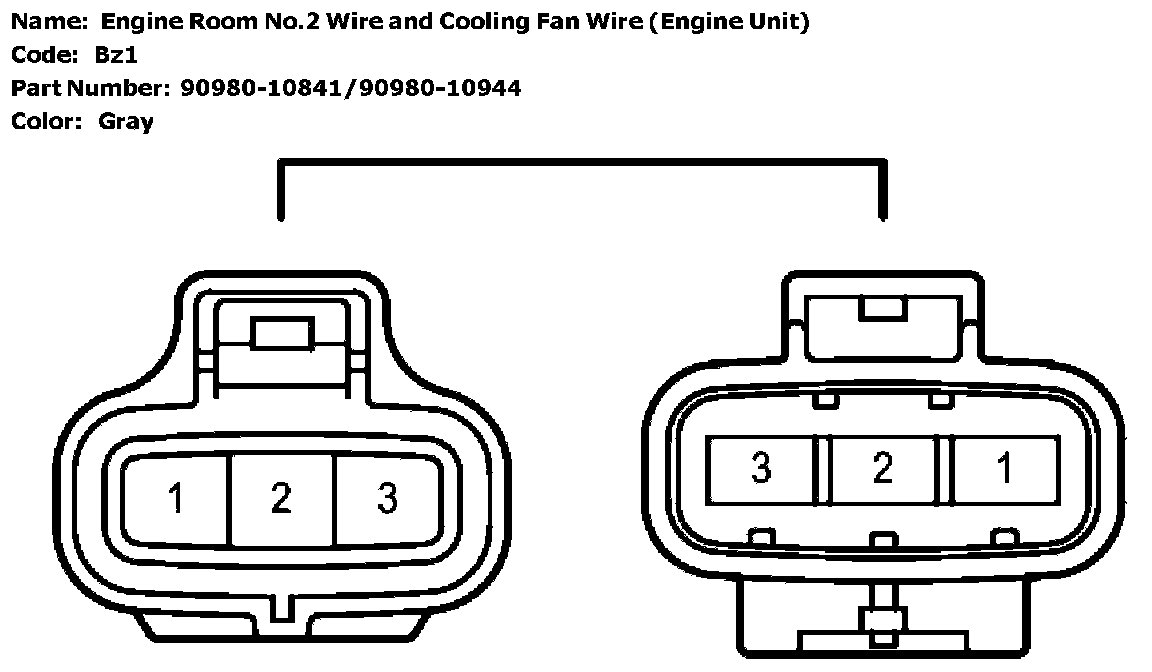

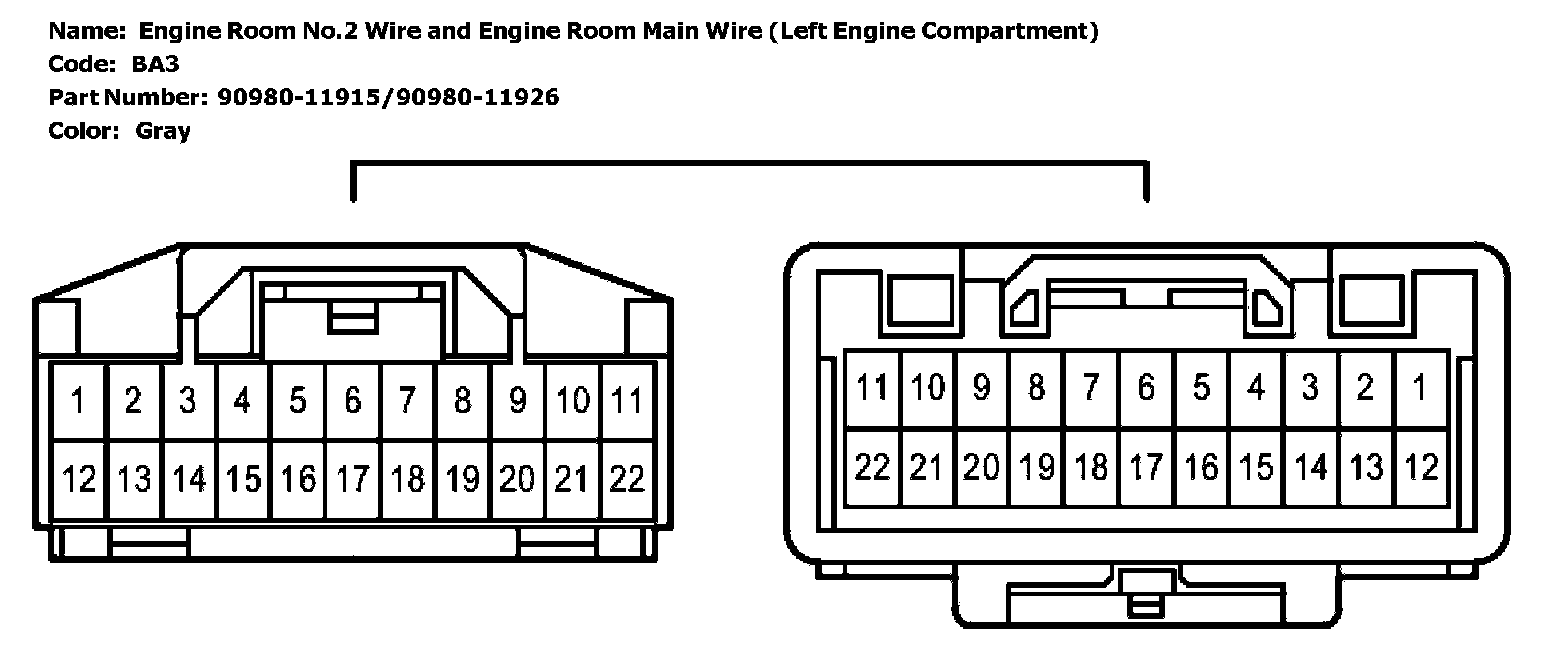

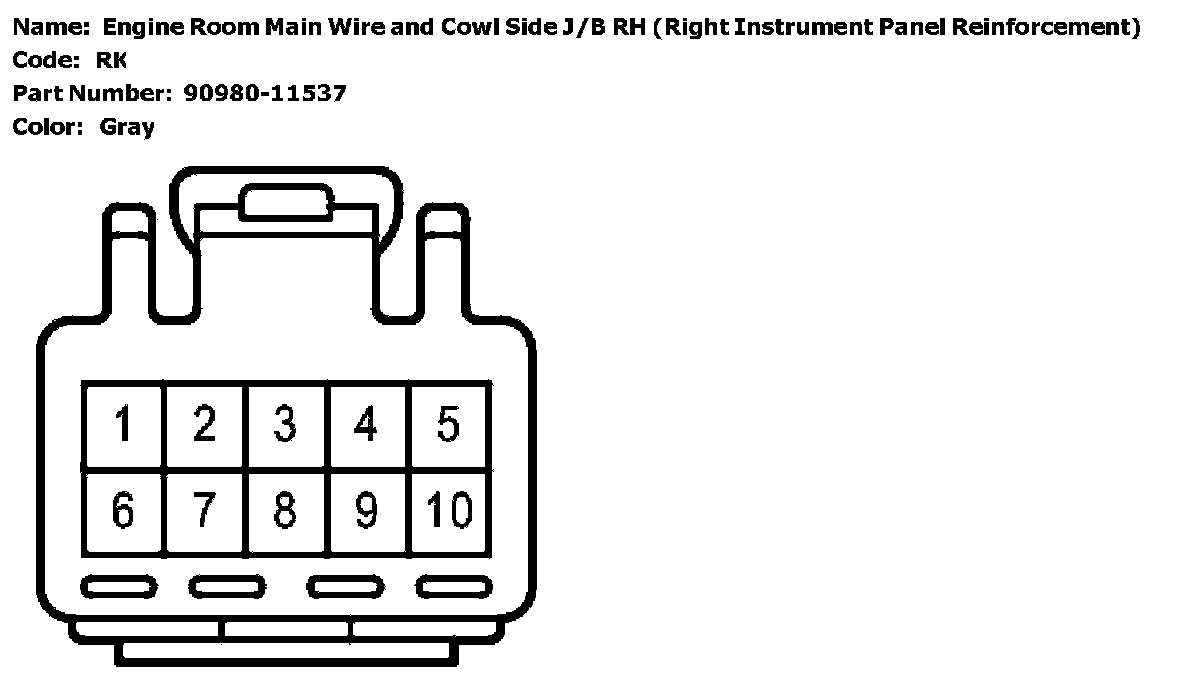

Gray:

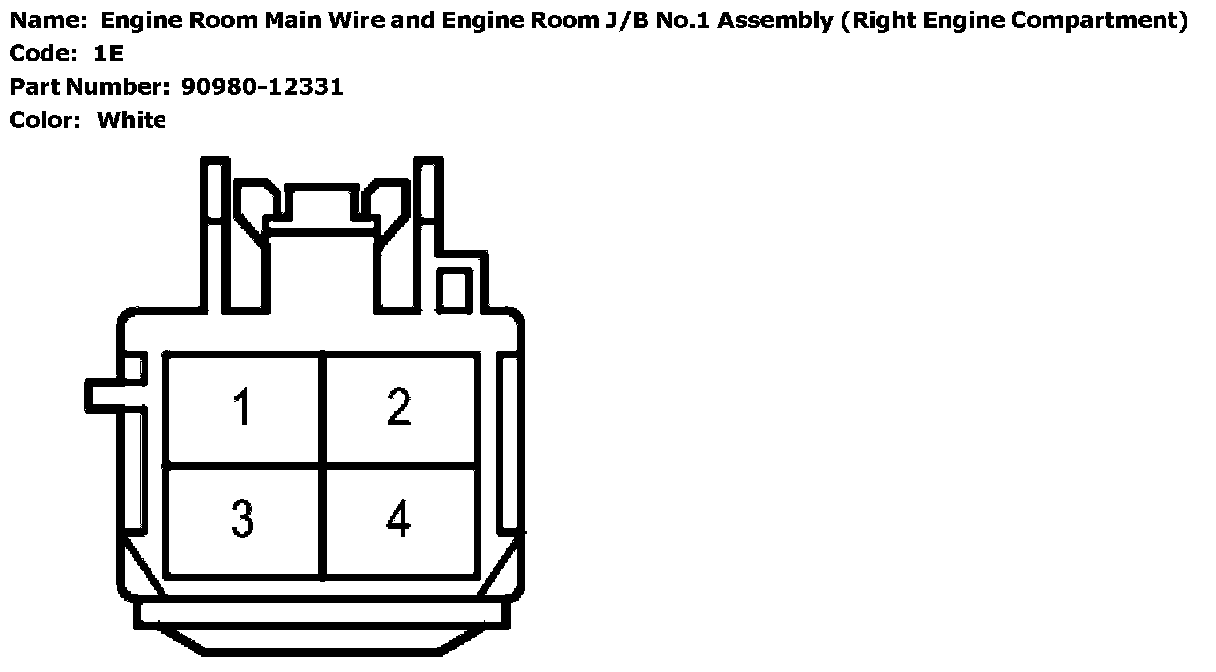

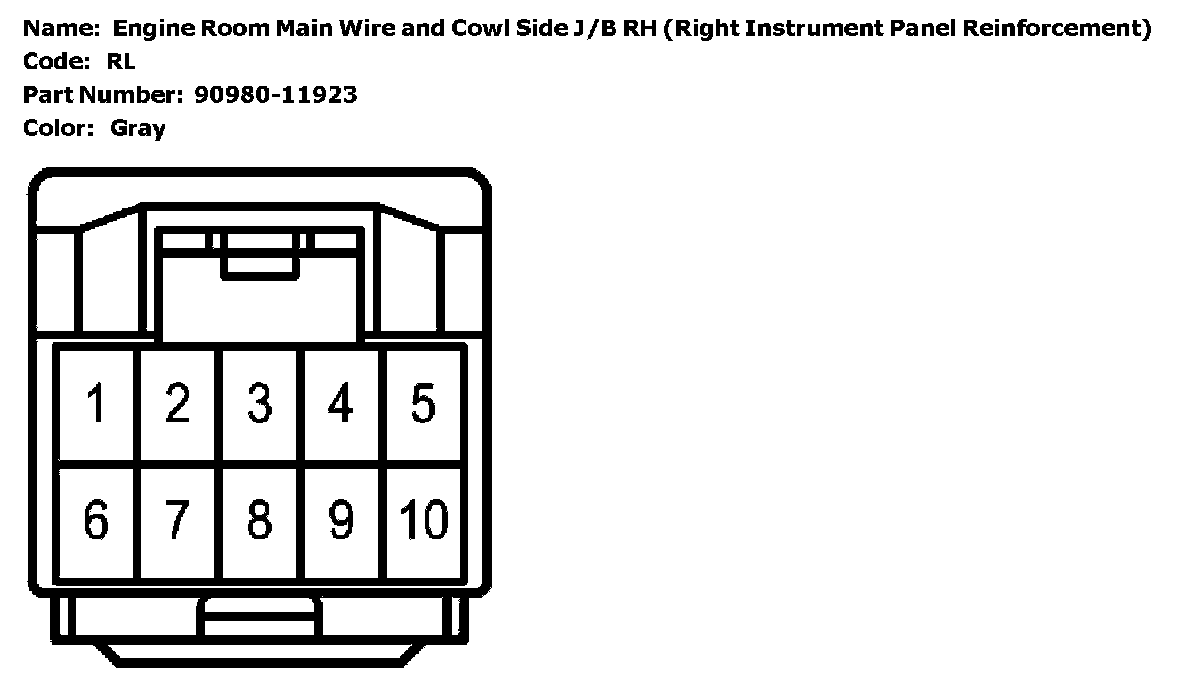

Gray:

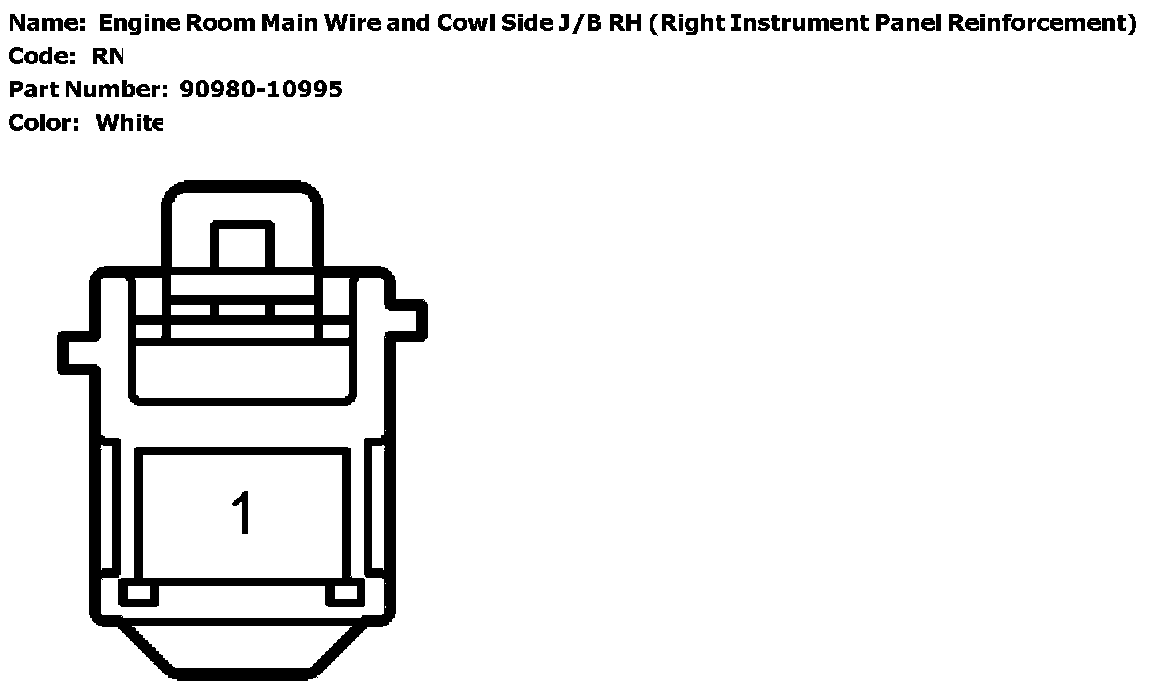

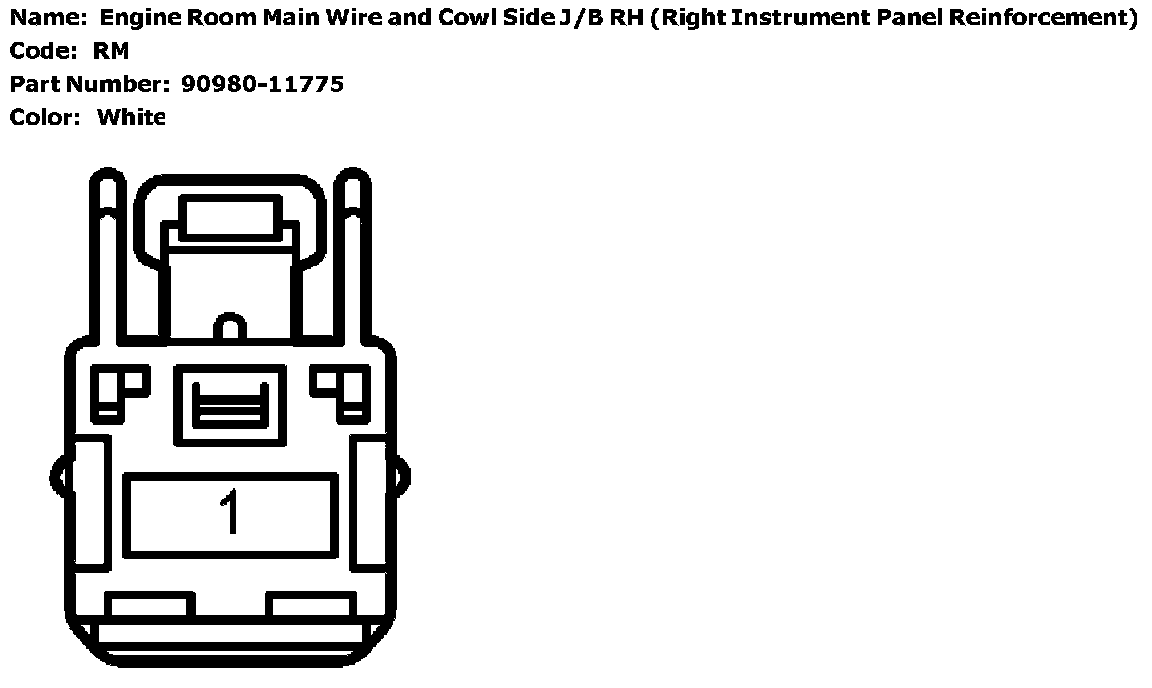

Gray:

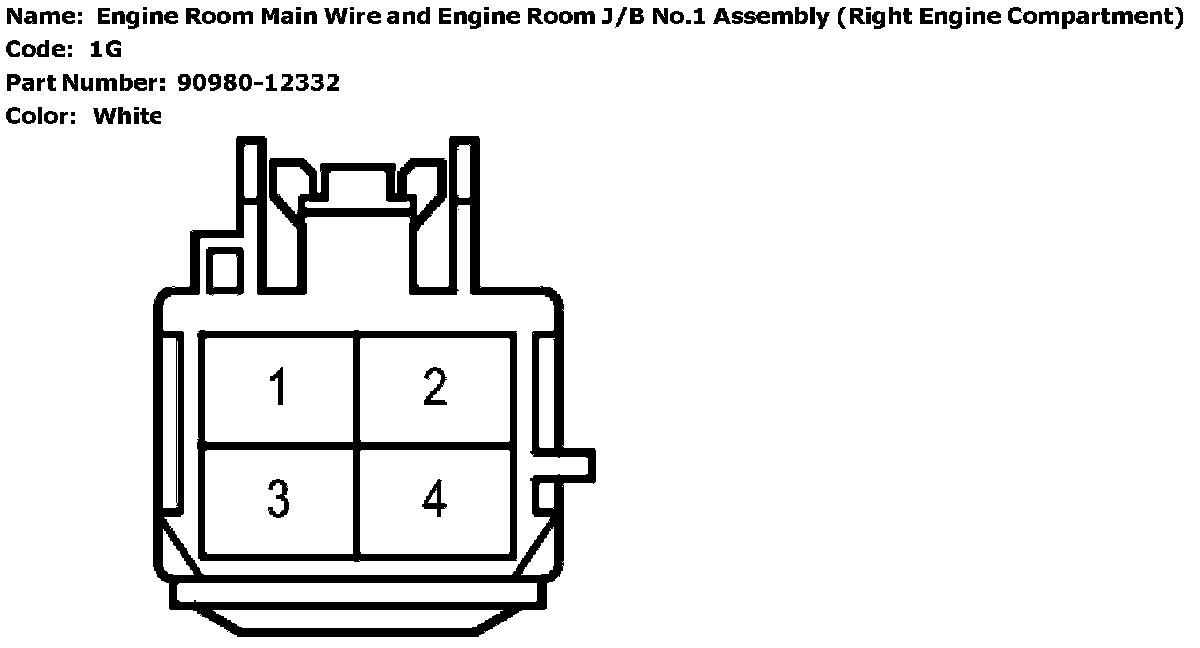

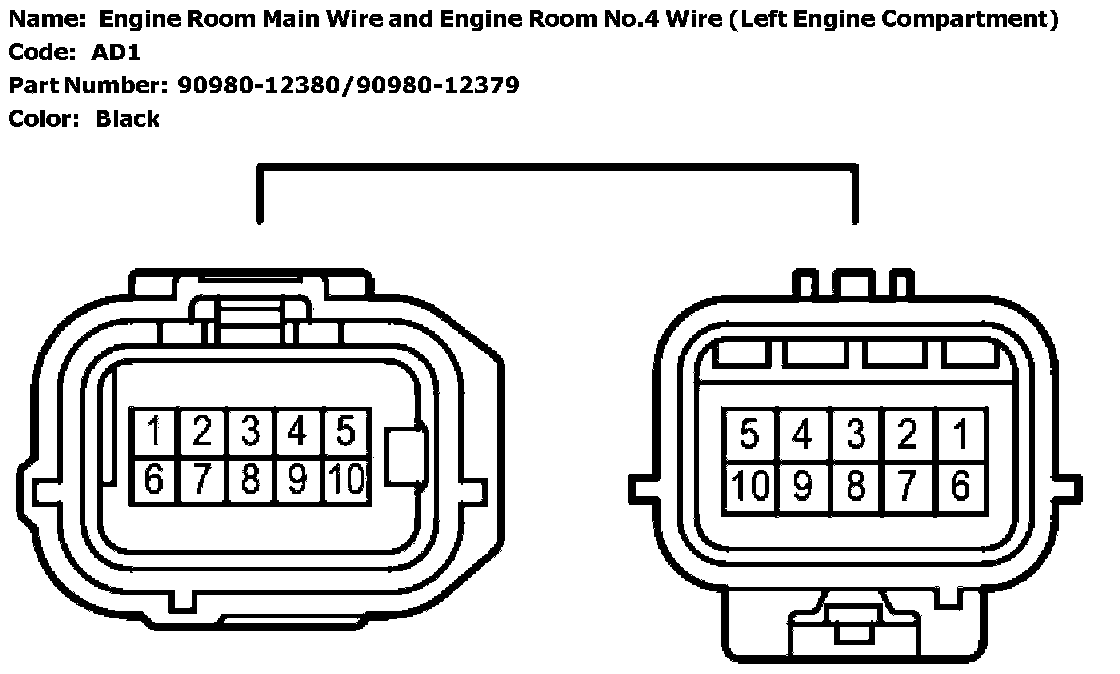

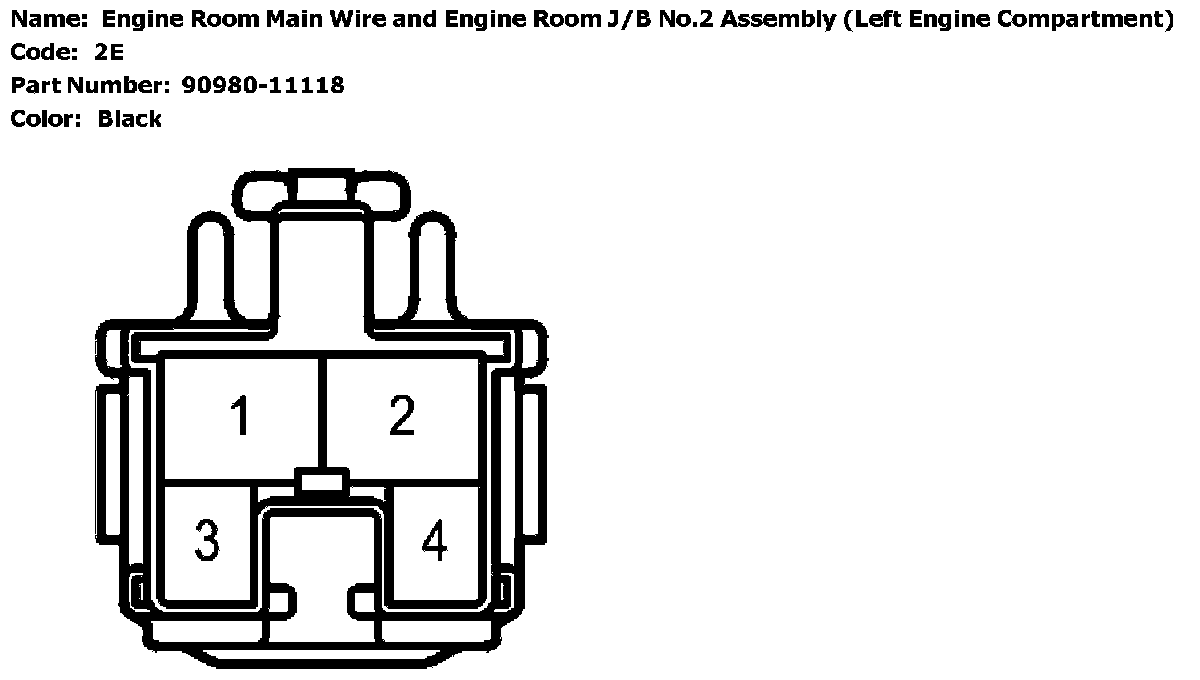

Black:

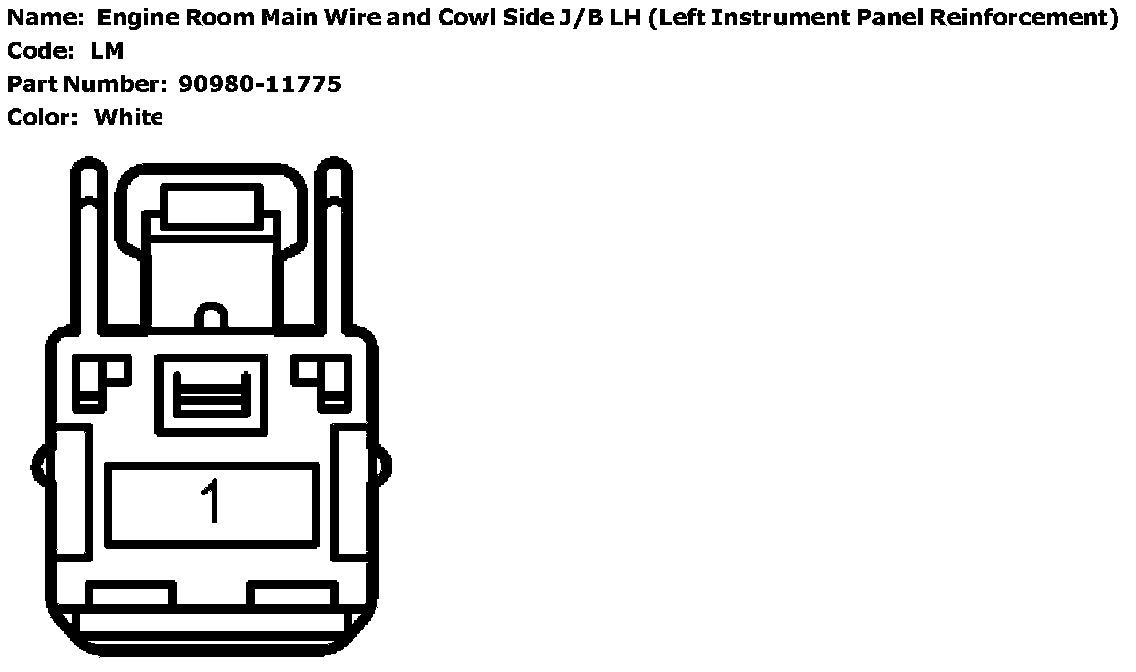

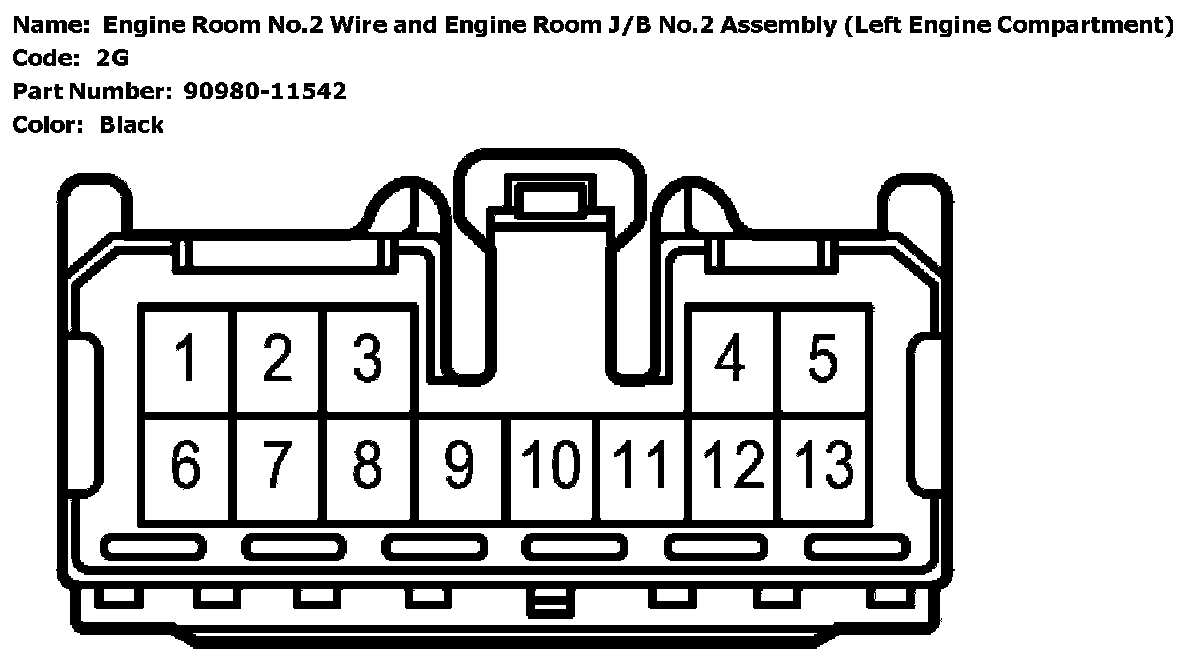

Black:

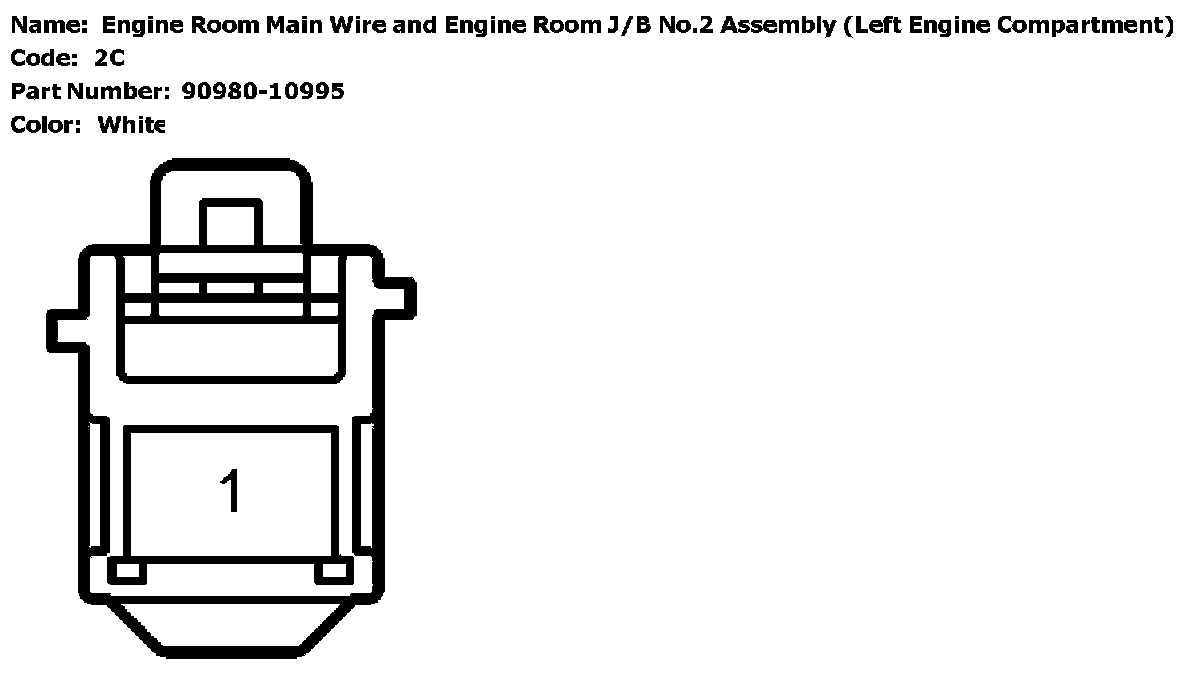

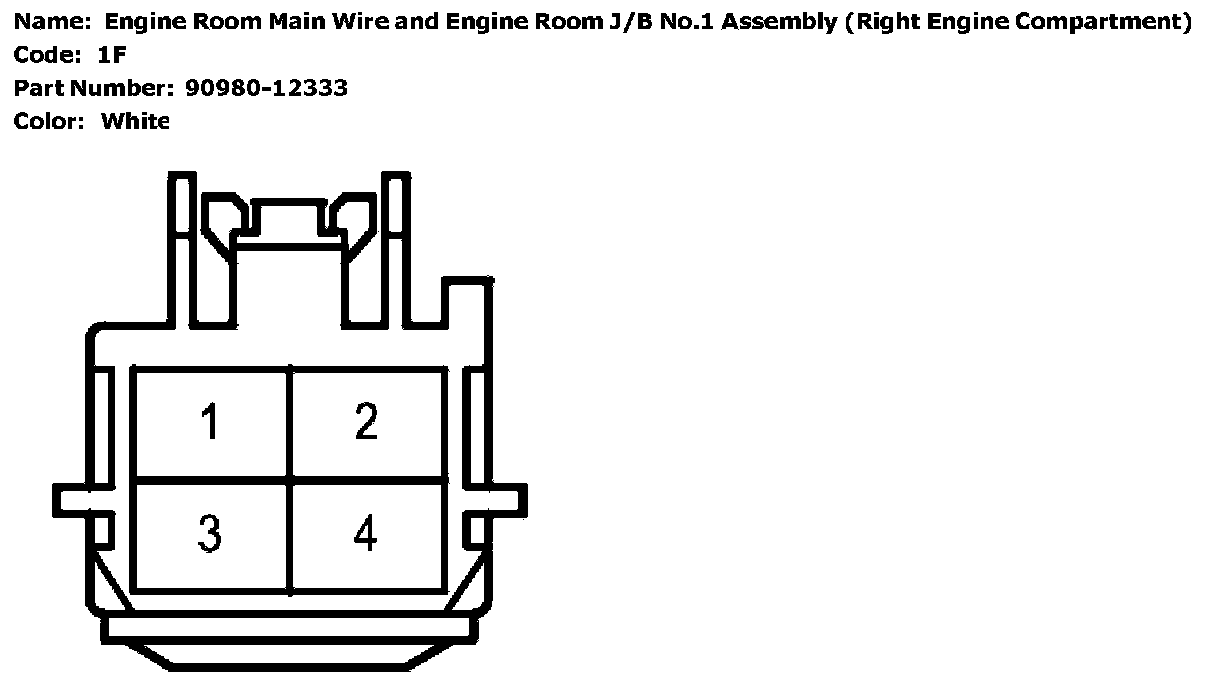

Black:

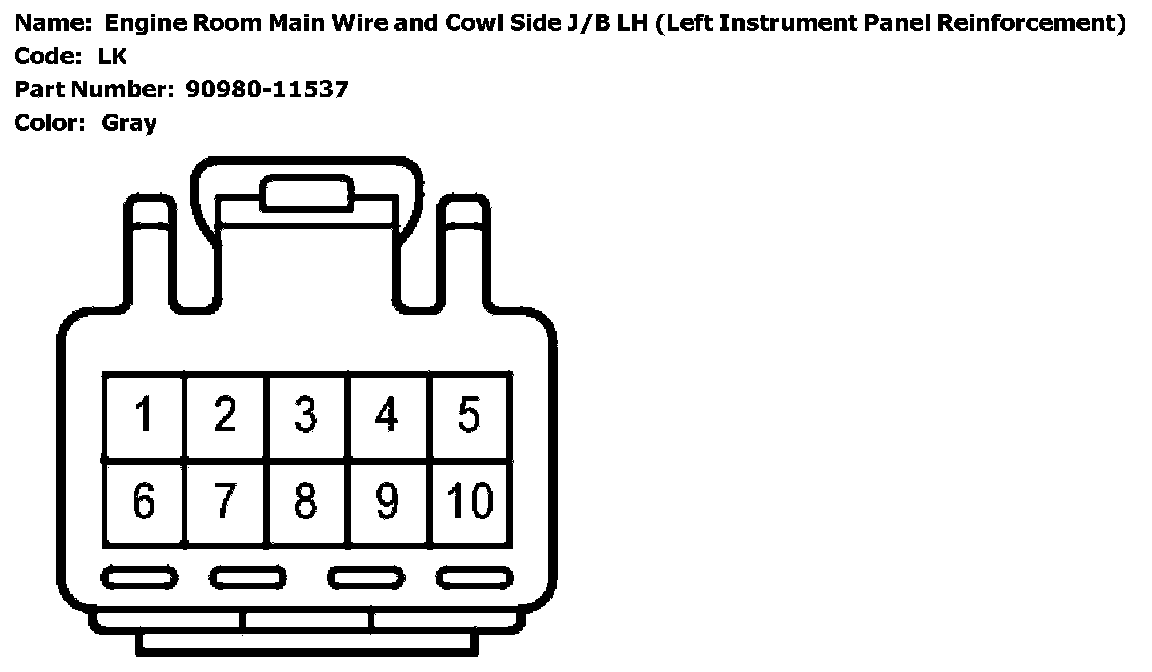

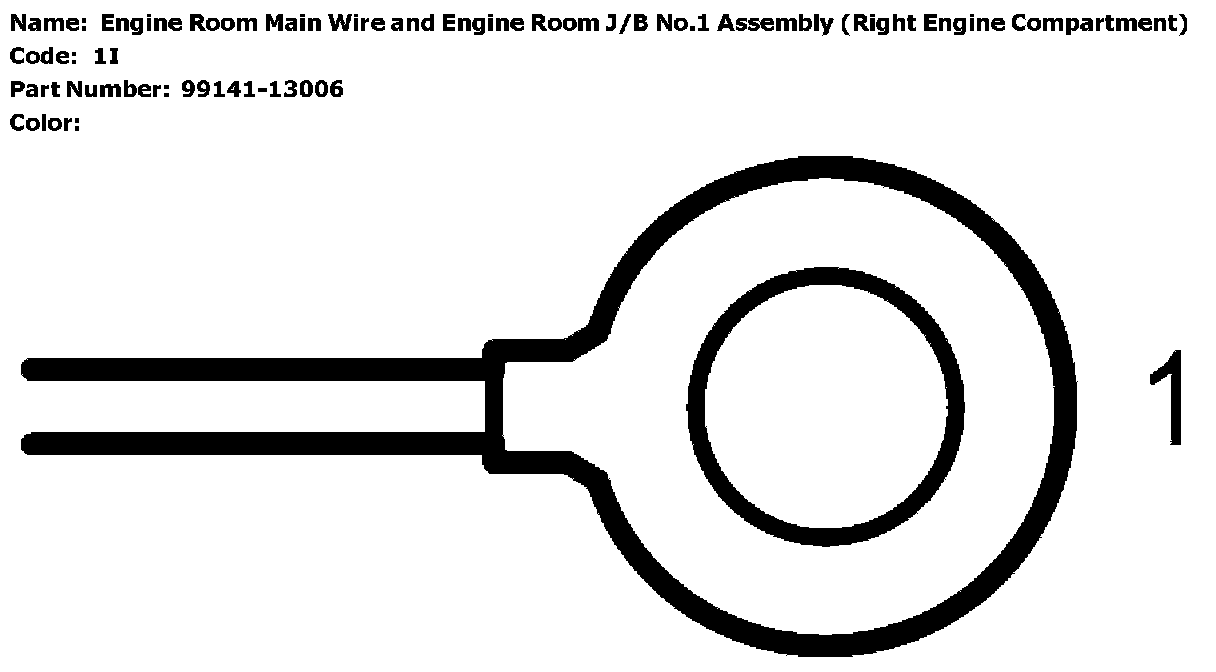

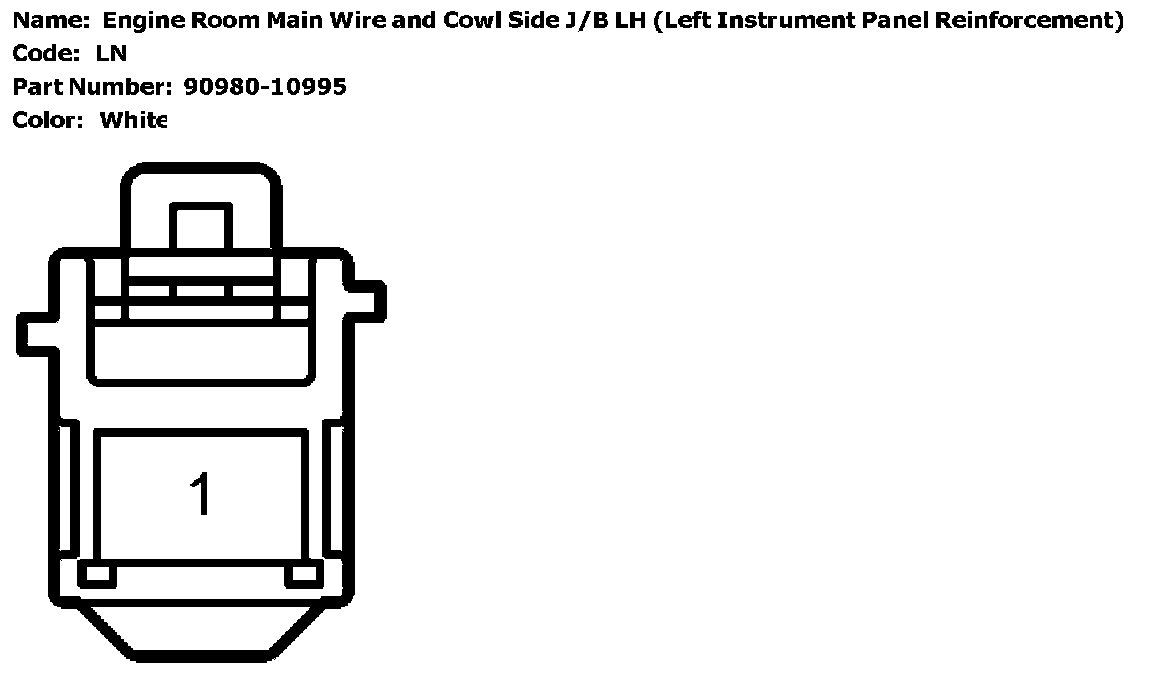

Gray:






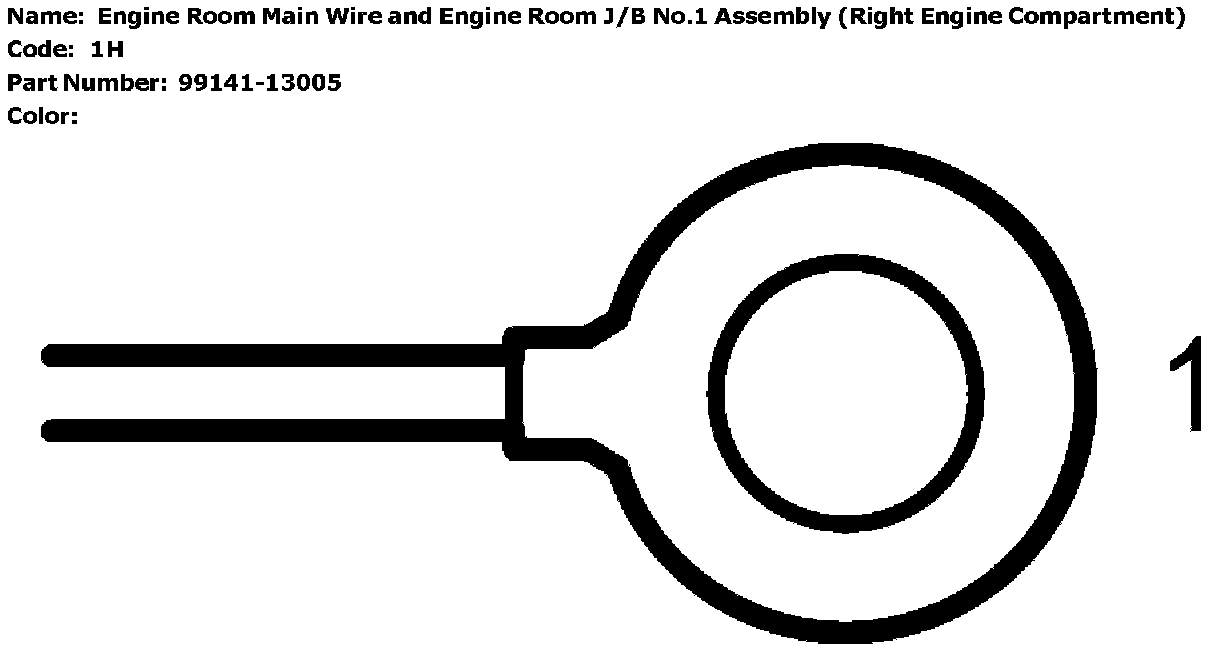

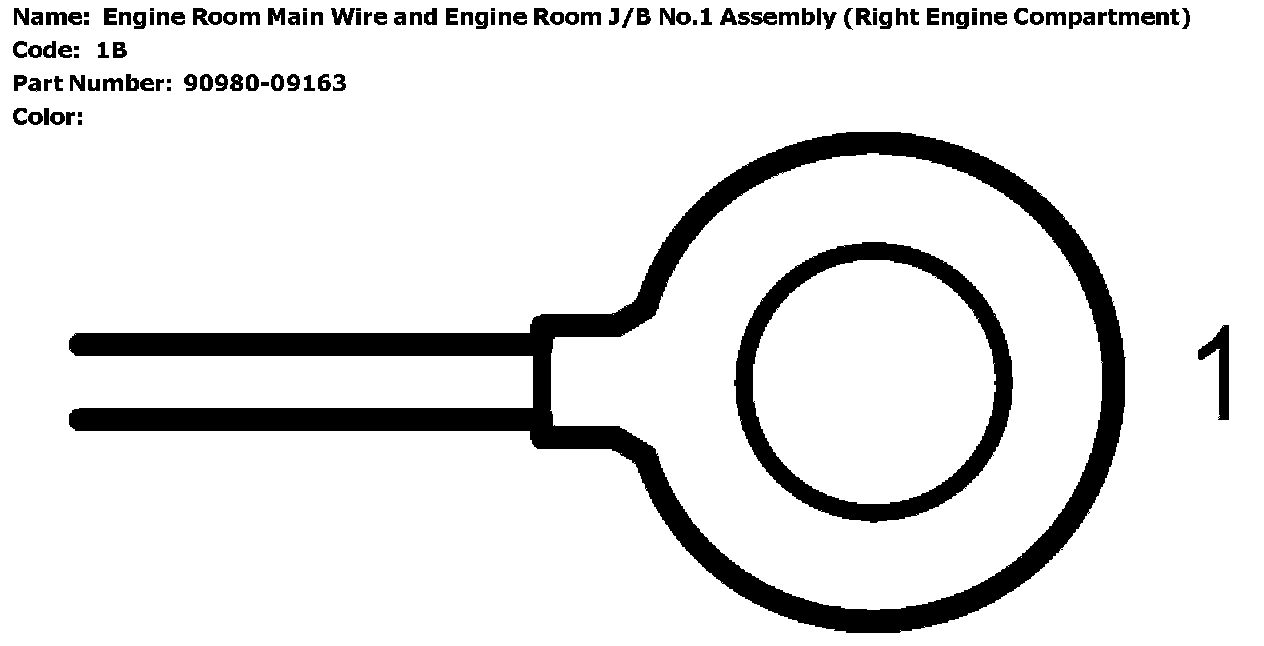

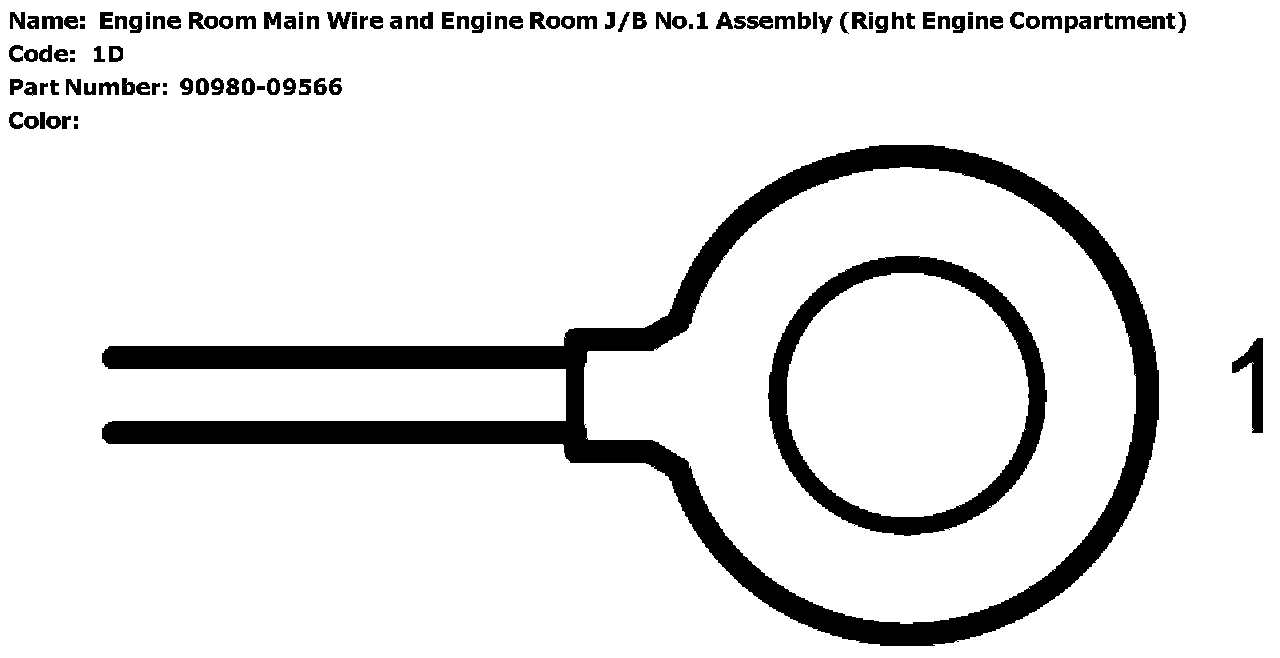

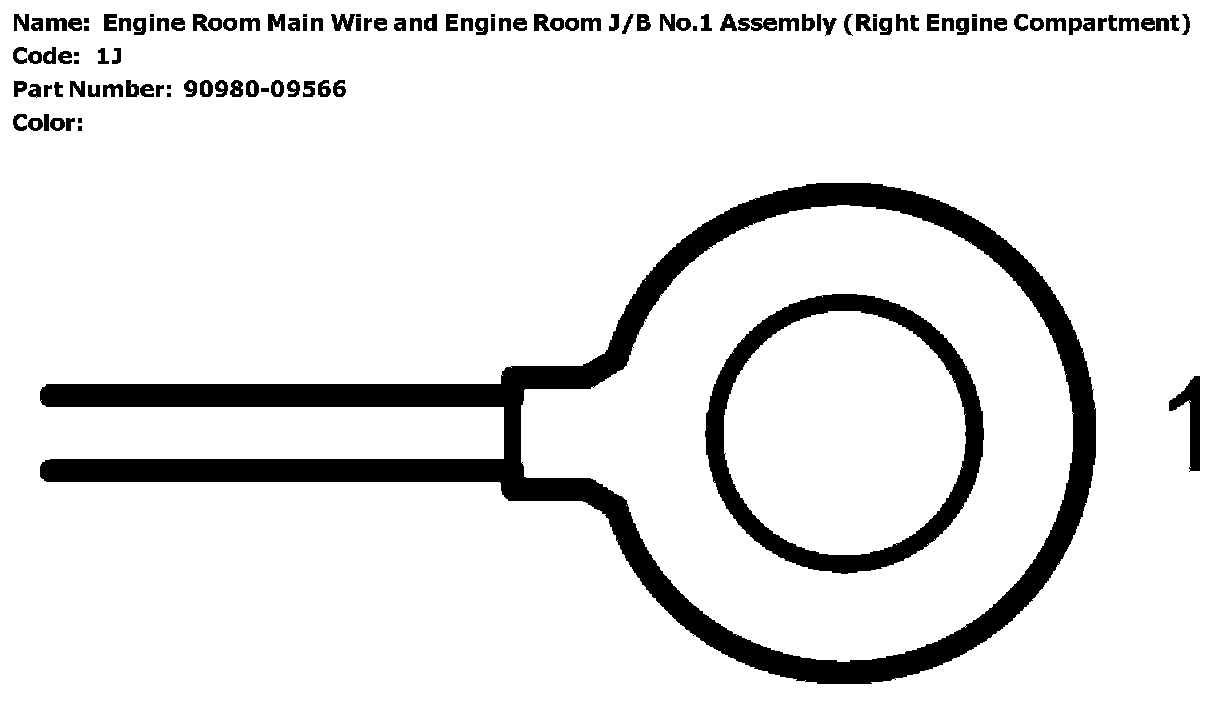

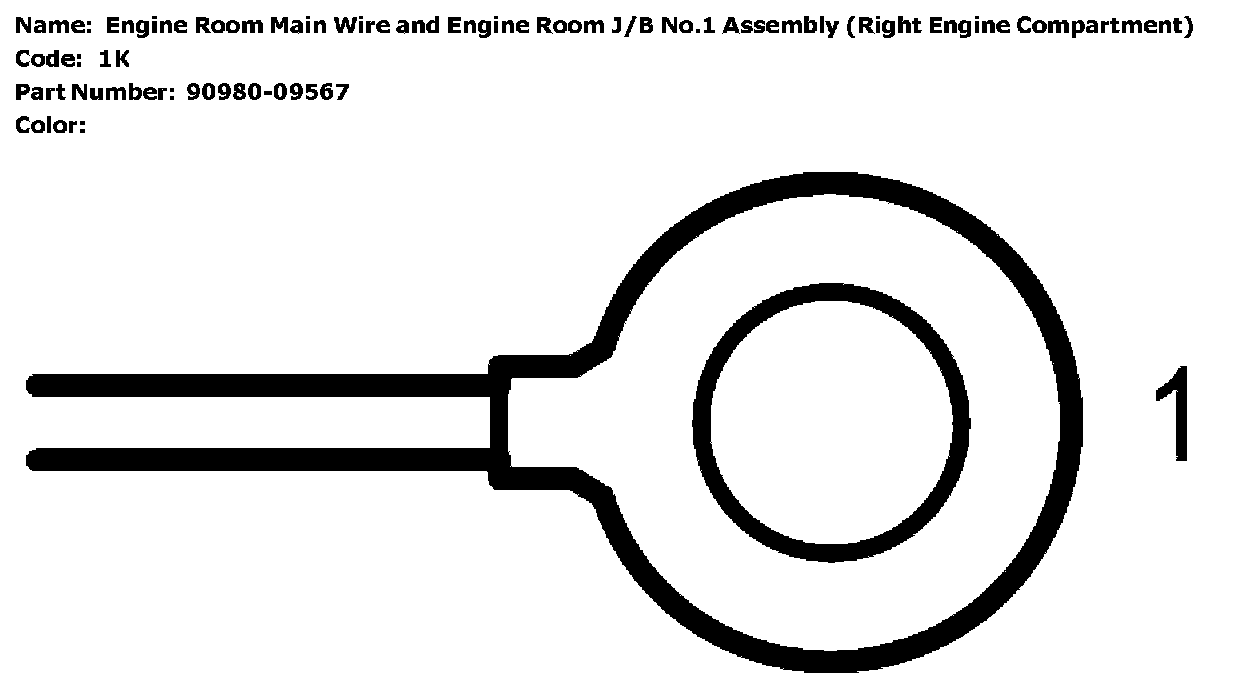

Black:






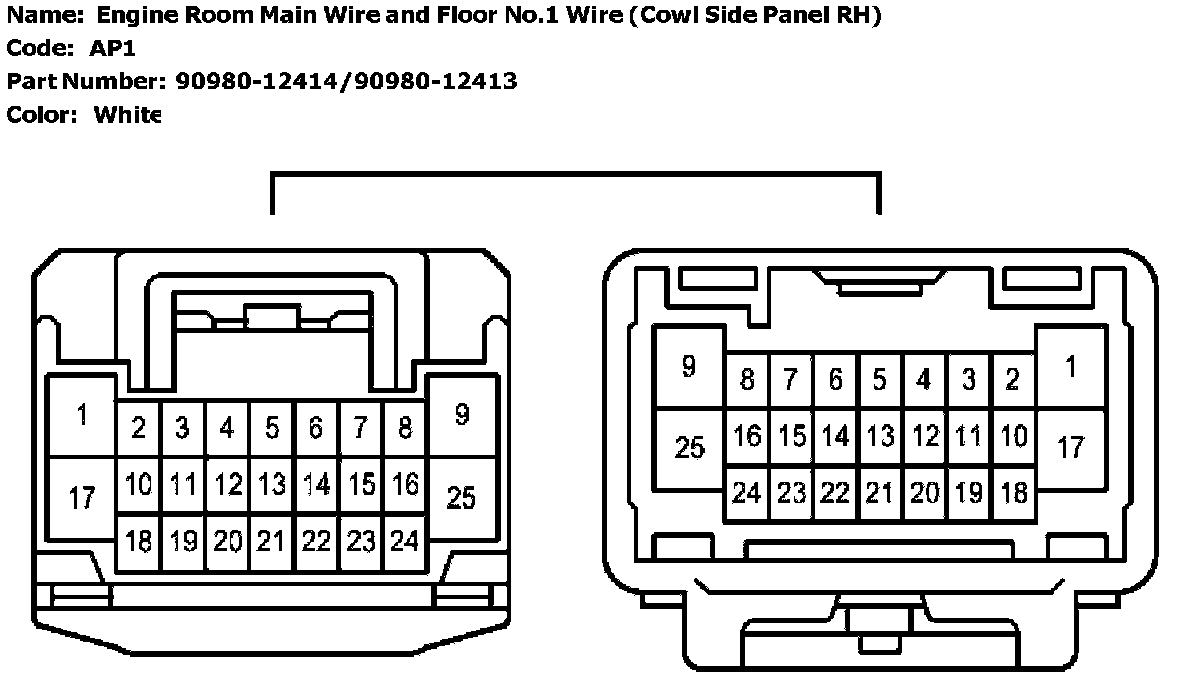

Gray:











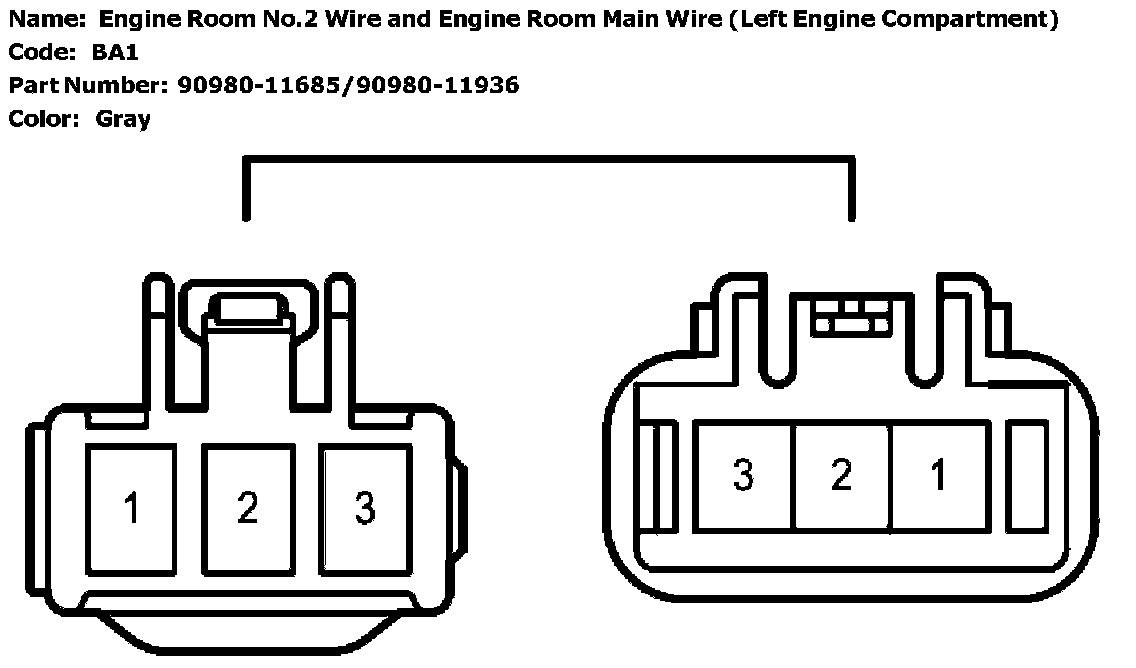

Gray:
