Engine Views

Engine Views:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C COMPRESSOR CLUTCH SOLENOID
AMBIENT TEMPERATURE SENSOR
CRANKSHAFT POSITION SENSOR
FRONT AIR FILL SOLENOID
FRONT GATE SOLENOID
FUEL INJECTORS
INTAKE MANIFOLD TUNING VALVE
LEFT FRONT PARK/TURN LAMP
LEFT HEAD LAMP
RIGHT HEADLAMP
RIGHT SIDE MARKER LAMP
STARTER MOTOR RELAY

Engine Views:

4X4 CENTER AXLE DISCONNECT SOLENOID
AIR SUSPENSION COMPRESSOR MOTOR
AIR SUSPENSION COMPRESSOR RELAY
BRAKE FLUID LEVEL INDICATOR SWITCH
BRAKE PRESSURE SWITCH
CAMSHAFT POSITION SENSOR
COIL ON PLUG
CYLINDER HEAD TEMPERATURE SENSOR
DAYTIME RUNNING LAMP MODULE
ELECTRONIC VARIABLE ORIFICE ACTUATOR
ENGINE OIL PRESSURE SWITCH
GENERATOR/VOLTAGE REGULATOR
HEATED OXYGEN SENSOR #21
HIGH PITCH HORN
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
LEFT FRONT WHEEL 4 WHEEL ANTI-LOCK BRAKE SYSTEM SENSOR
MINI FUSE BLOCK
POWER DISTRIBUTION BOX
POWER DISTRIBUTION RELAY BOX
POWERTRAIN CONTROL MODULE
RADIO NOISE CAPACITOR #1
RADIO NOISE CAPACITOR #2
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
VENT SOLENOID ASSEMBLY
WASHER FLUID LEVEL SWITCH
WINDSHIELD WIPER MOTOR

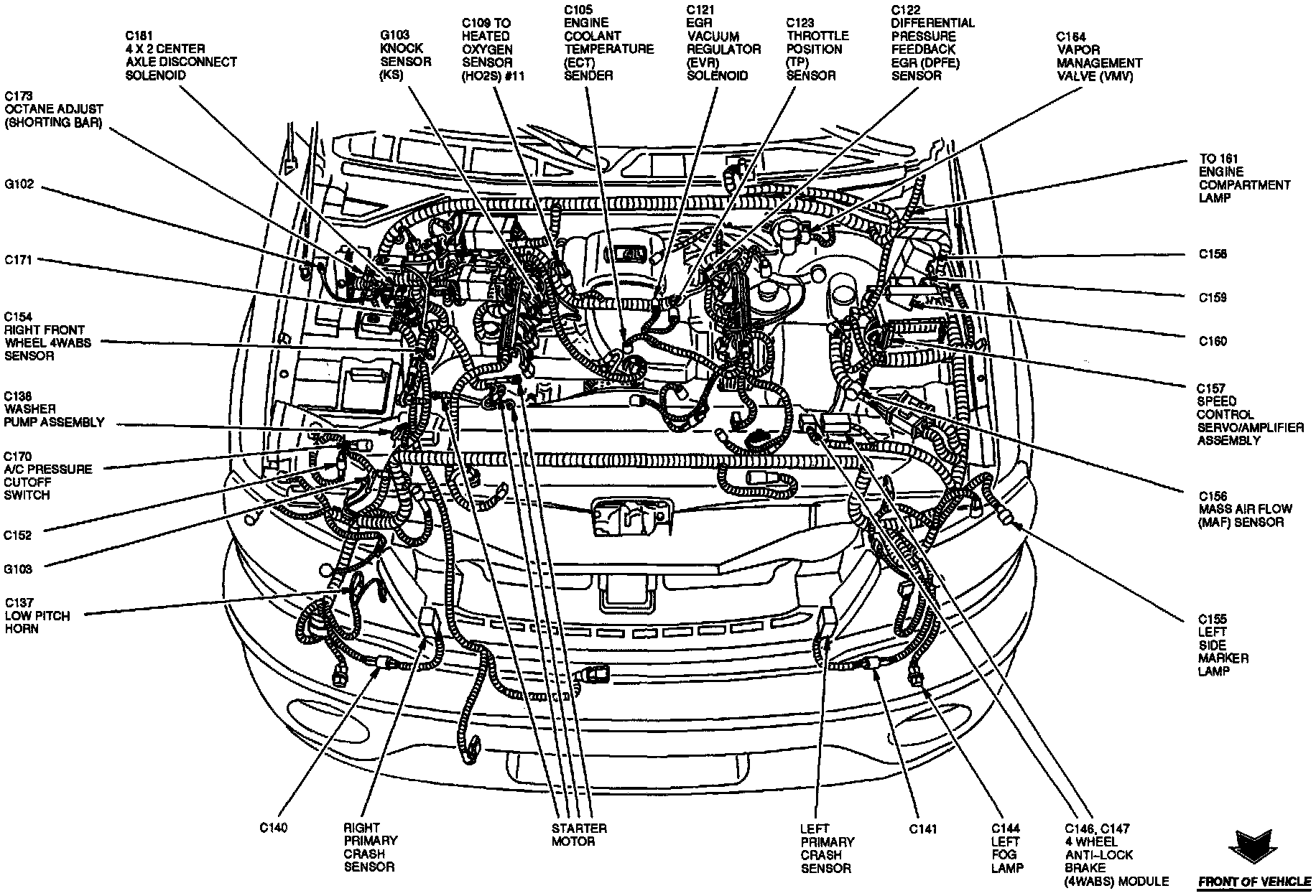

Engine Views:

4 WHEEL ANTI-LOCK BRAKE MODULE
4X2 CENTER AXLE DISCONNECT SOLENOID
A/C PRESSURE CUTOFF SWITCH
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENDER
HEATED OXYGEN SENSOR #11
KNOCK SENSOR
LEFT FOG LAMP
LEFT PRIMARY CRASH SENSOR
LEFT SIDE MARKER LAMP
LOW PITCH HORN
MASS AIR FLOW SENSOR
OCTANE ADJUST SHORTING BAR
RIGHT FRONT WHEEL 4 WHEEL ANTI-LOCK BRAKE SYSTEM SENSOR
RIGHT PRIMARY CRASH SENSOR
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
STARTER MOTOR
THROTTLE POSITION SENSOR
VAPOR MANAGEMENT VALVE
WASHER PUMP ASSEMBLY
