Test B

PINPOINT TEST B: MANUAL SWITCH DOES NOT MOVE THE ADJUSTABLE PEDALS - MEMORY IS FUNCTIONAL

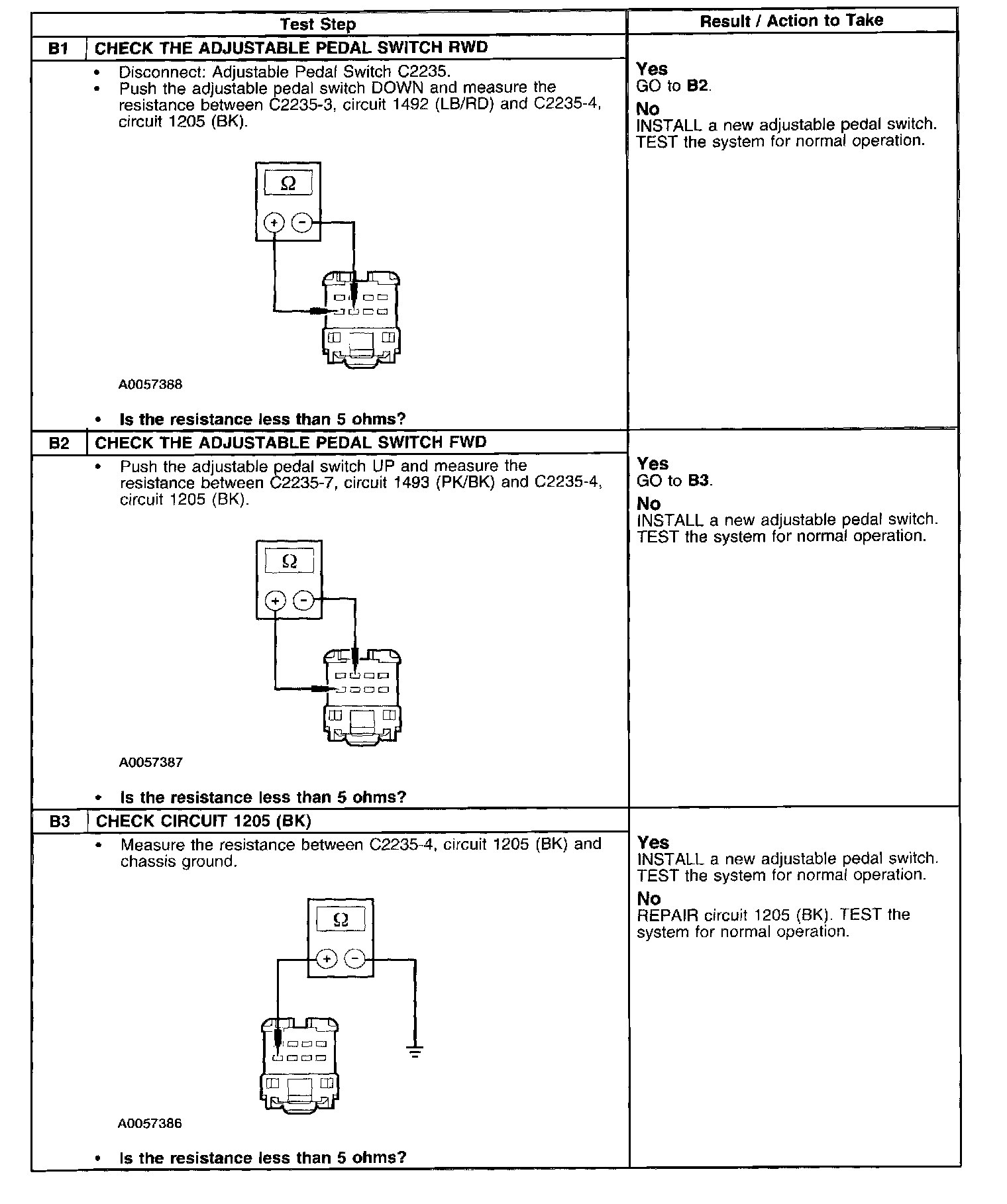

Test B1-B3:

Normal Operation
The manual switch for the adjustable pedals receives power from the Driver Seat Module (DSM) at all times through circuit 1492 (LB/RD) and circuit 1493 (PK/BK). The switch receives ground through circuit 1205 (BK). Pushing the switch upward closes circuit 1493 (PK/BK) and the adjustable pedal motor moves the pedals toward the driver. Pushing the switch downward closes circuit 1492 (LB/RD) and the adjustable pedal motor moves the pedals away from the driver.

Possible Causes
^ Adjustable pedal switch
^ Circuit 1205 (BK)
