Lincoln Truck
>>
2003
>>
Aviator 2WD V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>

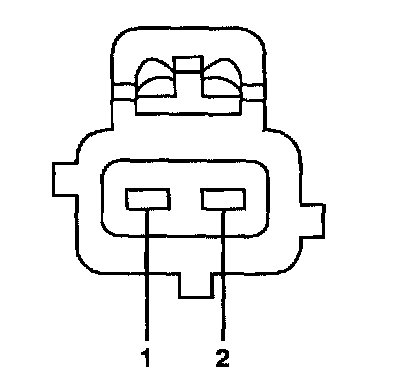

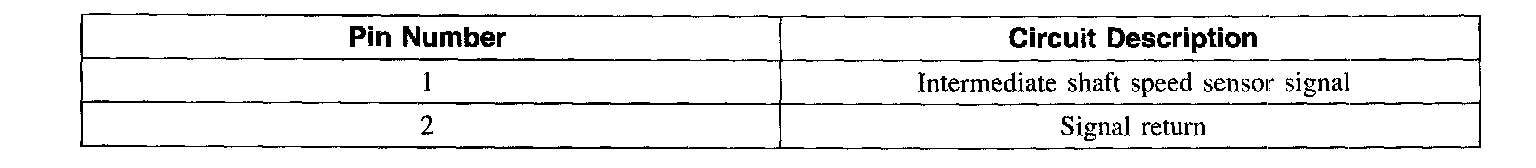

Intermediate Shaft Speed Sensor Harness Connector
Intermediate Shaft Speed Sensor Harness Connector
Intermediate Shaft Speed Sensor Harness Connector
Part 1 Of 2:
Part 2 Of 2:
