Climate Control Assembly
CLIMATE CONTROL ASSEMBLYREMOVAL

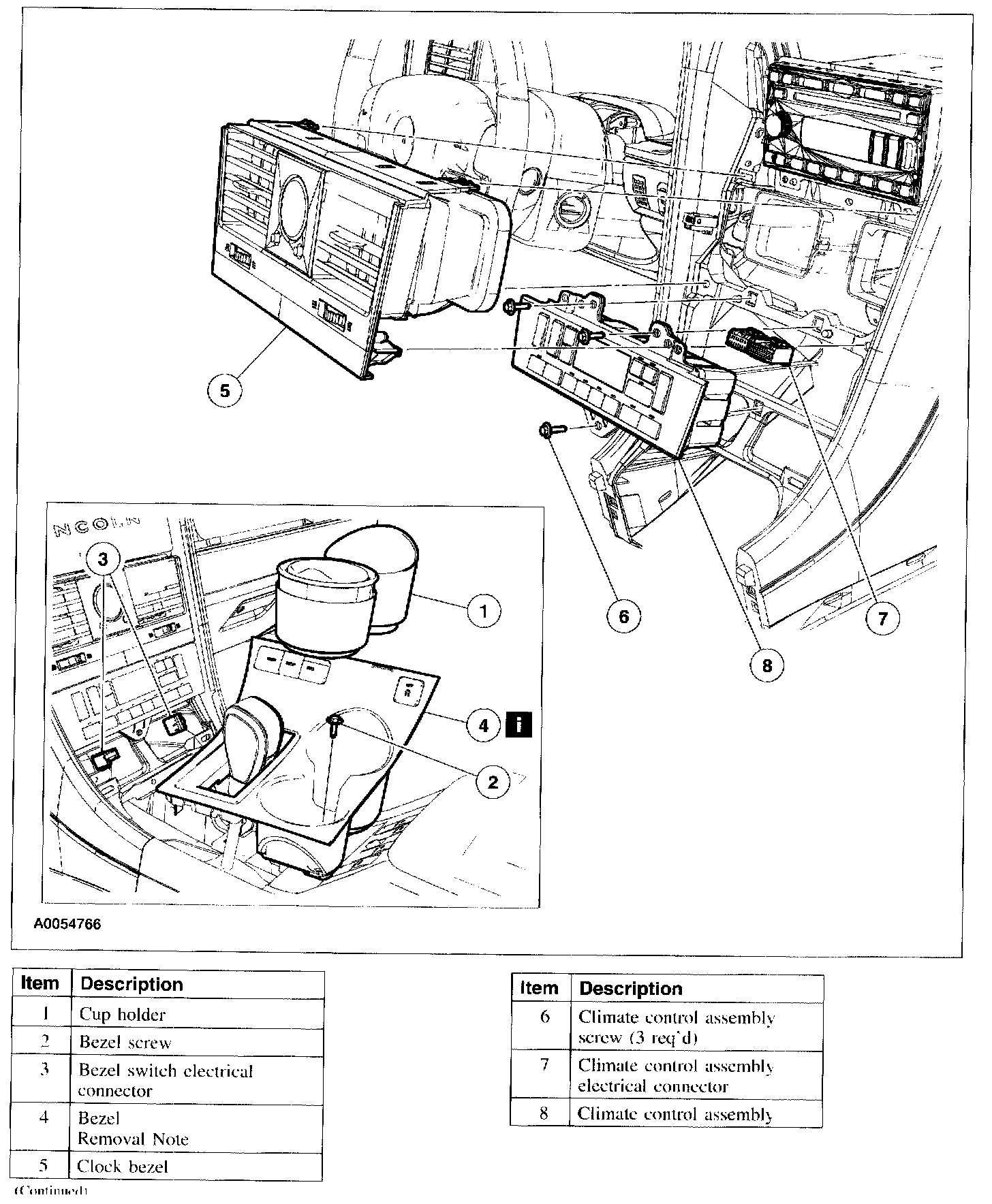

1. Remove the components in the order indicated in the illustration and table.
Item 4: Bezel Removal Note
1. Rotate the bezel to gain access to the lower climate control assembly screw.
INSTALLATION
1. To install reverse the removal procedure.
