Symptom Related Diagnostic Procedures

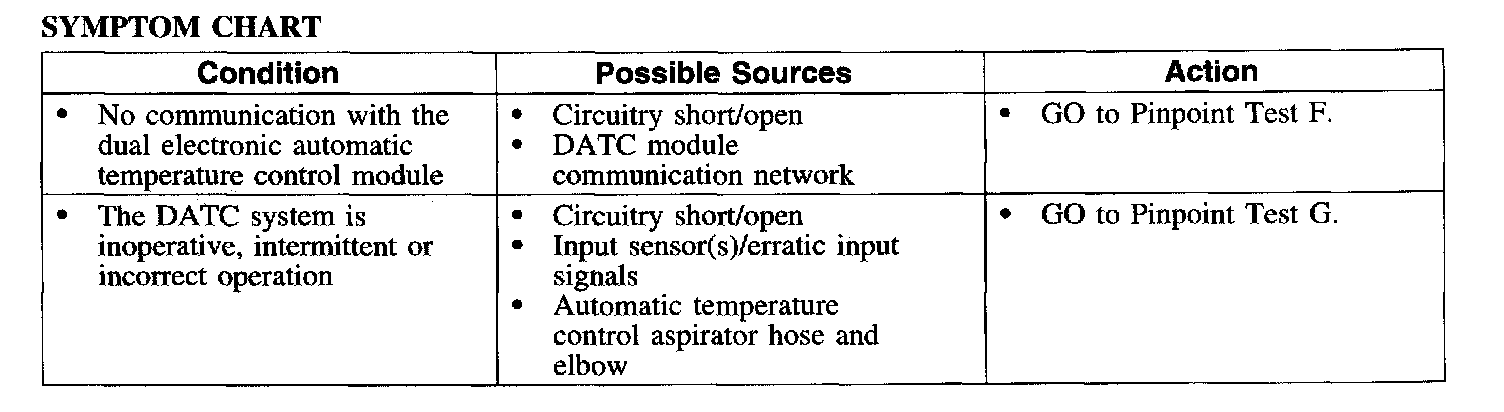

Symptom Chart , Part 1:

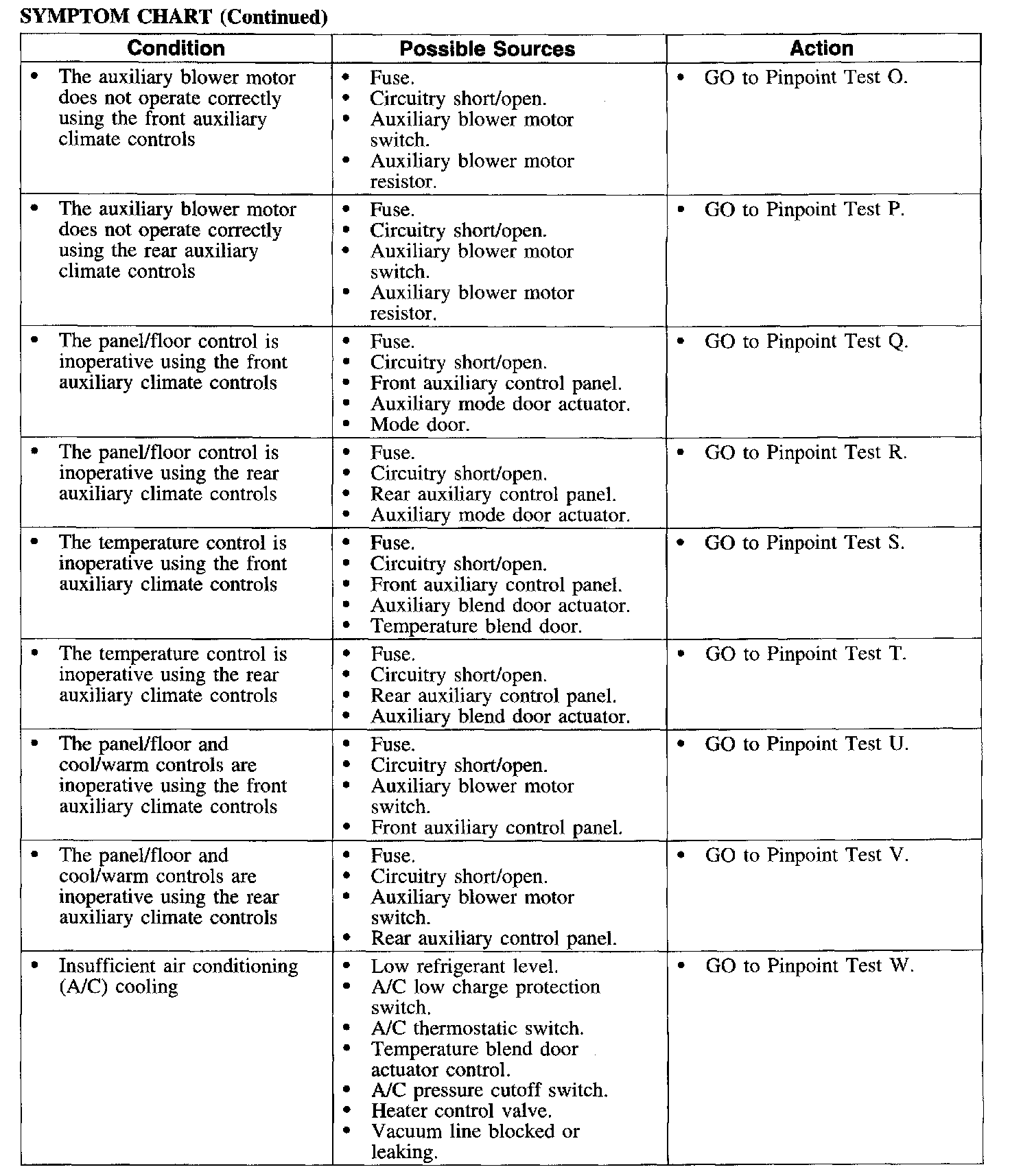

Symptom Chart , Part 2:

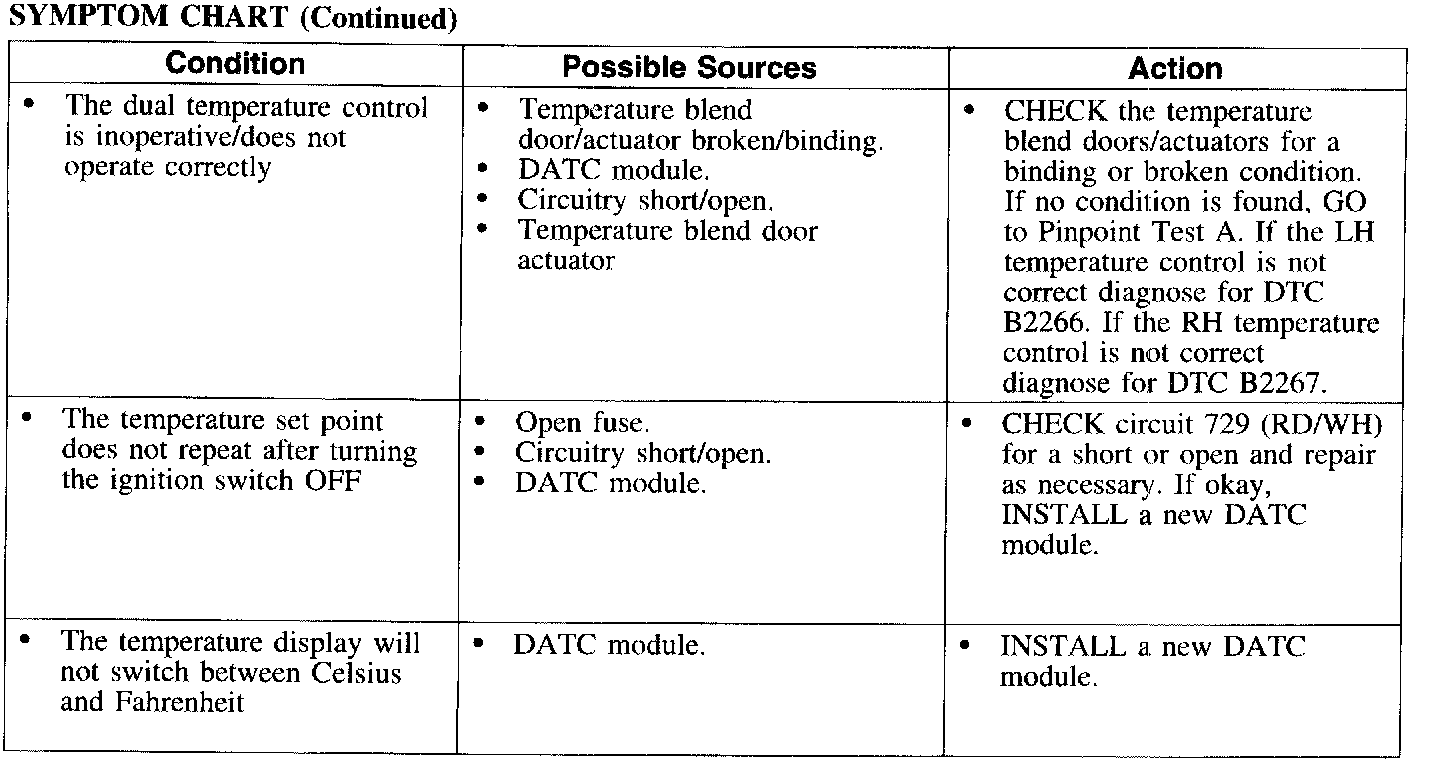

Symptom Chart , Part 3:

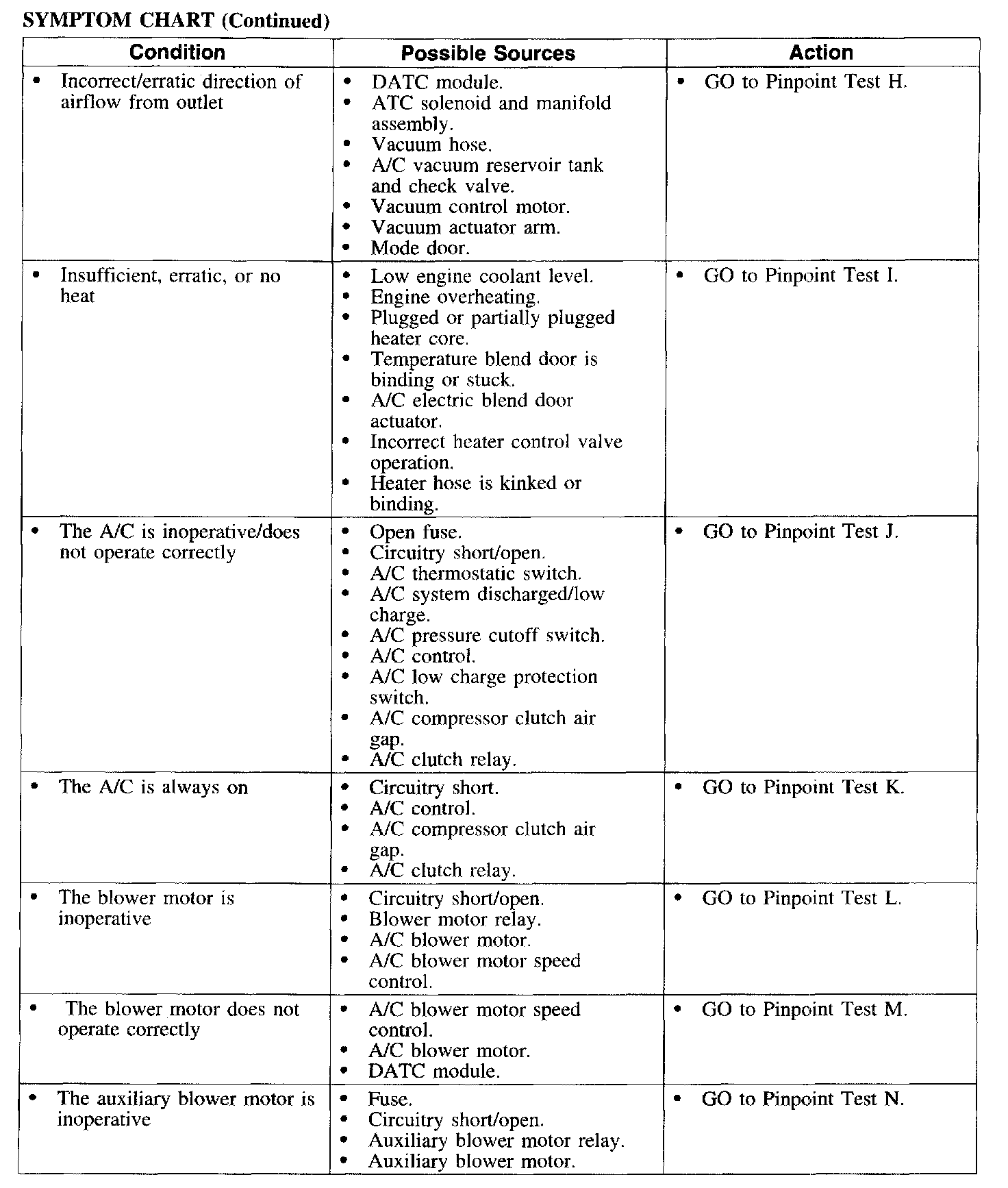

Symptom Chart , Part 4:
