Test X

PINPOINT TEST X: THE SPEED DEPENDENT INTERVAL MODE DOES NOT OPERATE CORRECTLY

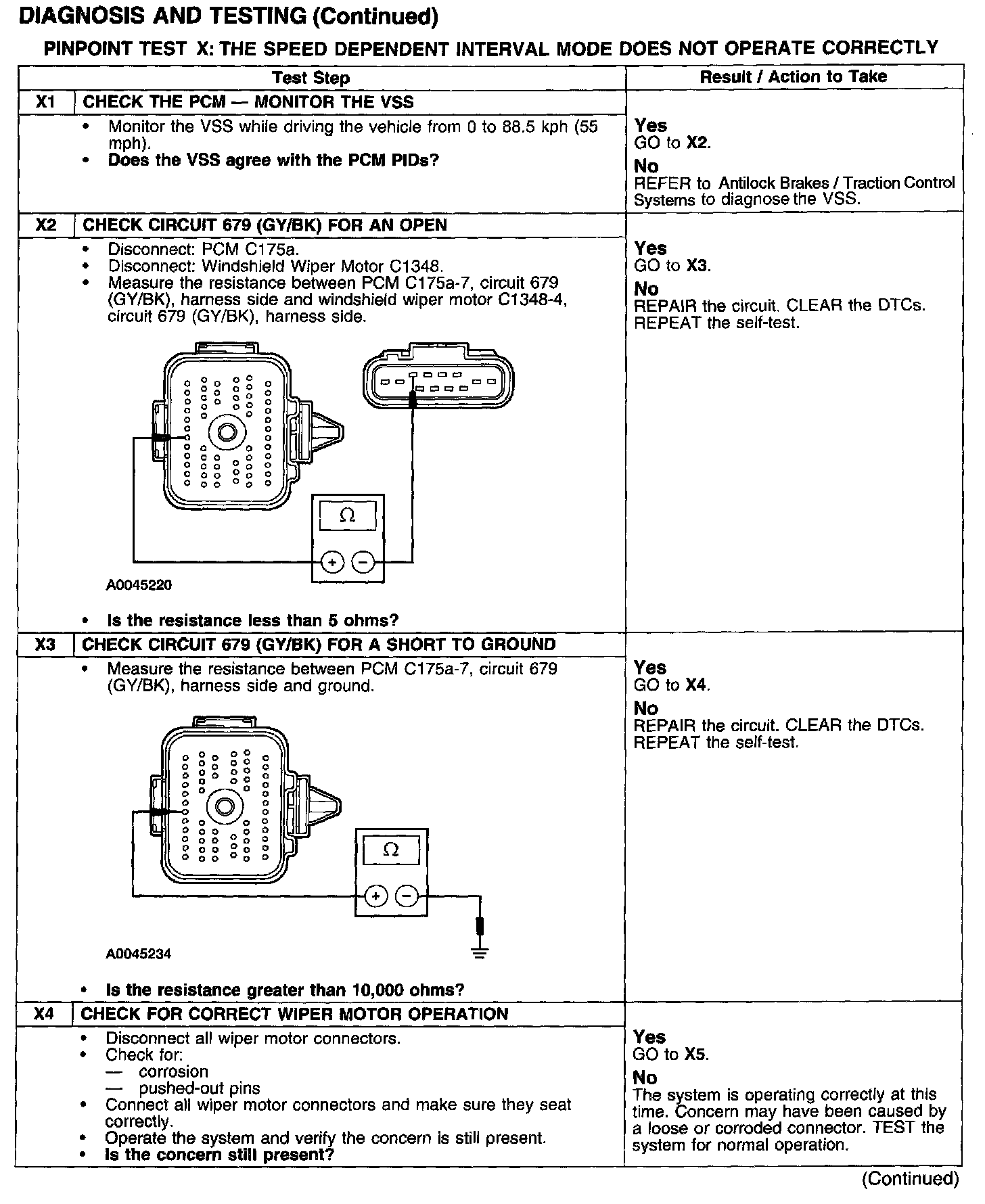

Test X1-X4:

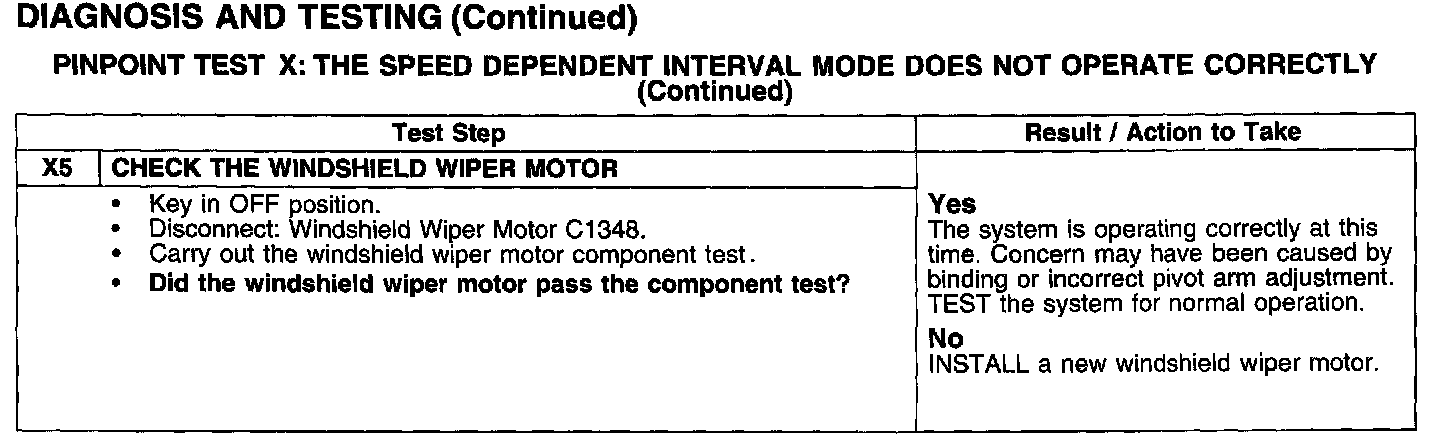

Test X5:

Normal Operation
Under normal operation the wiper motor receives input from the PCM through circuit 679 (GY/BK) with vehicle speed information. The wiper motor electronics then determine the speed of the wiper motor.

Possible Causes
- Open or short to ground in circuit 679 (GY/BK).
- Inoperative vehicle speed sensor (VSS).
- Inoperative wiper motor.
