AUXILIARY CLIMATE CONTROL ASSEMBLY - FRONT







Removal and Installation

All vehicles







1. NOTE: Vehicle with moonroof shown, vehicle without moonroof similar.

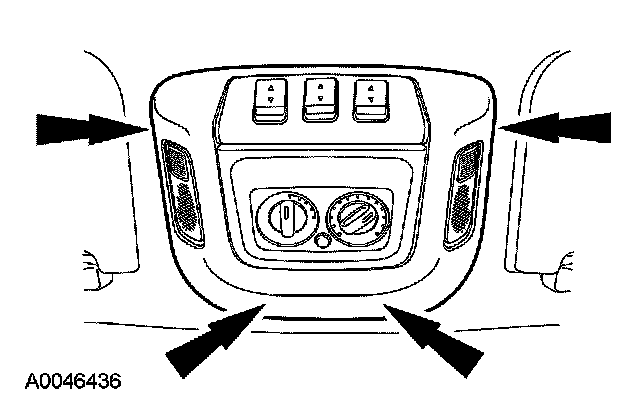

Disengage the clips and remove the overhead console.
- Disconnect the electrical connectors.

Vehicles with moonroof

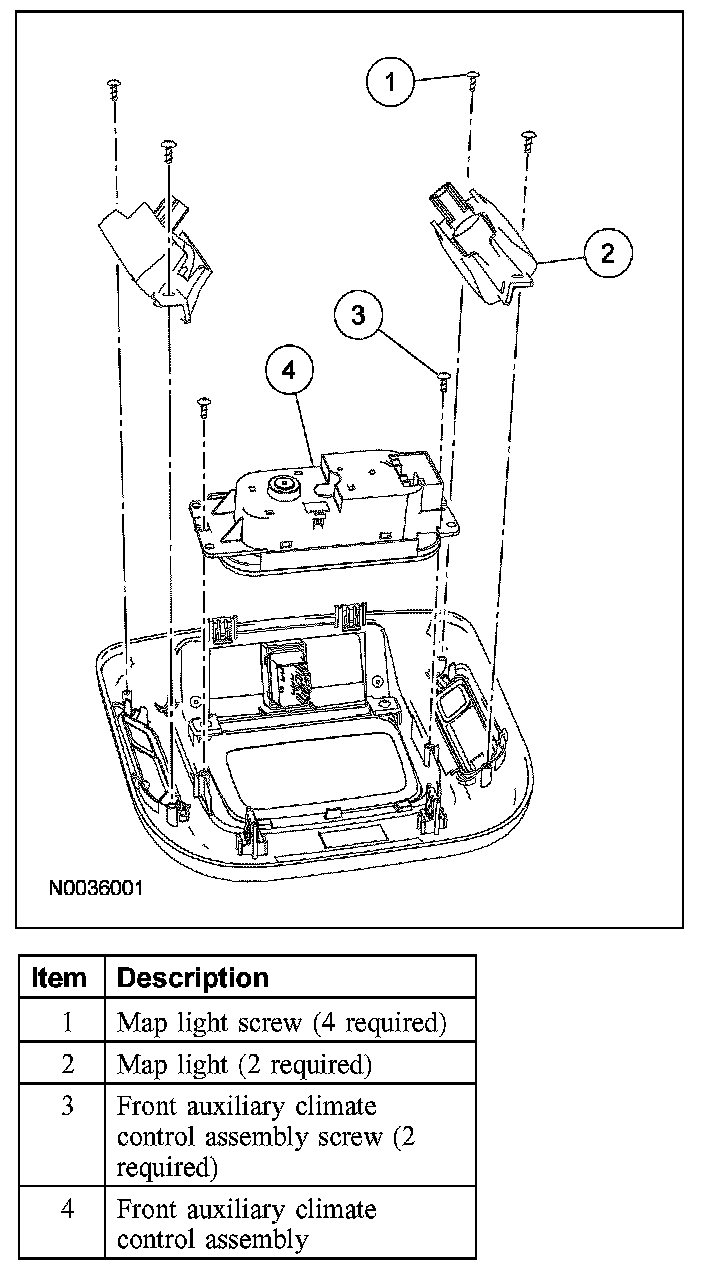

2. Remove the 4 map light screws.
3. Remove the 2 map lights.

All vehicles

4. NOTE: Vehicle with moonroof shown, vehicle without moonroof similar.

Remove the 2 front auxiliary climate control assembly screws.

5. Remove the front auxiliary climate control assembly.
6. To install, reverse the removal procedure.
