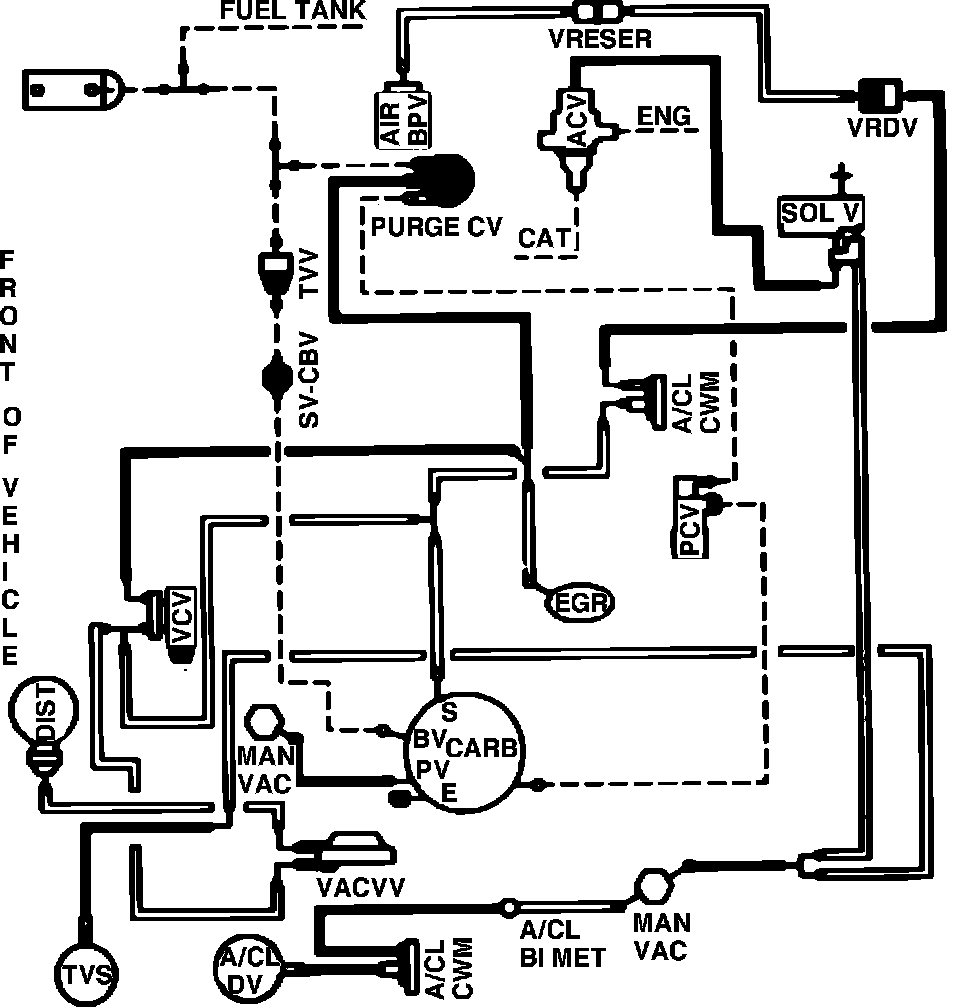

Fig. 53 Calib. Code 2-14D-R0 Federal, W/O.D. Exc. High Alt.
Fig. 53 Calib. Code 2-14D-R0 Federal, W/O.D. Exc. High Alt.
Vacuum hose routing:
