Home >> Lincoln >> 1989 >> Town Car V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats

Seats

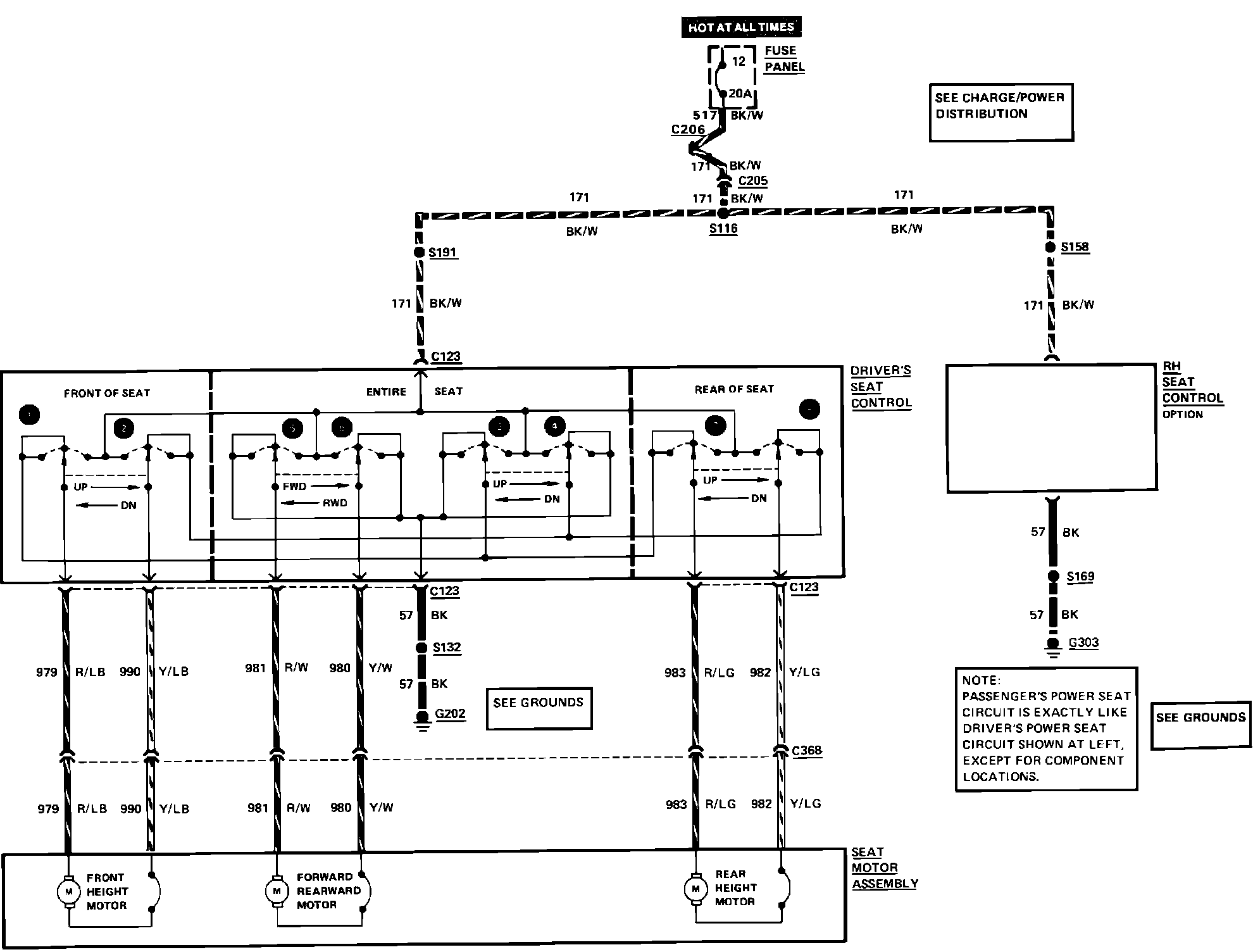

Power Seats Wiring Circuit:
