Engine Controls

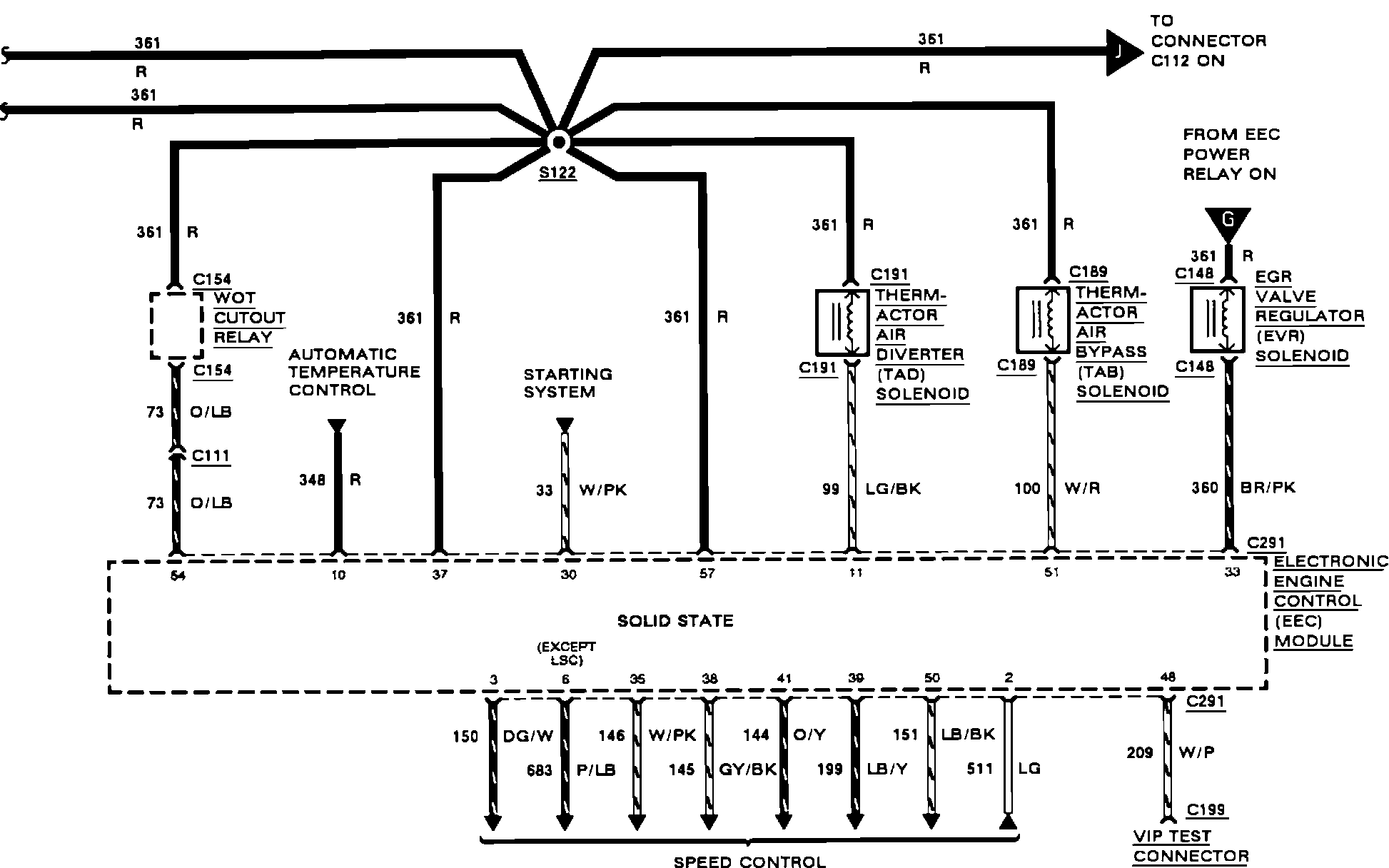

Electronic Engine Control (EEC IV):

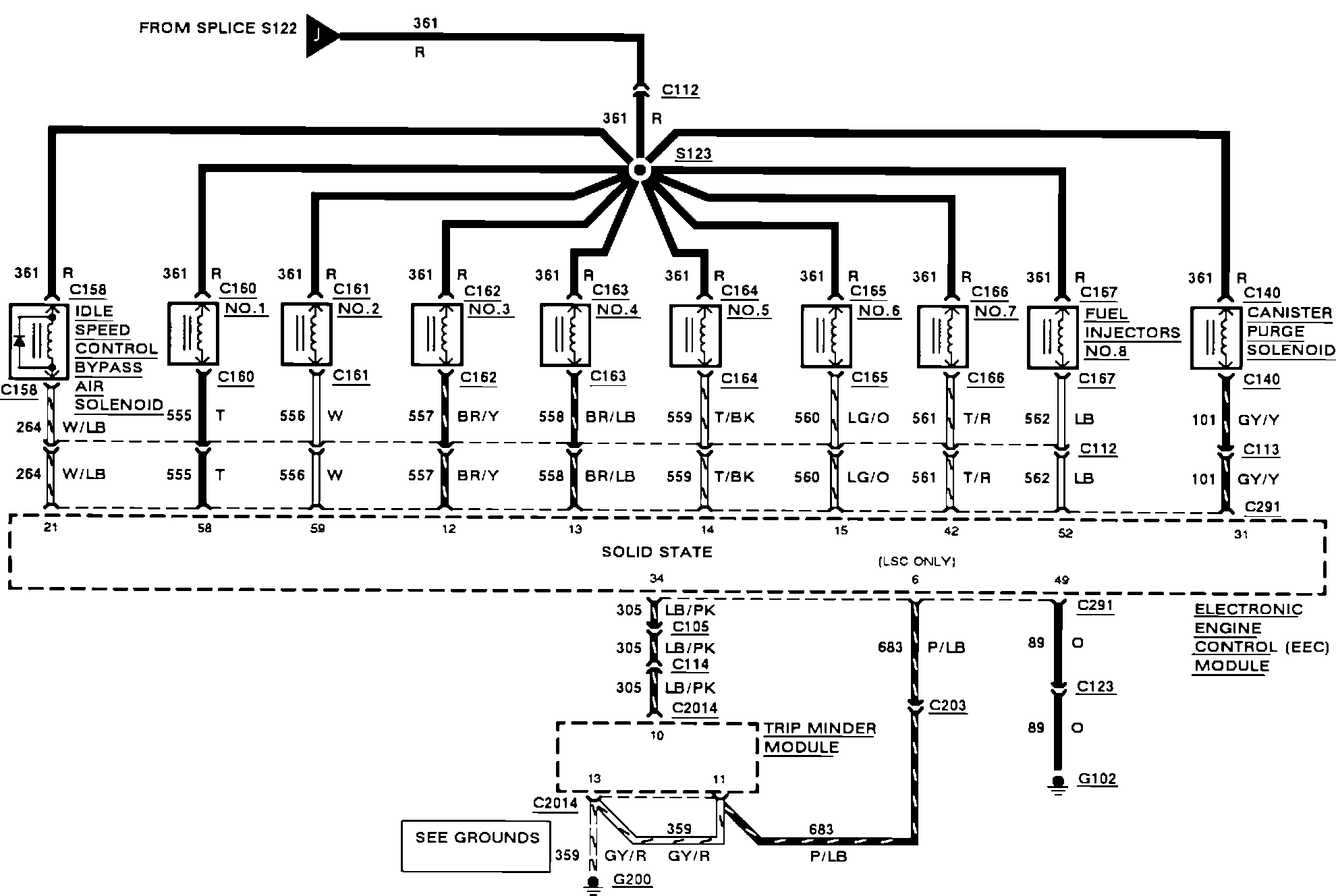

Electronic Engine Control (EEC IV):

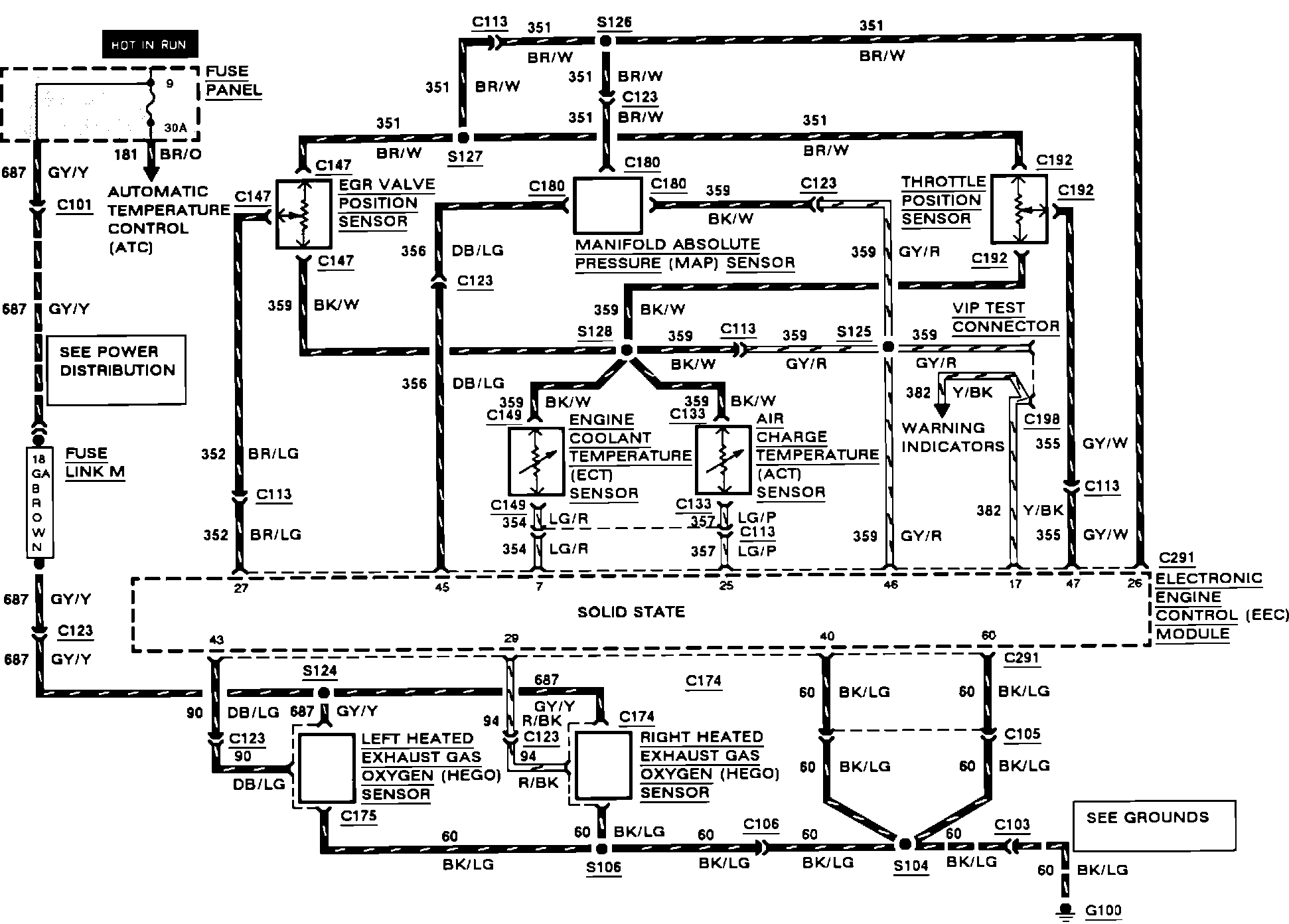

Electronic Engine Control (EEC IV):

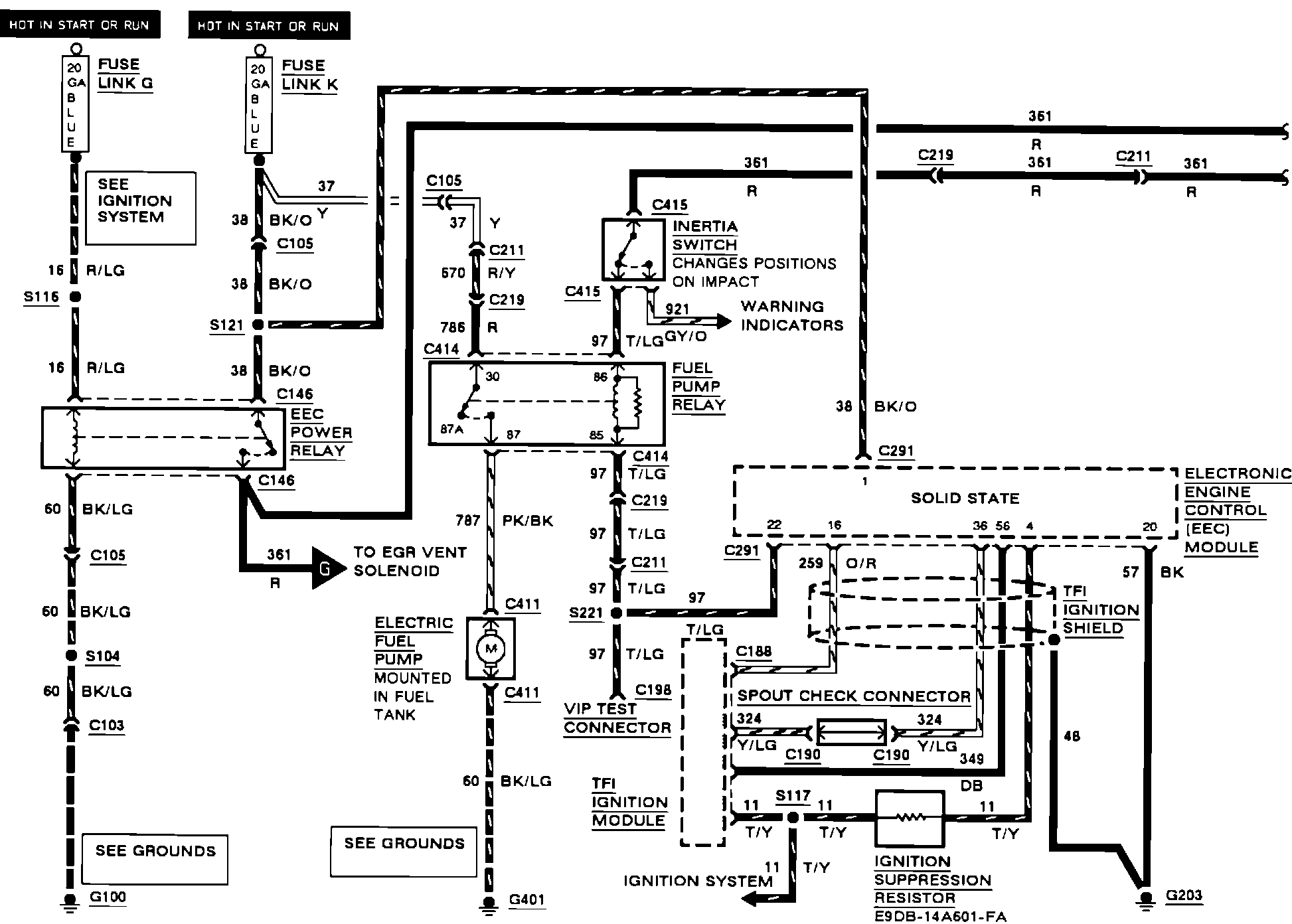

Electronic Engine Control (EEC IV):
