Computers and Control Systems: Locations

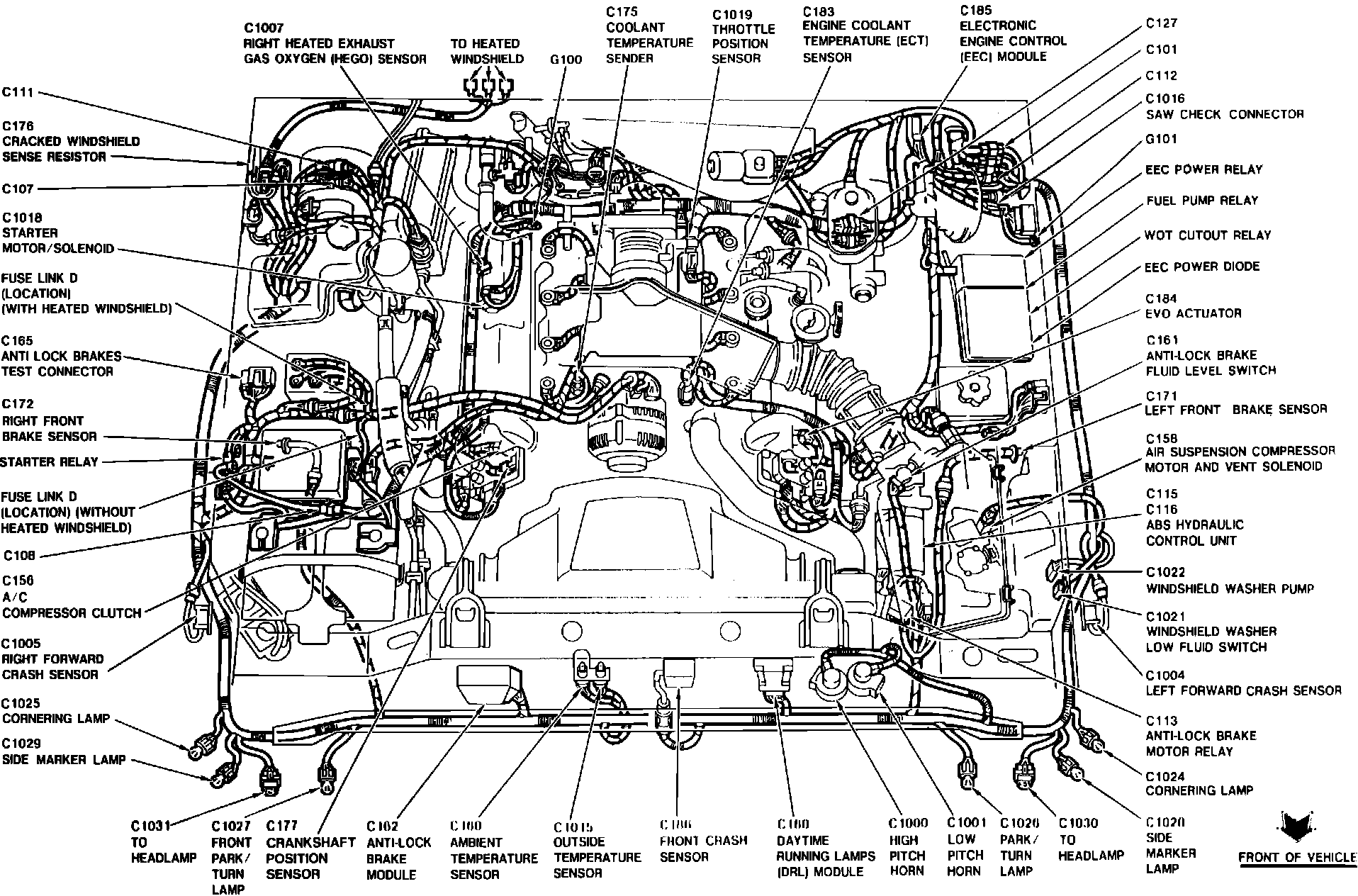

Engine Compartment Components:

ABS HYDRAULIC CONTROL UNIT
AIR SUSPENSION COMPRESSOR MOTOR AND VENT SOLENOID
AMBIENT TEMPERATURE SENSOR
ANTI LOCK BRAKES TEST CONNECTOR
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK BRAKE MODULE
ANTI-LOCK BRAKE MOTOR RELAY
COOLANT TEMPERATURE SENDER
CRACKED WINDSHIELD SENSE RESISTOR
CRANKSHAFT POSITION SENSOR
DAYTIME RUNNING LAMPS (DRL) MODULE
EEC POWER DIODE
EEC POWER RELAY
ELECTRONIC ENGINE CONTROL MODULE (ECA)
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
EVO ACTUATOR
FRONT CRASH SENSOR
FUEL PUMP RELAY
LEFT FORWARD CRASH SENSOR
LEFT FRONT BRAKE SENSOR
OUTSIDE TEMPERATURE SENSOR
RIGHT FORWARD CRASH SENSOR
RIGHT FRONT BRAKE SENSOR
RIGHT HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
SAW CHECK CONNECTOR
THROTTLE POSITION SENSOR
WINDSHIELD WASHER LOW FLUID LEVEL SWITCH
WINDSHIELD WASHER PUMP
WOT CUTOUT RELAY

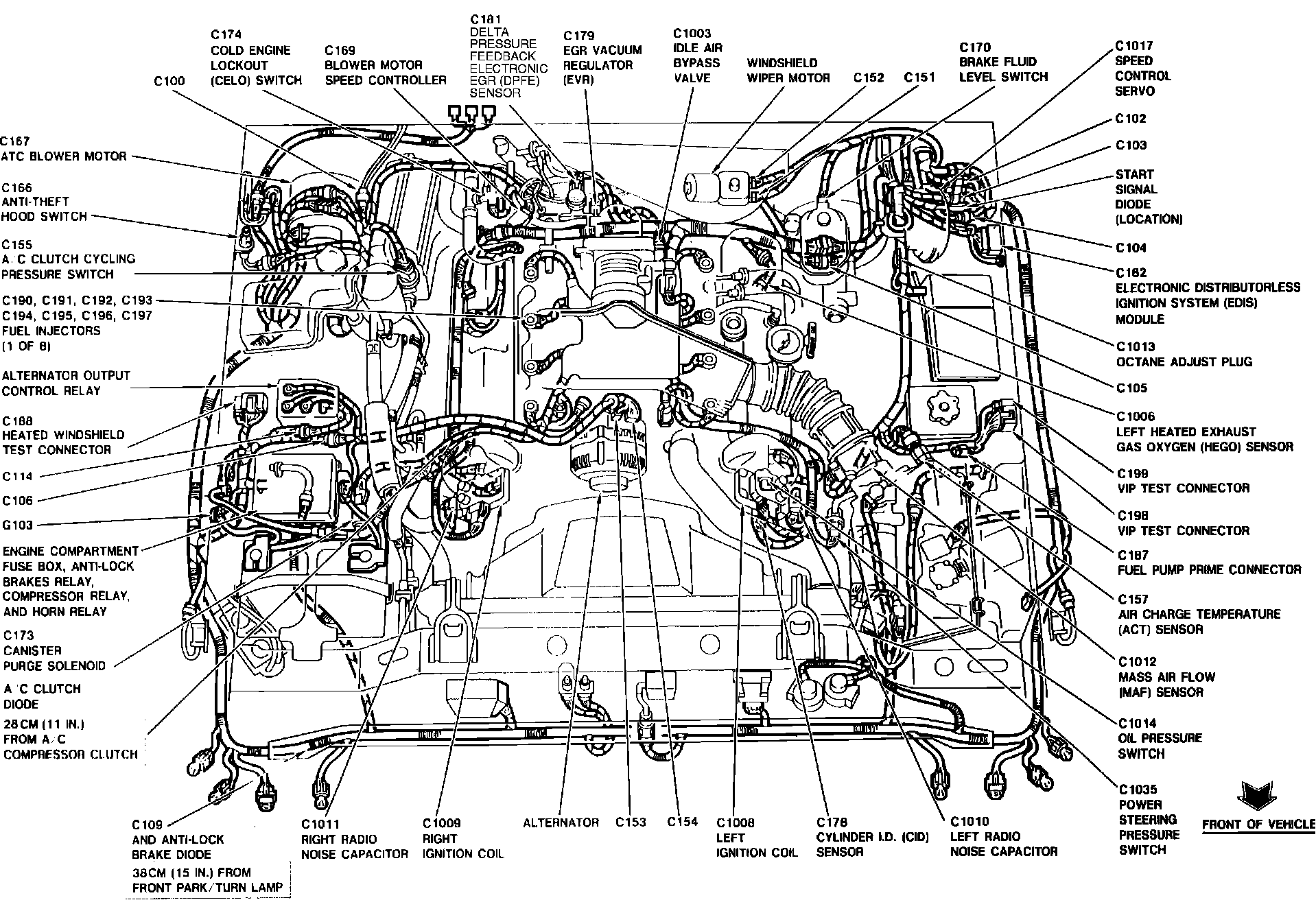

Engine Compartment Components:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH DIODE
AIR CHARGE TEMPERATURE (ACT) SENSOR
ALTERNATOR
ALTERNATOR OUTPUT CONTROL RELAY
ANTI-LOCK BRAKE DIODE
ANTI-LOCK BRAKES RELAY
ANTI-THEFT HOOD SWITCH
ATC BLOWER MOTOR
BLOWER MOTOR SPEED CONTROLLER
BRAKE FLUID LEVEL SWITCH
CANISTER PURGE SOLENOID
COLD ENGINE LOCKOUT (CELO) SWITCH
COMPRESSOR RELAY
CYLINDER ID SENSOR
EGR VACUUM REGULATOR (EVR)
EGR VALVE POSITION SENSOR
ELECTRONIC DISTRIBUTORLESS IGNITION SYSTEM (EDIS) MODULE
ENGINE COMPARTMENT FUSE BOX
FUEL INJECTORS
FUEL PUMP PRIME CONNECTOR
HEATED WINDSHIELD TEST CONNECTOR
HORN RELAY
IDLE AIR BYPASS VALVE
LEFT HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
LEFT IGNITION COIL
LEFT RADIO NOISE CAPACITOR
MASS AIR FLOW (MAF) SENSOR
OCTANE ADJUST PLUG
OIL PRESSURE SWITCH
POWER STEERING PRESSURE SWITCH
RIGHT IGNITION COIL
RIGHT RADIO NOISE CAPACITOR
START SIGNAL DIODE
VIP (DIAGNOSTIC) CONNECTOR
WINDSHIELD WIPER MOTOR
