Lincoln
>>
1992
>>
Mark VII V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trip Computer
>>
Trip Minder Module
Trip Minder Module

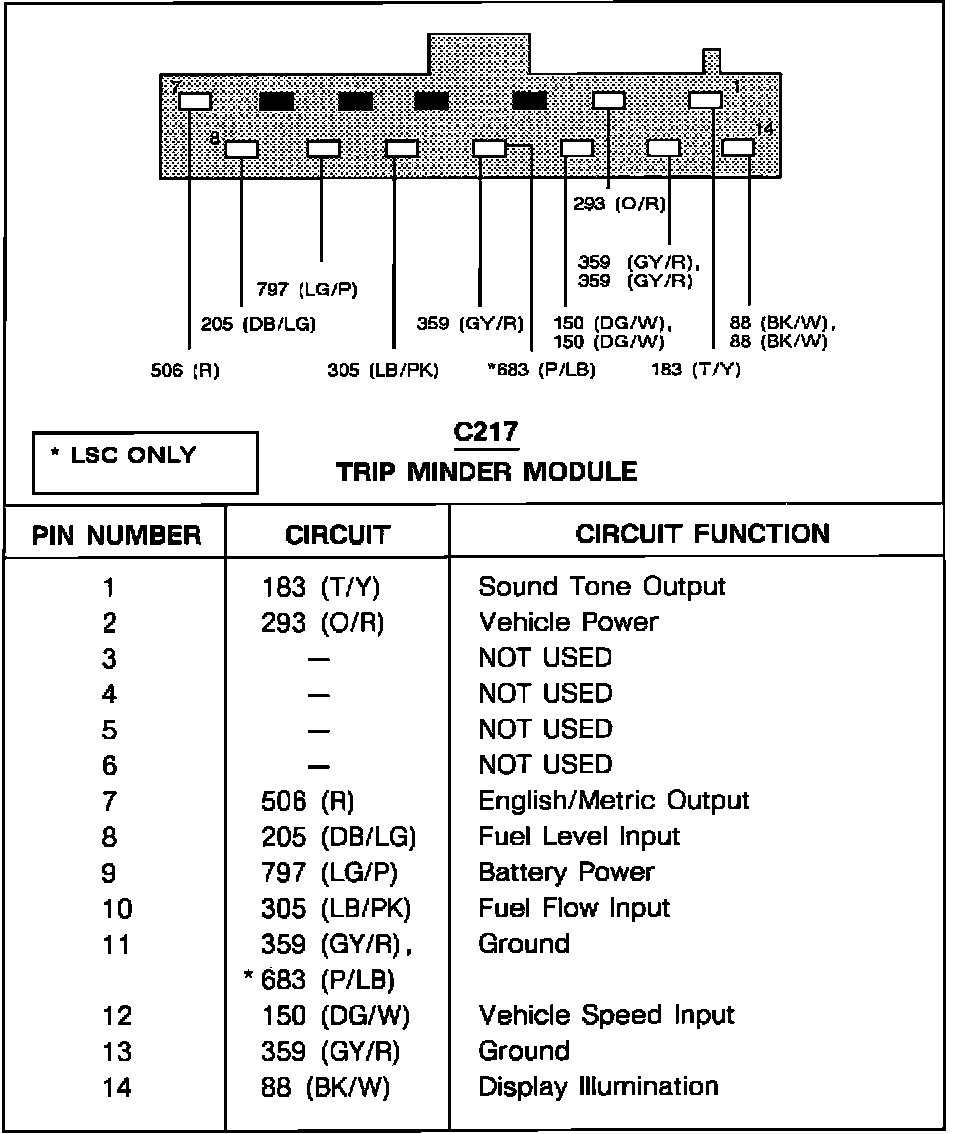

Connector Faces/Pinout Charts:
