Instrument Panel View

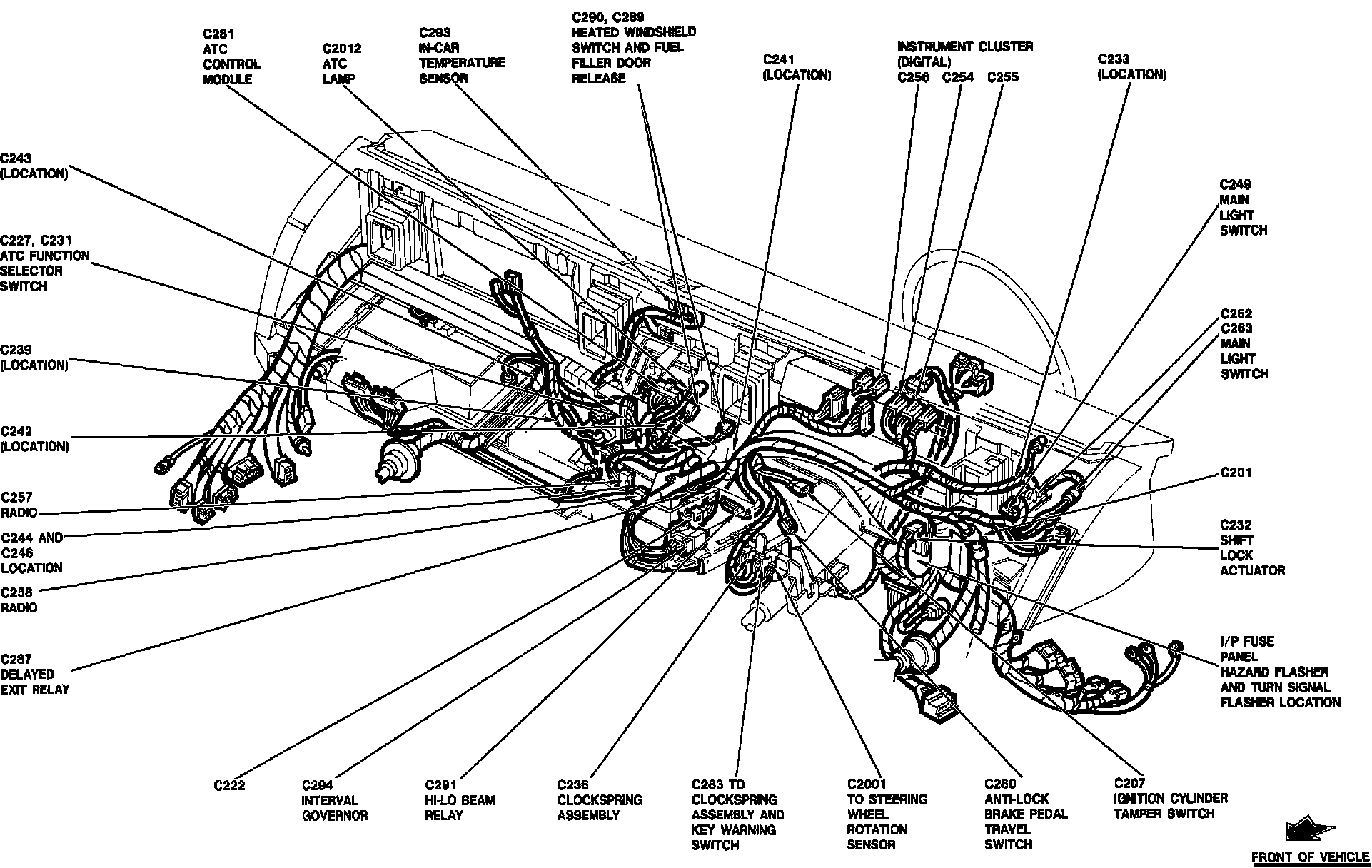

Component Location:

ANTI-LOCK BRAKE PEDAL TRAVEL SWITCH
ATC CONTROL MODULE
ATC FUNCTION SELECTOR SWITCH
ATC LAMP
CLOCKSPRING ASSEMBLY
DELAYED EXIT RELAY
FUEL FILLER DOOR RELEASE
HAZARD FLASHER LOCATION
HEATED WINDSHIELD SWITCH
HI-LO BEAM RELAY
IGNITION CYLINDER TAMPER SWITCH
IN-CAR TEMPERATURE SENSOR
INSTRUMENT CLUSTER
INTERVAL GOVERNOR
KEY WARNING SWITCH
MAIN LIGHT SWITCH
RADIO
STEERING WHEEL ROTATION SENSOR
SHIFT LOCK ACTUATOR
TURN SIGNAL FLASHER LOCATION

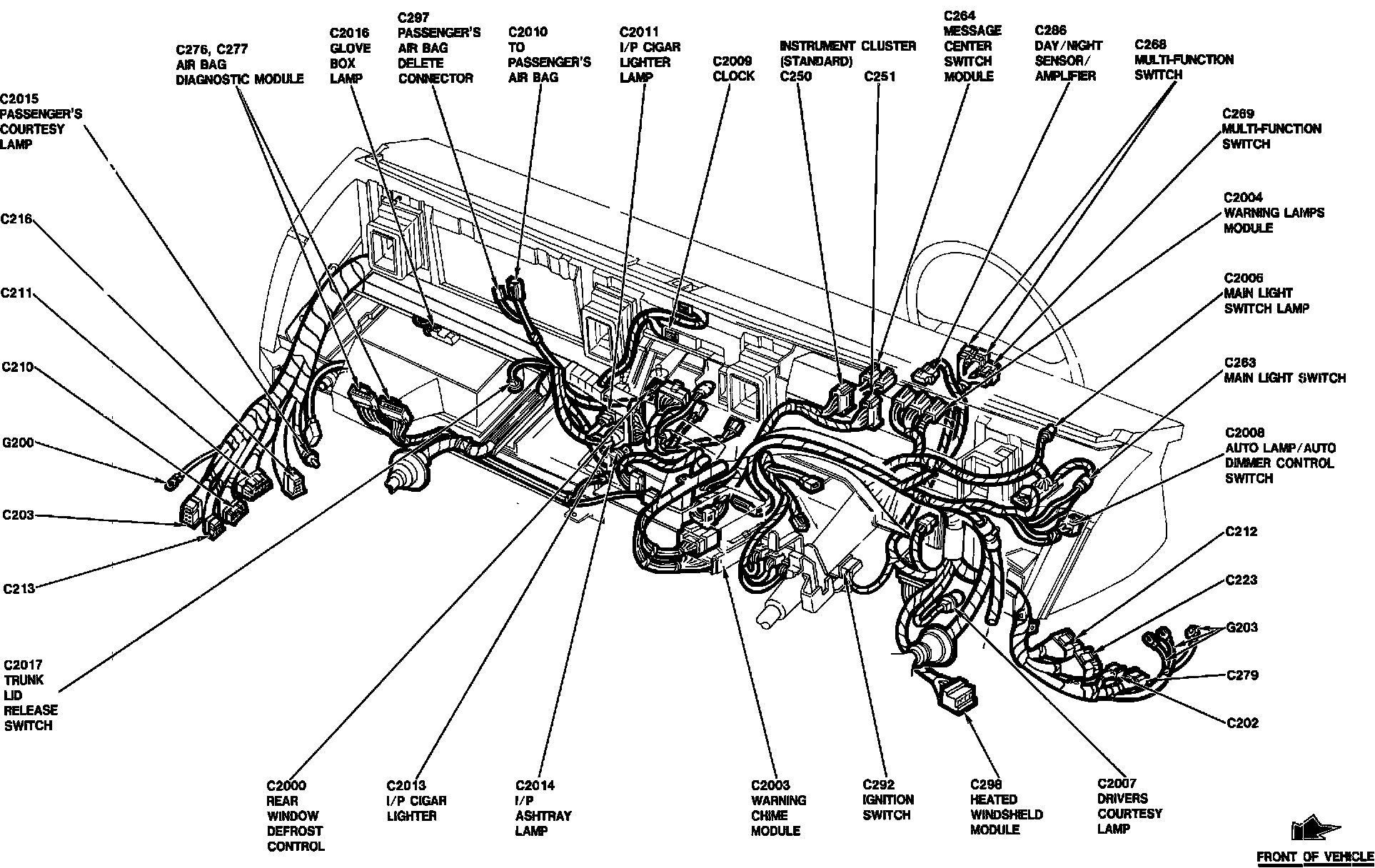

Component Location:

AIR BAG DIAGNOSTIC MODULE
AUTO LAMP/AUTO DIMMER CONTROL SWITCH
CLOCK
COURTESY LAMP
DAY/NIGHT SENSOR/AMPLIFIER
GLOVE BOX LAMP
HEATED WINDSHIELD MODULE
IGNITION SWITCH
I/P ASHTRAY LAMP
I/P CIGAR LIGHTER
I/P CIGAR LIGHTER LAMP
INSTRUMENT CLUSTER
MAIN LIGHT SWITCH
MESSAGE CENTER SWITCH MODULE
MULTI-FUNCTION SWITCH
PASSENGER'S AIR BAG DELETE CONNECTOR
REAR WINDOW DEFROST CONTROL
TRUNK LID RELEASE SWITCH
WARNING LAMPS MODULE
WARNING MODULE
