Maintenance Required Lamp/Indicator: Service and Repair

OIL CHANGE RESET

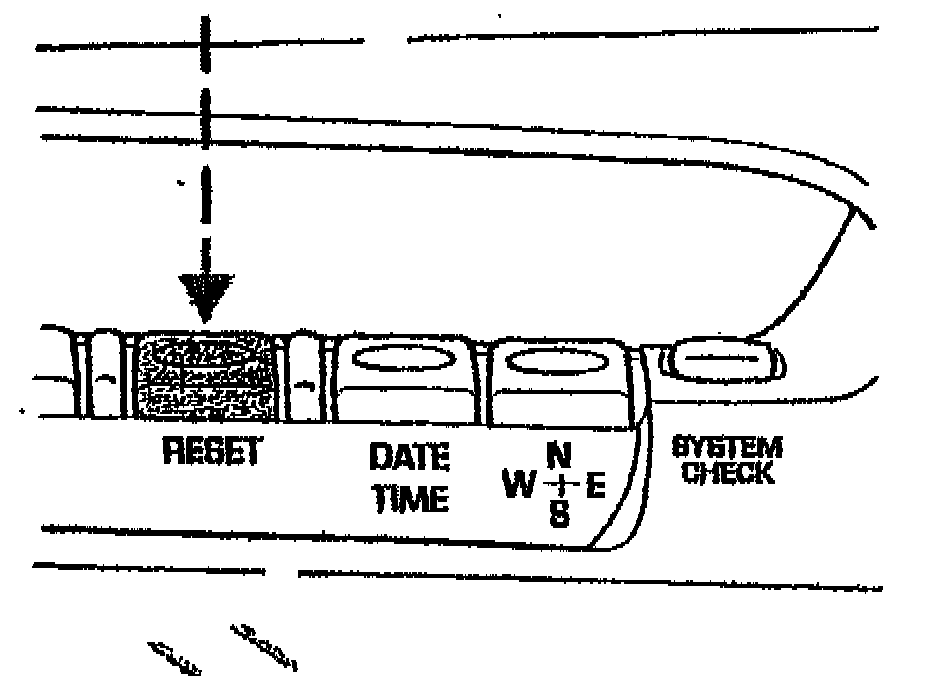

Reset Button:

This feature allows you to reset the oil monitoring system to 100 percent after each oil change. To reset, the RESET control must be pressed and held for 5 seconds while the display counts down. After a successful reset, the message center will display "OIL LIFE RESET TO 100%." To ensure accurate oil life indicators, perform the reset procedure only after an oil change.

You can also set a personalized oil reset percentage, which allows you to establish a smaller oil change interval.

1. Press and hold the RESET control from the VEHICLE SETTINGS menu OIL CHANGE RESET screen.

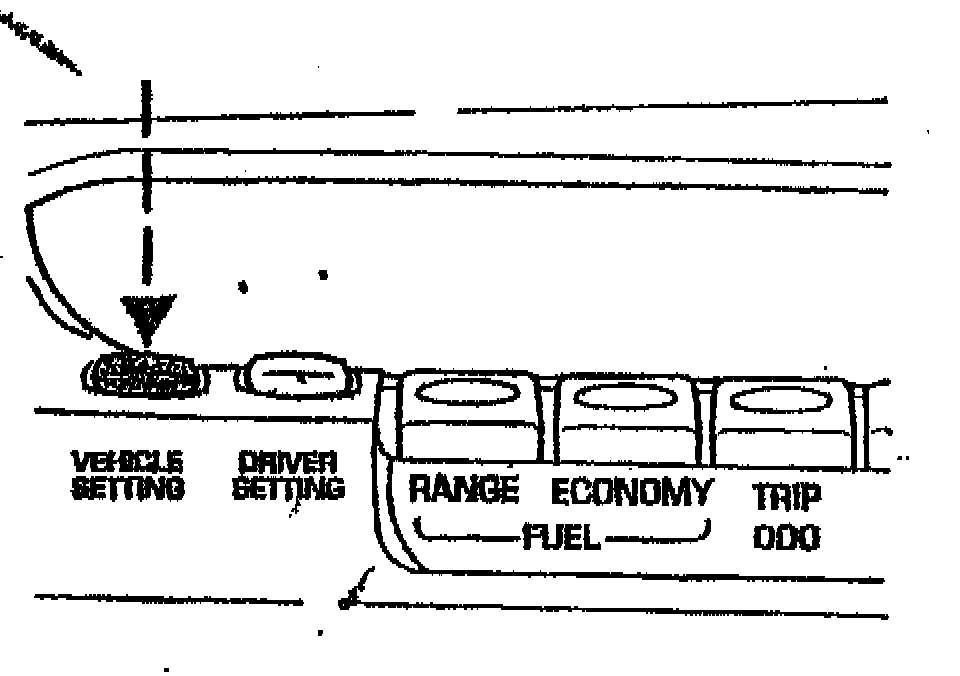

Vehicle Setting Button:

2. While holding the RESET control as the display counts down the seconds to an oil change reset, press the VEHICLE SETTINGS control. The display will read START OIL LIFE AT XXX%, where XXX is the currently selected oil life percentage. Release both controls.

Reset Button:

3. Press the RESET control to obtain the desired personalized oil change percentage. Your choices are 100%, 90%, 80%, 70%, 60%, 50%, 40% and 30%.

Vehicle Setting Button:

4. Press the VEHICLE SETTING control to complete the procedure. A press of any control other than RESET or VEHICLE SETTING will abort the procedure and will not establish a new personalized oil reset percentage.

Your personalized oil change percentage will begin upon completion of your next OIL CHANGE RESET procedure. Refer to CHANGE 0IL SOON/OIL CHANGE REQUIRED for more information.
