Electronic Automatic Temperature Control Connector C1

Electronic Automatic Temperature Control Connector C1:

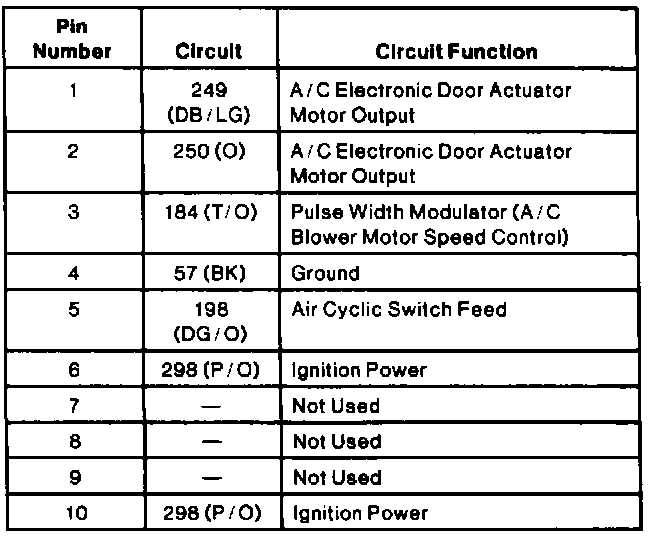

Electronic Automatic Temperature Control Connector C1 Terminal ID:

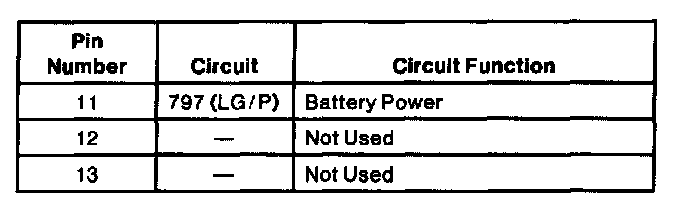

Electronic Automatic Temperature Control Connector C1 Terminal ID:
