Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1994
>>
Mark VIII V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

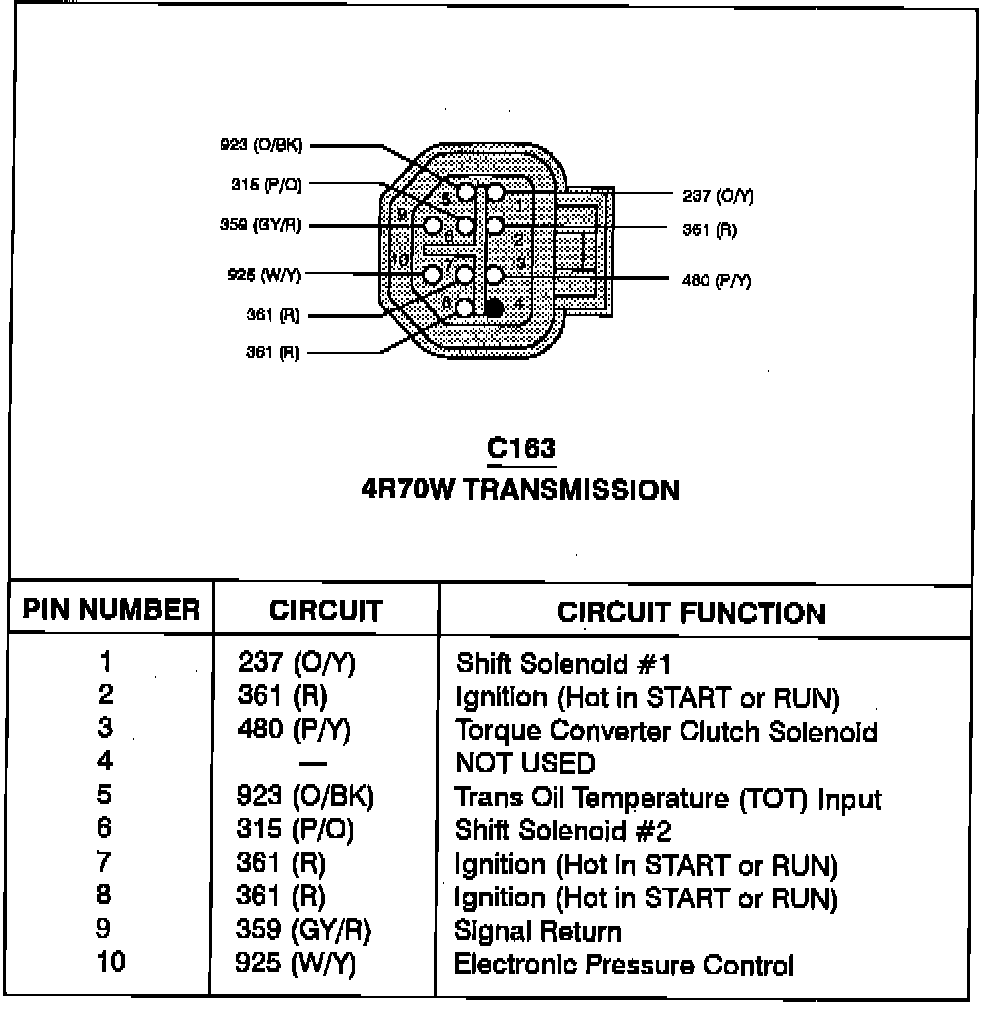

Electronic Automatic (4R70W) Transmission:
