Engine Views

Component Locations:

A/C HIGH PRESSURE CUTOUT SWITCH
ABS HYDRAULIC CONTROL UNIT
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK BRAKE MOTOR RELAY
BATTERY NEGATIVE POST
BATTERY POSITIVE POST
CRANKSHAFT POSITION (CKP) SENSOR
CYLINDER IDENTIFICATION (CID) SENSOR
DATA LINK CONNECTOR (DLC)
DELTA PRESSURE FEEDBACK ELECTRONIC EGR (DPFE) SENSOR
EGR VACUUM REGULATOR (EVR)
ENGINE COMPARTMENT FUSE BOX
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
FUEL PUMP RELAY
FUSE LINK D
IDLE AIR CONTROL (IAC) VALVE
IGNITION CONTROL MODULE (ICM)
INTAKE AIR TEMPERATURE (IAT) SENSOR
LEFT HEATED OXYGEN SENSOR (HO2S)
LEFT IGNITION COIL
LEFT RADIO NOISE CAPACITOR
OCTANE ADJUST PLUG
PCM POWER DIODE
PCM POWER RELAY
POWERTRAIN CONTROL MODULE (PCM)
RELAY CENTER
RIGHT HEATED OXYGEN SENSOR
RIGHT IGNITION COIL
RIGHT RADIO NOISE CAPACITOR
SELF TEST INPUT (STI) CONNECTOR
SPOUT CHECK CONNECTOR
WOT CUTOUT RELAY

Component Locations:

A/C COMPRESSOR CLUTCH
A/C LOW PRESSURE CUT OUT SWITCH
ANTI-LOCK BRAKE RELAY
ANTI-THEFT HOOD SWITCH
BLOWER MOTOR SPEED CONTROLLER
COMPRESSOR RELAY
COOLANT TEMPERATURE SENDER
EATC BLOWER MOTOR
EVO ACTUATOR
HORN RELAY
INTEGRAL ALTERNATOR REGULATOR (IAR)
LEFT CORNERING LAMP
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
LEFT SIDE MARKER LAMP
MASS AIR FLOW (MAF) SENSOR
OIL PRESSURE SWITCH
RIGHT CORNERING LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
RIGHT SIDE MARKER LAMP
SPEED CONTROL AMPLIFIER
STARTER MOTOR/SOLENOID
THROTTLE POSITION (TP) SENSOR
WINDOW REGULATOR SAFETY RELAY

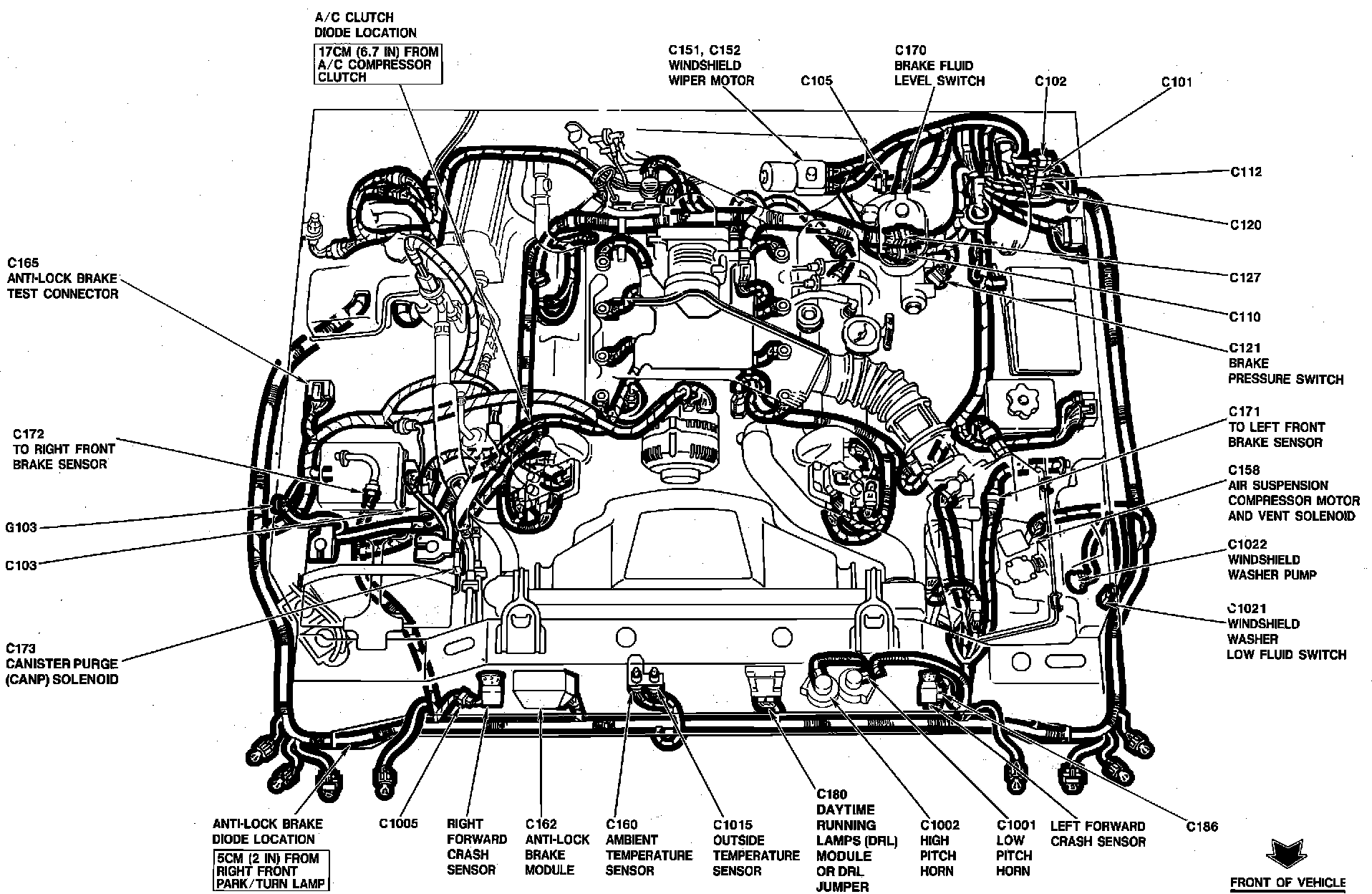

Component Locations:

A/C CLUTCH DIODE
AIR SUSPENSION COMPRESSOR MOTOR AND VENT SOLENOID
AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE DIODE
ANTI-LOCK BRAKE MODULE
ANTI-LOCK BRAKE TEST CONNECTOR
BRAKE FLUID LEVEL SWITCH
BRAKE PRESSURE SWITCH
CANISTER PURGE (CANP) SOLENOID
DAYTIME RUNNING LAMPS (DRL) MODULE OR DRL JUMPER
HIGH PITCH HORN
LEFT FORWARD CRASH SENSOR
LEFT FRONT BRAKE SENSOR
LOW PITCH HORN
OUTSIDE TEMPERATURE SENSOR
RIGHT FORWARD CRASH SENSOR
RIGHT FRONT BRAKE SENSOR
WINDSHIELD WASHER LOW FLUID SWITCH
WINDSHIELD WASHER PUMP
WINDSHIELD WIPER MOTOR
