Mirror Control

1. Remove screw retaining switch plate to driver side armrest.

2. Lift out front door trim panel finish panel and tilt to expose connector.

Trim Cover:

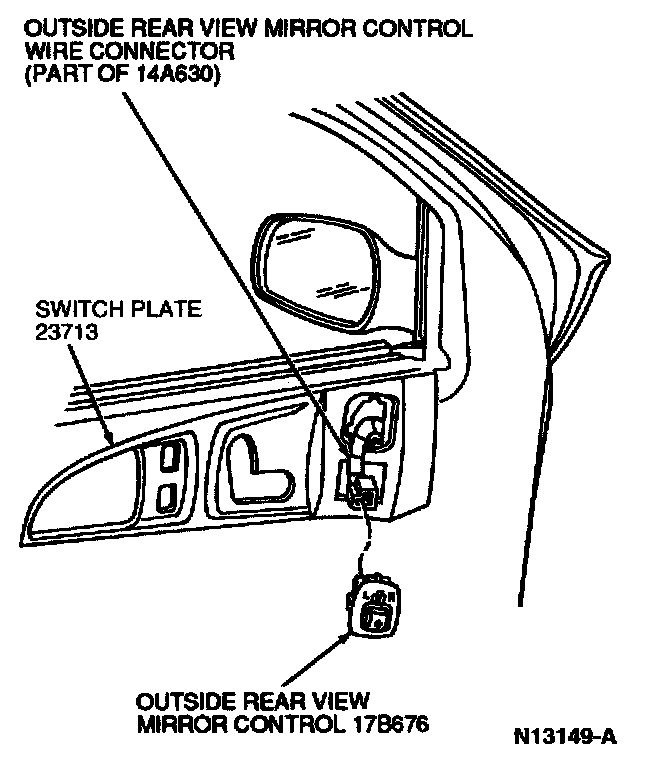

3. Remove outside rear view mirror control from switch plate (snaps out).

4. Disconnect wiring connector from switch.

5. To install, reverse Removal procedure.
