Power Seat Control Module: Locations

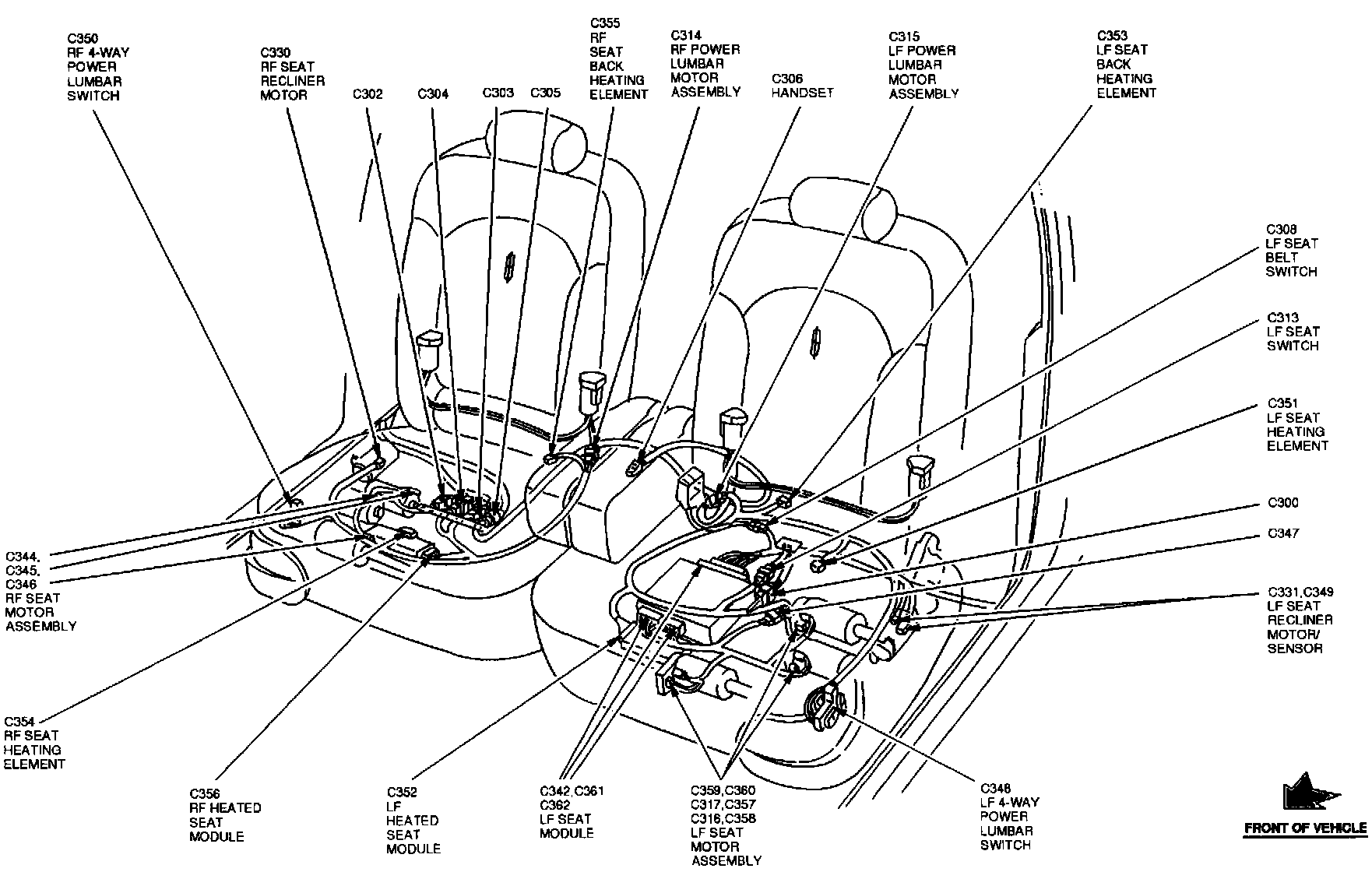

Front Seat Assemblies View:





The Left Front Seat Module is located under the LF seat.
