Home
>>
Lincoln
>>
1996
>>
Continental V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Cellular Phone Transceiver
Cellular Phone Transceiver

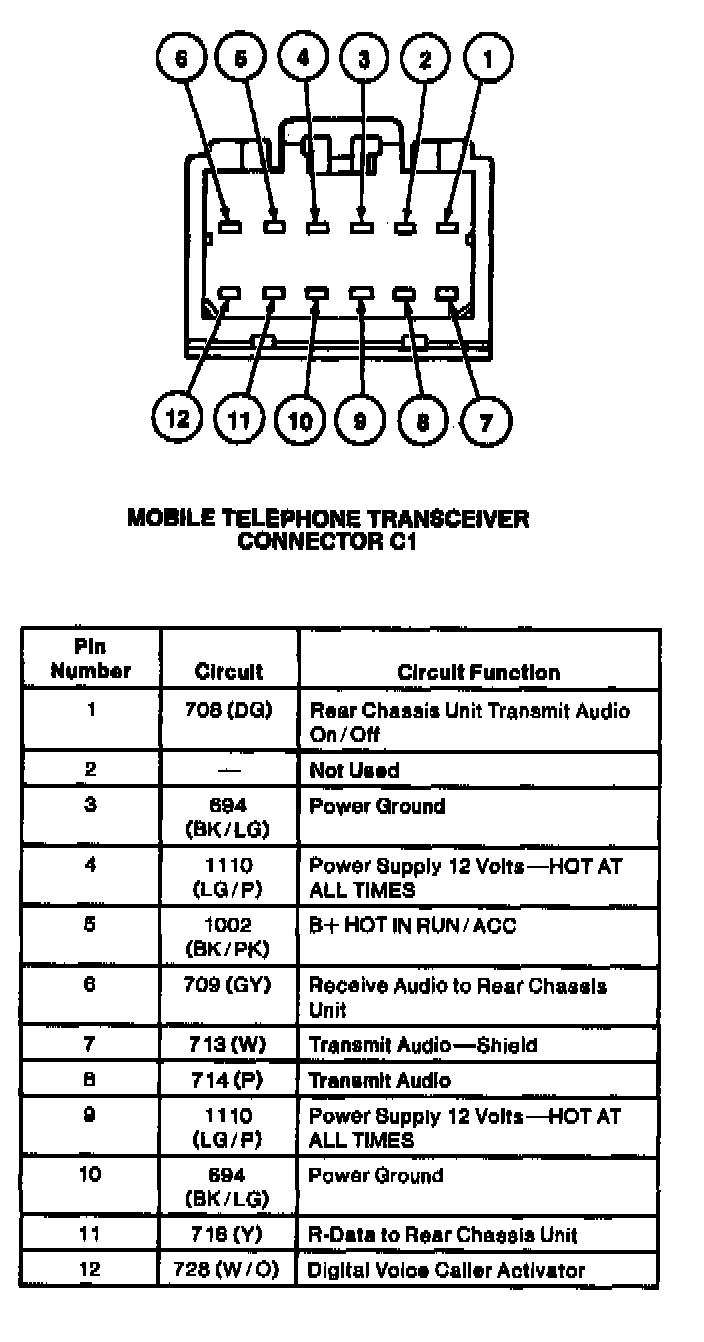

Connector C1
Connector C2
