Continental V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>
Connector Designations
Connector Designations

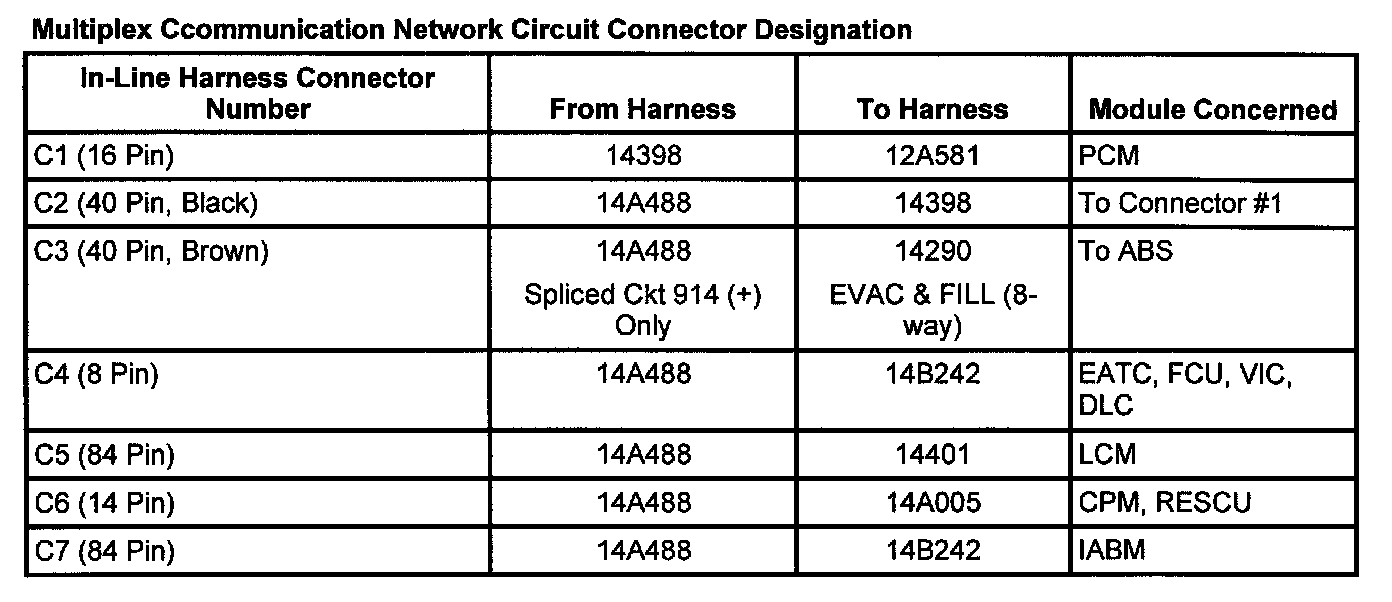

Multiplex Communication Network Circuit Connector Designation:
