Home >> Lincoln >> 1996 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Driver Door Module Connector C3

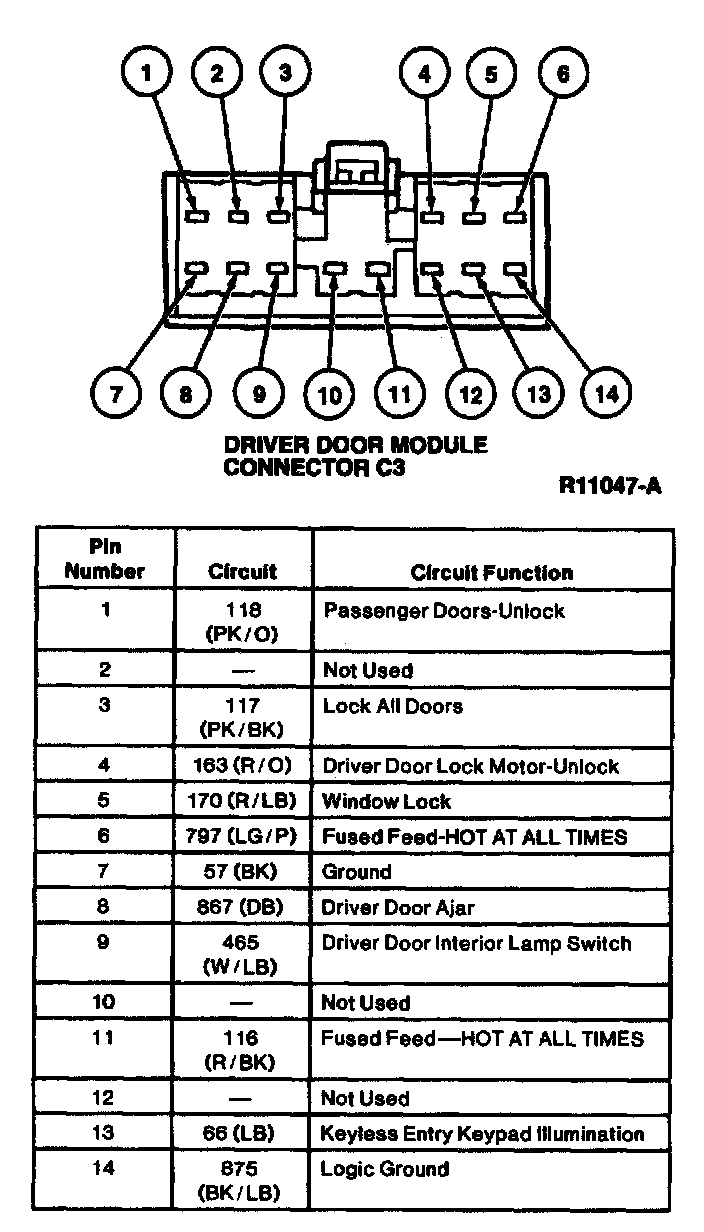

Driver Door Module Connector C3

Driver Door Module Connector C3:
