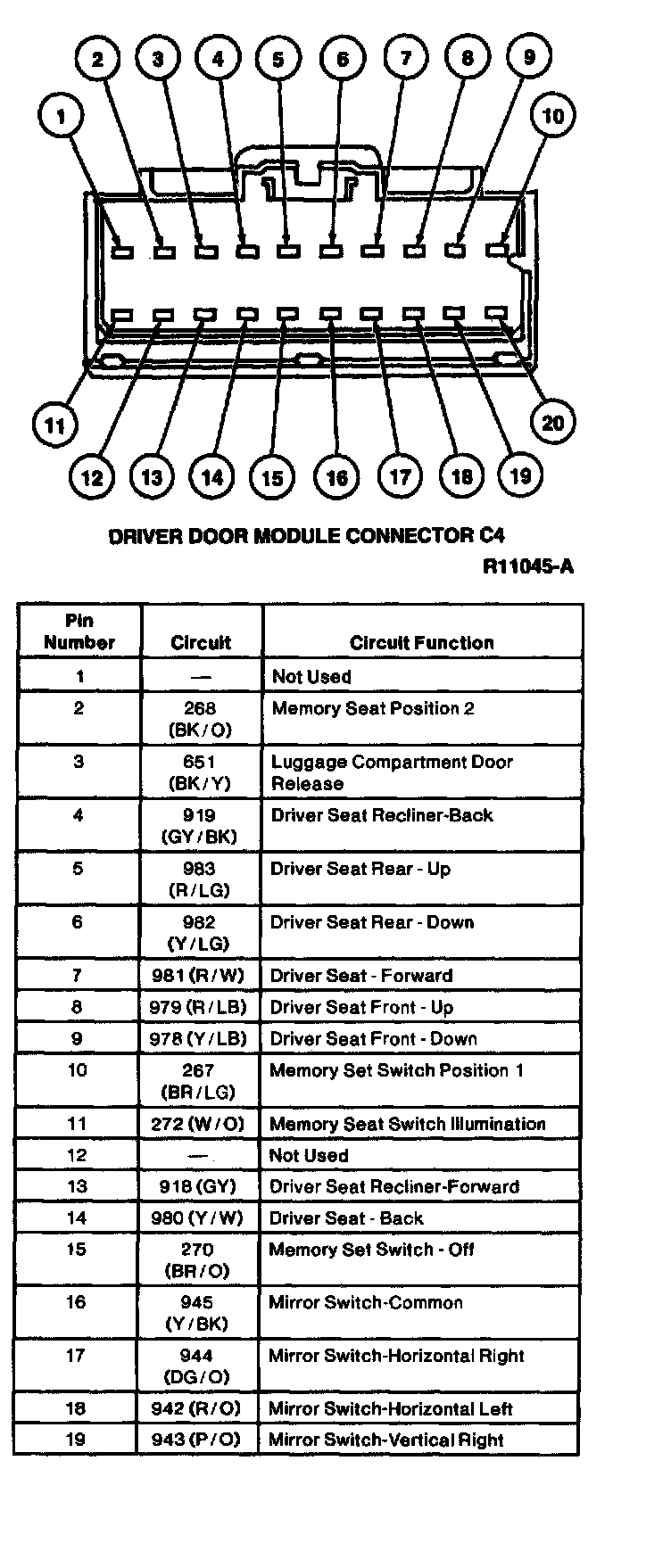

Driver Door Module Connector C4

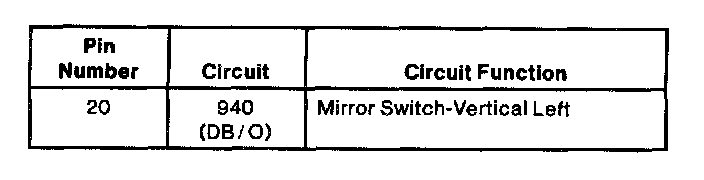

Driver Door Module Connector C4:



Driver Door Module Connector C4:
