Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1996
>>
Continental V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

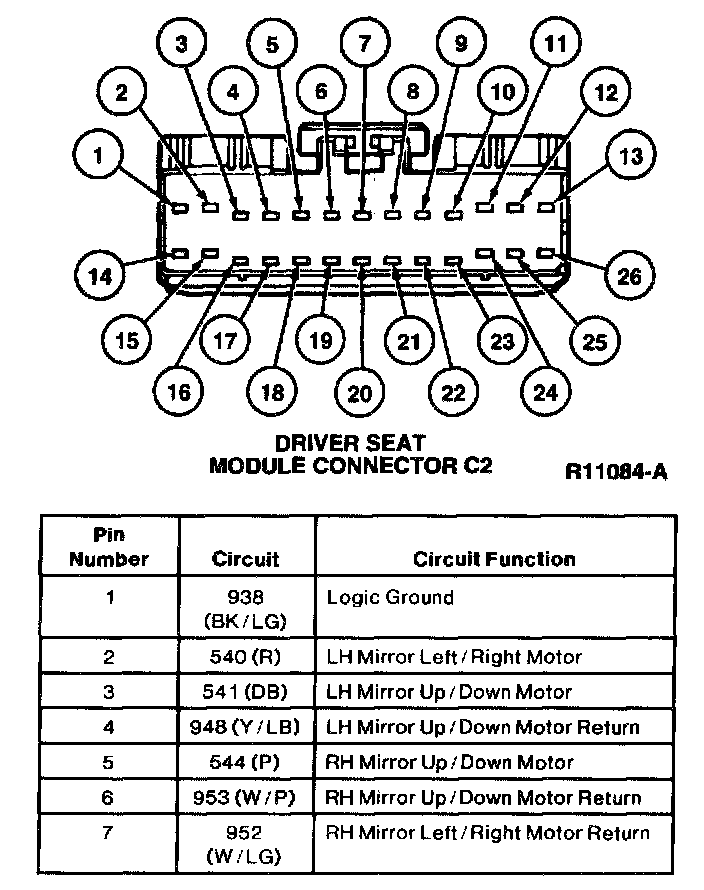

Driver Seat Module Connector C2
Driver Seat Module Connector C2

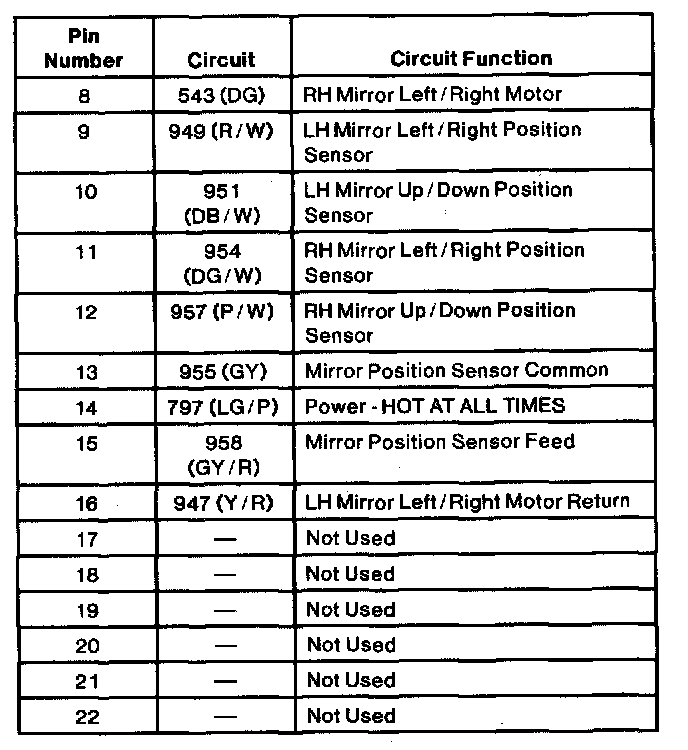

Driver Seat Module Connector C2:

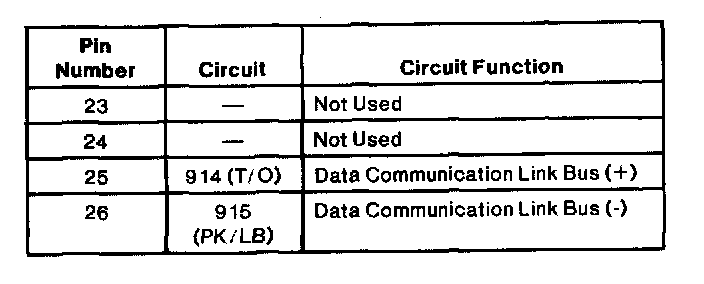

Driver Seat Module Connector C2:
Driver Seat Module Connector C2:
