Home >> Lincoln >> 1996 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module

Power Seat Control Module

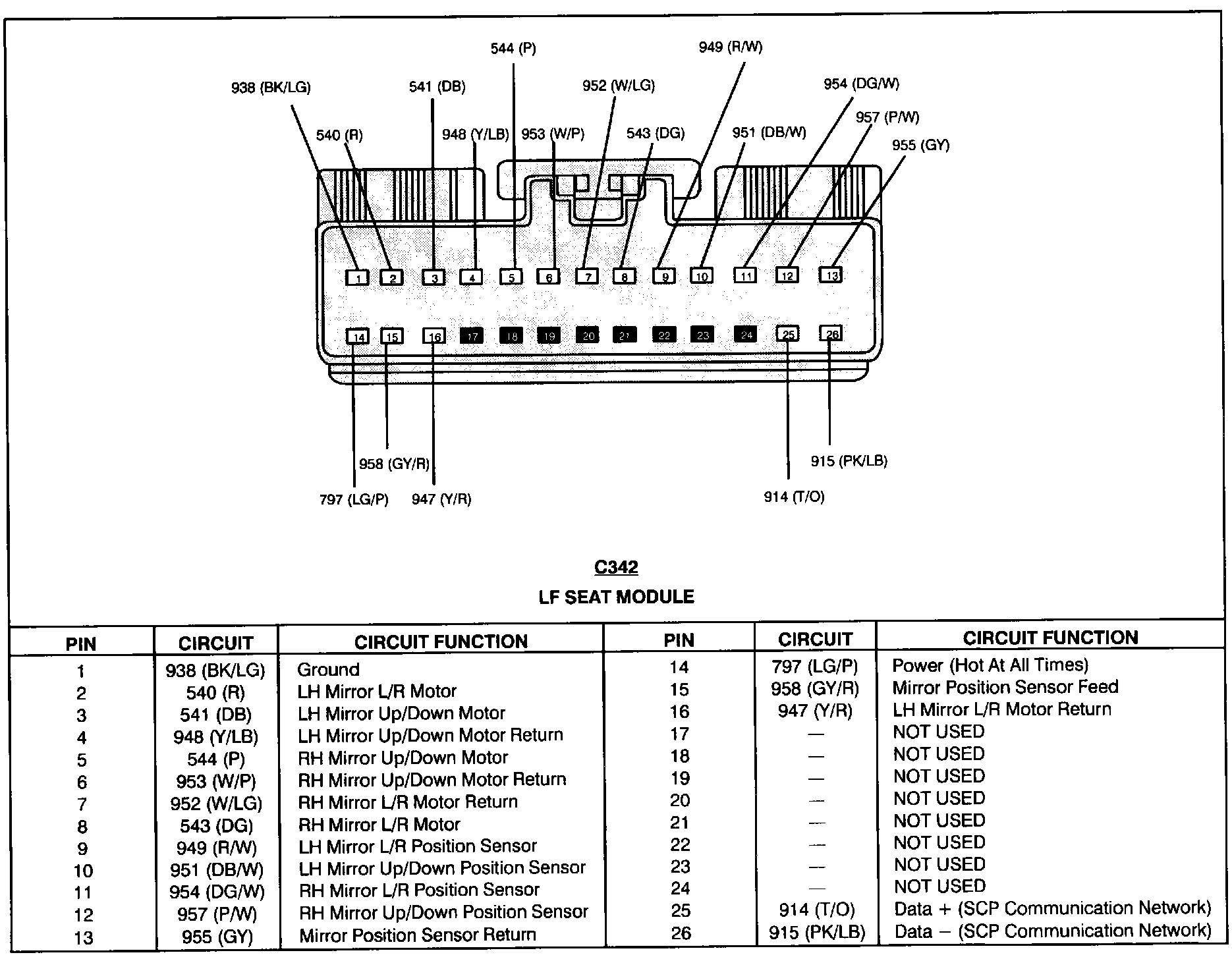

LF Seat Module:

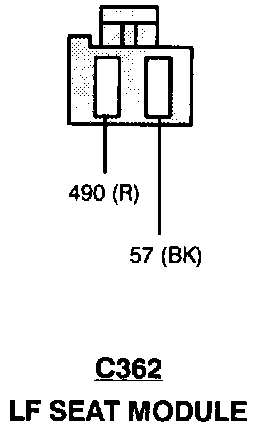

LF Seat Module:

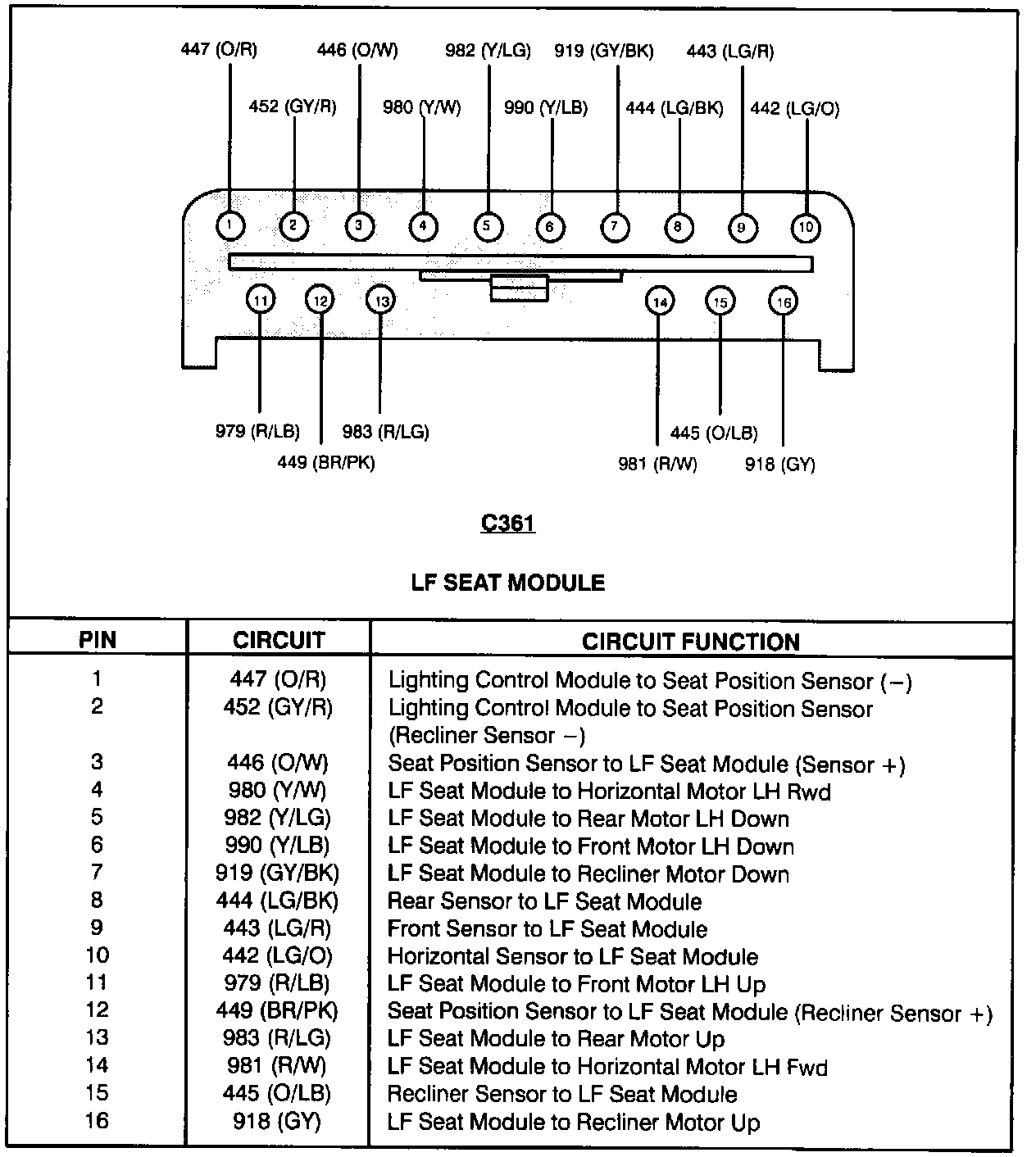

LF Seat Module:
