Heated Seat Module

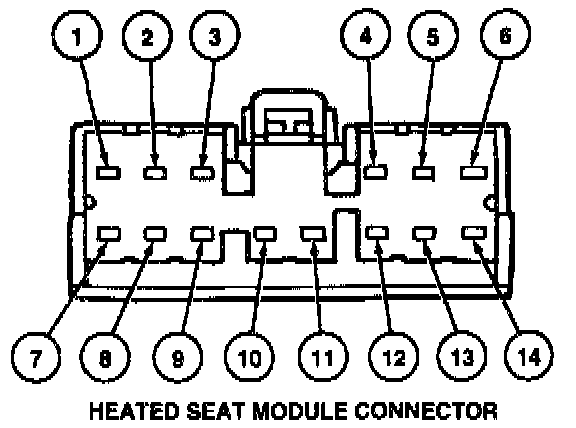

Heated Seat Module Connector:

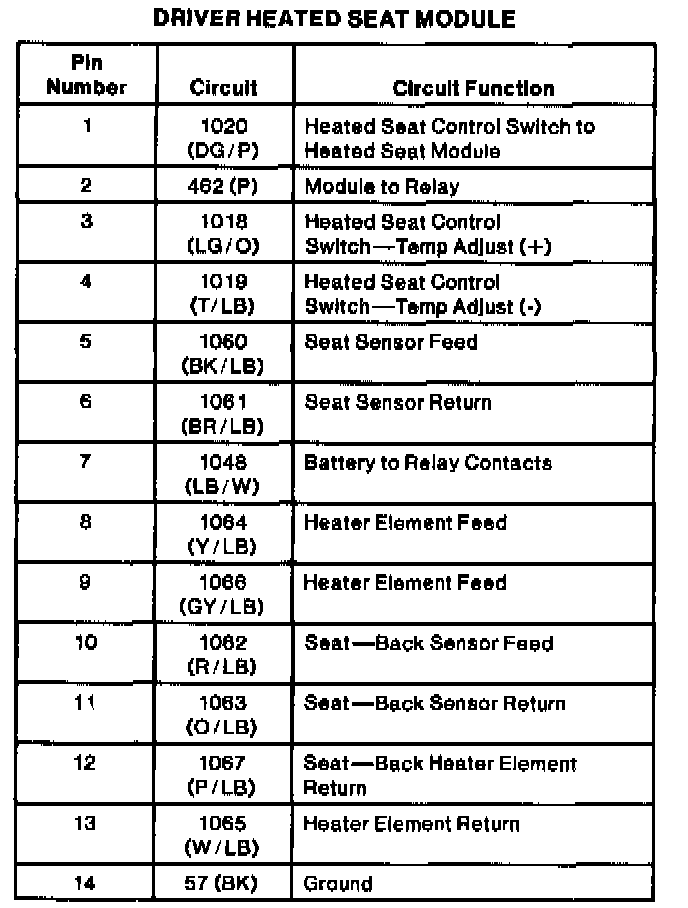

Driver Heated Seat Module:

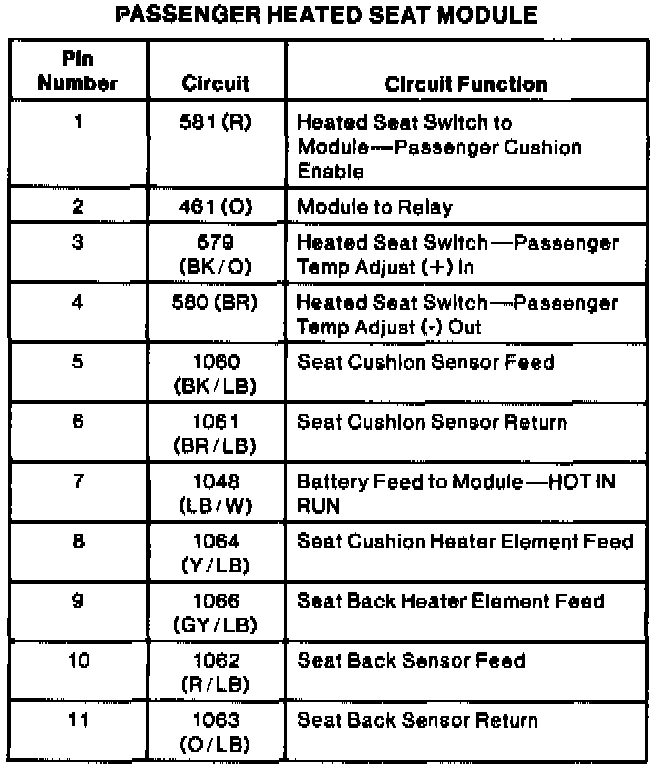

Passenger Heated Seat Module:

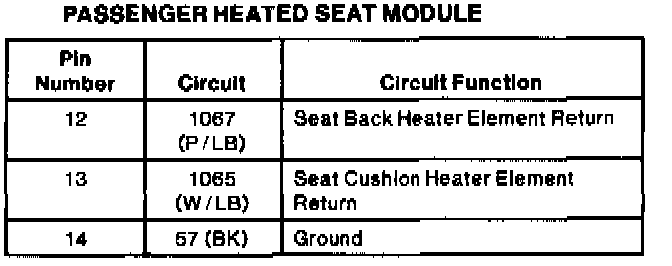

Passenger Heated Seat Module 2 Of 2:
