Connector Views

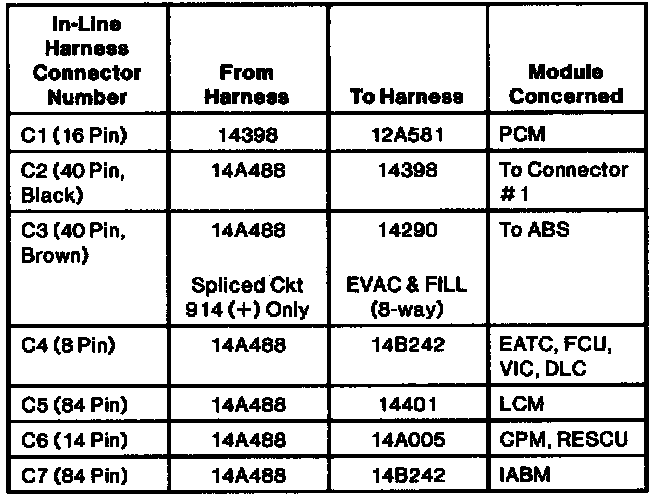

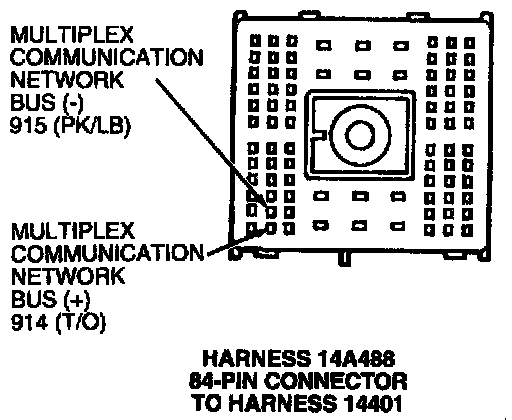

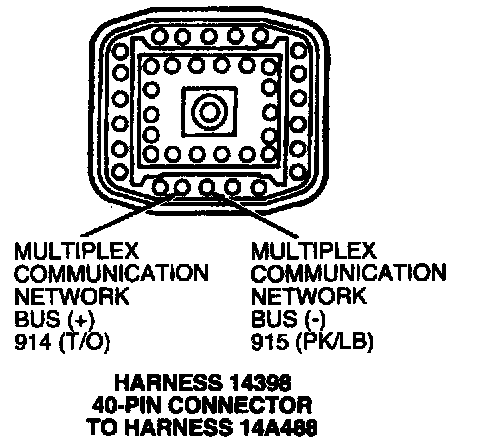

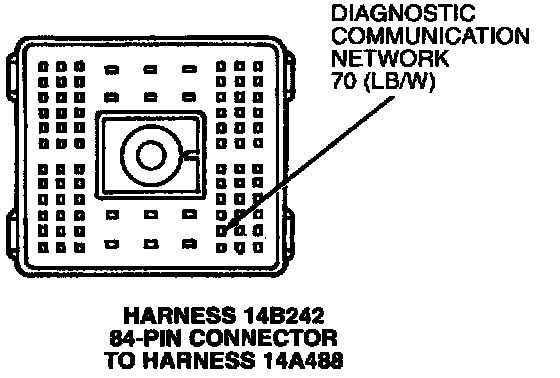

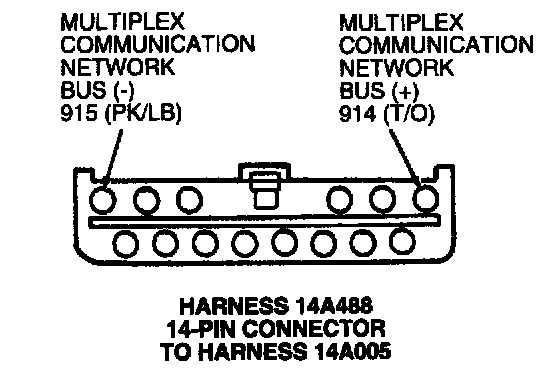

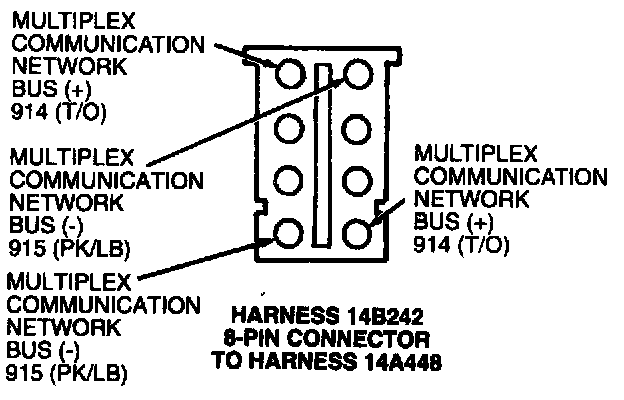

MCN Circuit Connector Designation:

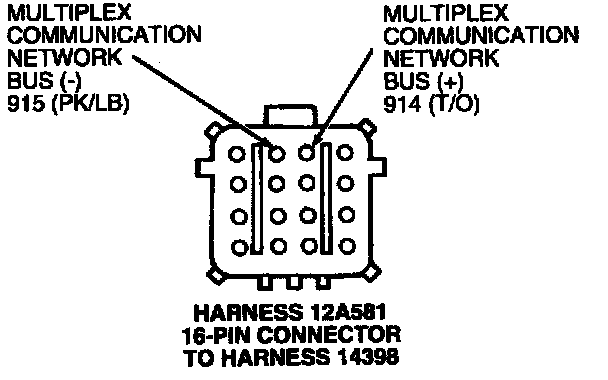

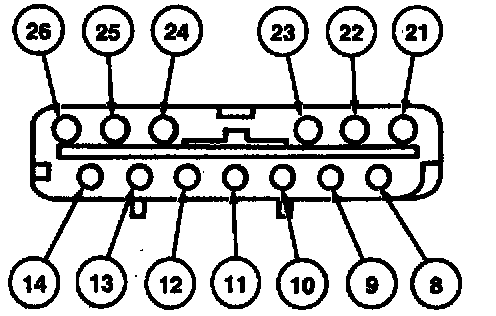

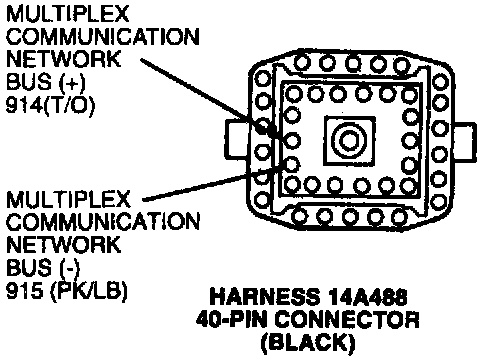

Connector 1 (C1) Part 1 Of 2:





Connector 1 (C1) Part 2 Of 2:

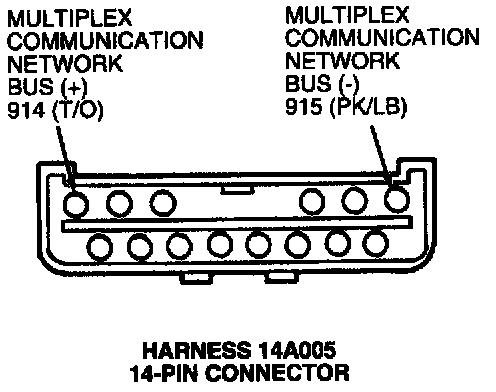

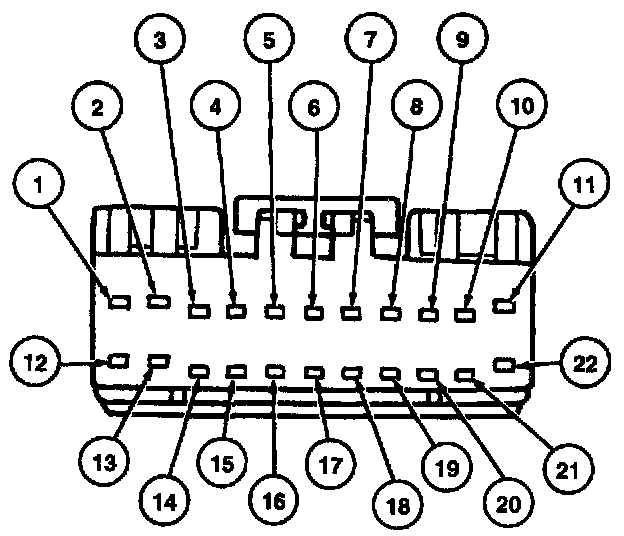

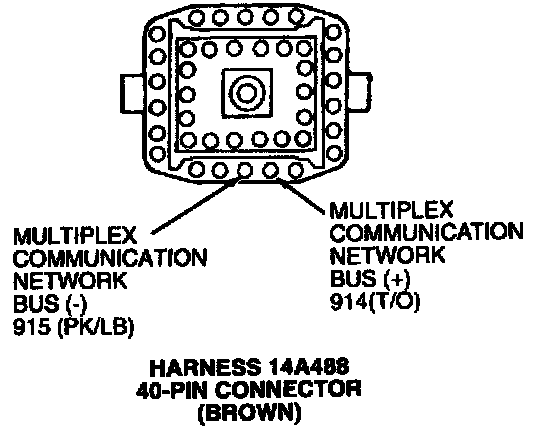

Connector 2 (C2) Part 1 Of 2:





Connector 2 (C2) Part 2 Of 2:

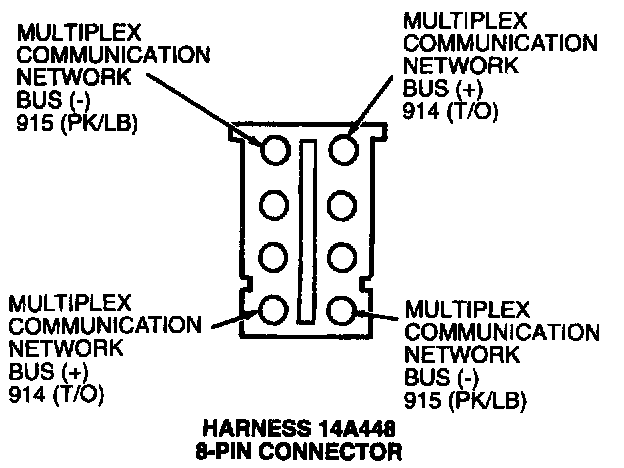

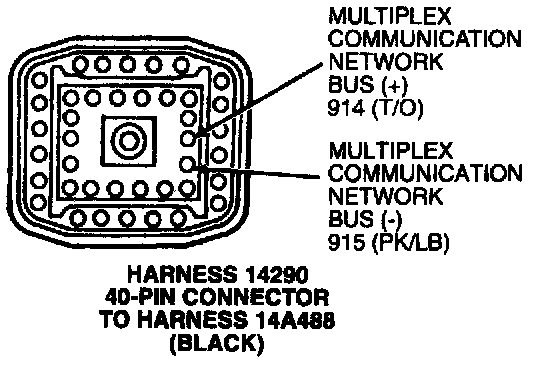

Connector 3 (C3) Part 1 Of 2:





Connector 3 (C3) Part 2 Of 2:





Connector 4 (C4) Part 1 Of 2:





Connector 4 (C4) Part 2 Of 2:





Connector 5 (C5) Part 1 Of 2:





Connector 5 (C5) Part 2 Of 2:





Connector 6 (C6) Part 1 Of 2:





Connector 6 (C6) Part 2 Of 2:





Connector 7 (C7) Part 1 Of 2:





Connector 7 (C7) Part 2 Of 2:

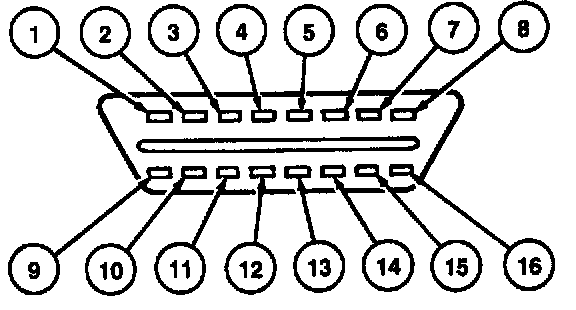

Data Link Connector Part 1 Of 2:

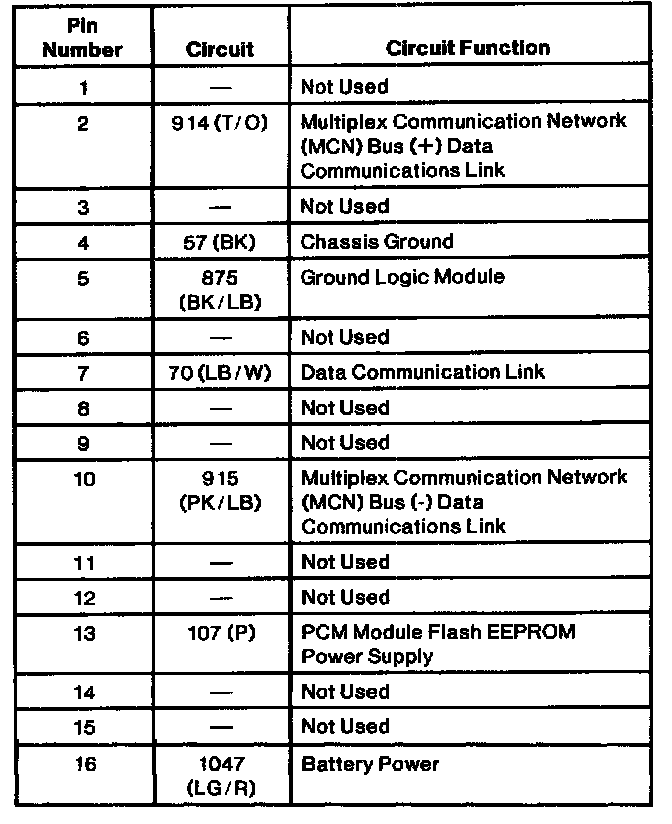

Data Link Connector Part 2 Of 2:

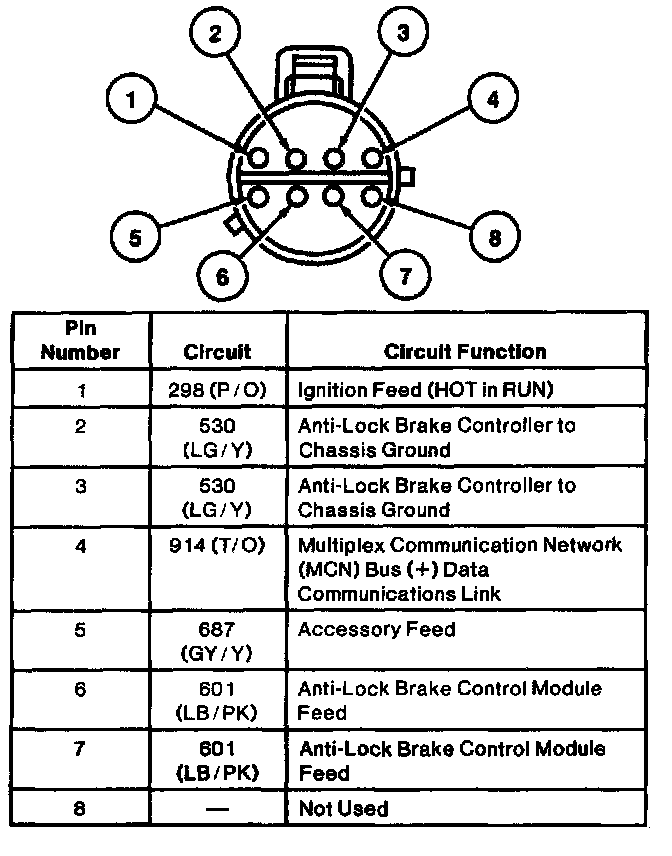

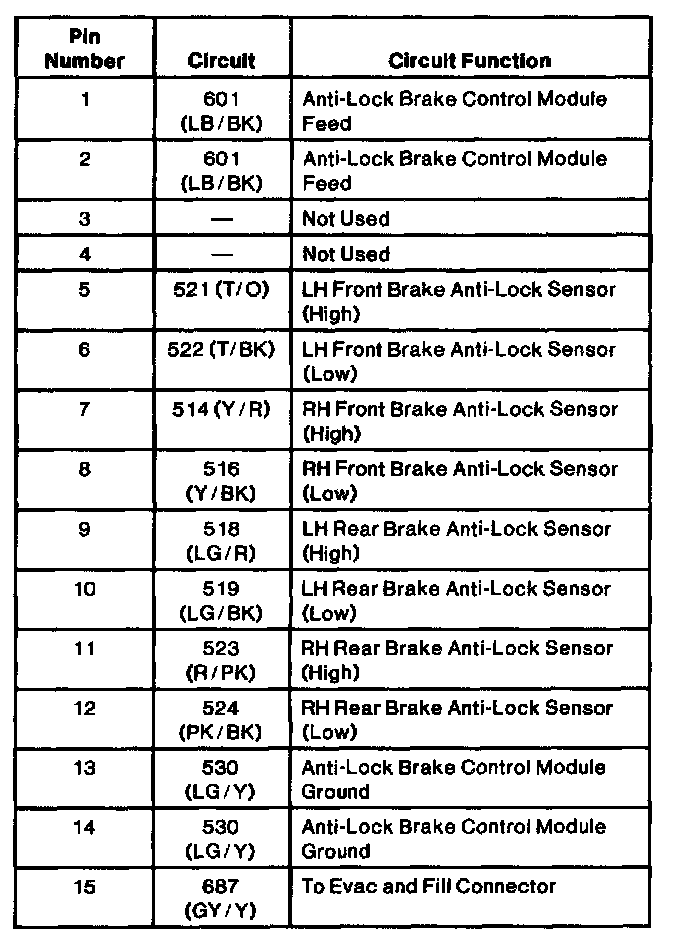

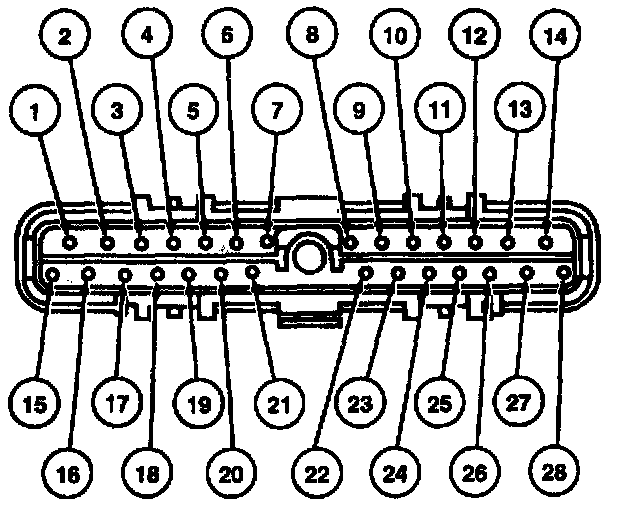

Antilock Brake Control Module Part 1 Of 3:

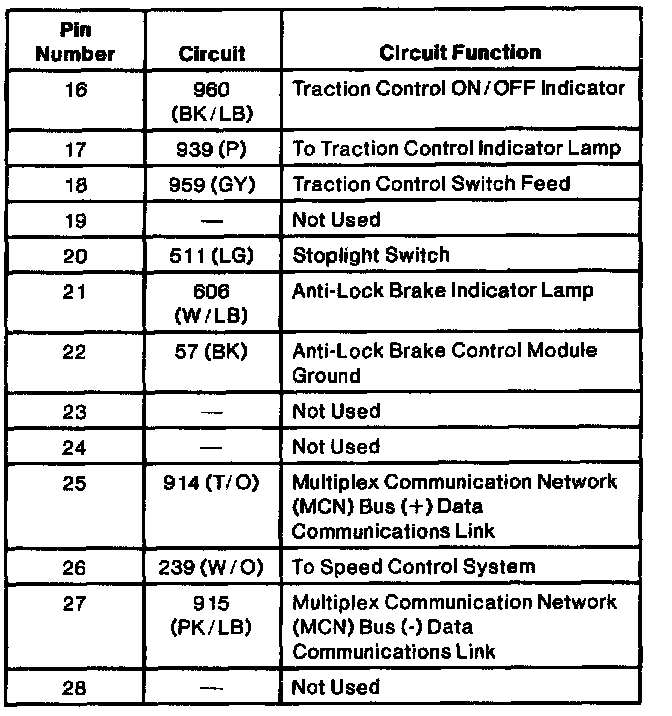

Antilock Brake Control Module Part 2 Of 3:





Antilock Brake Control Module Part 3 Of 3:





Antilock Brake System Evacuate And Fill Connector:

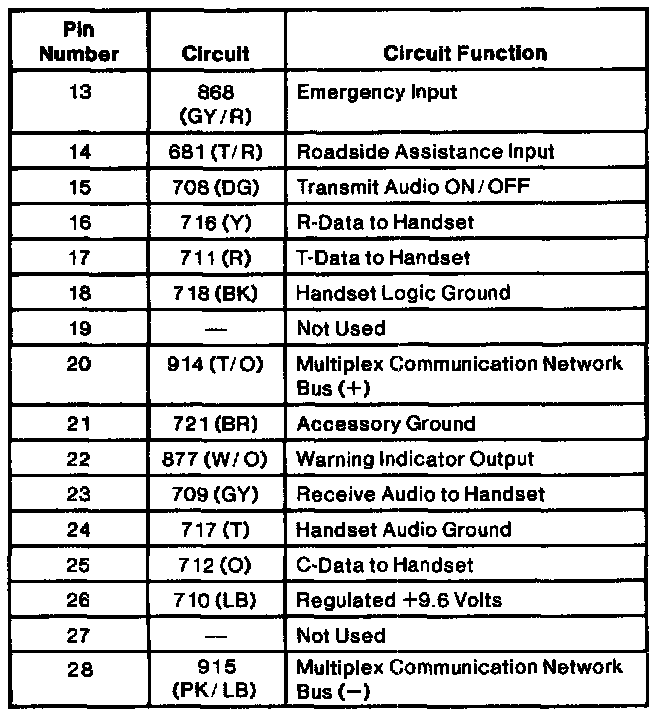

Mobile Telephone Transceiver Connector C2 Part 1 Of 2:





Mobile Telephone Transceiver Connector C2 Part 2 Of 2:





Remote Emergency Satellite Cellular Unit Module Connector C2 Part 1 Of 2:





Remote Emergency Satellite Cellular Unit Module Connector C2 Part 2 Of 2:

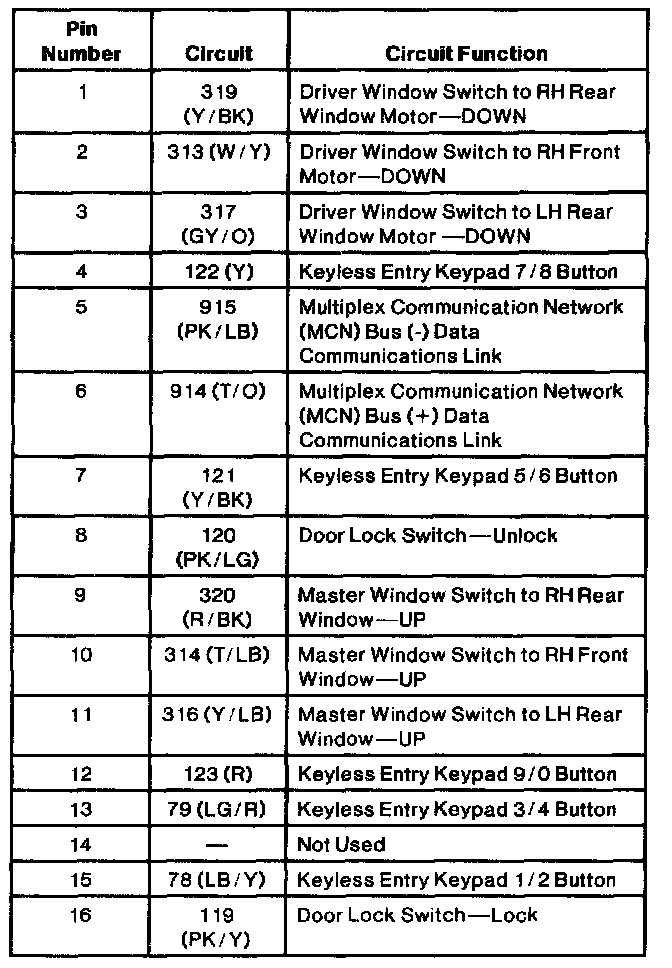

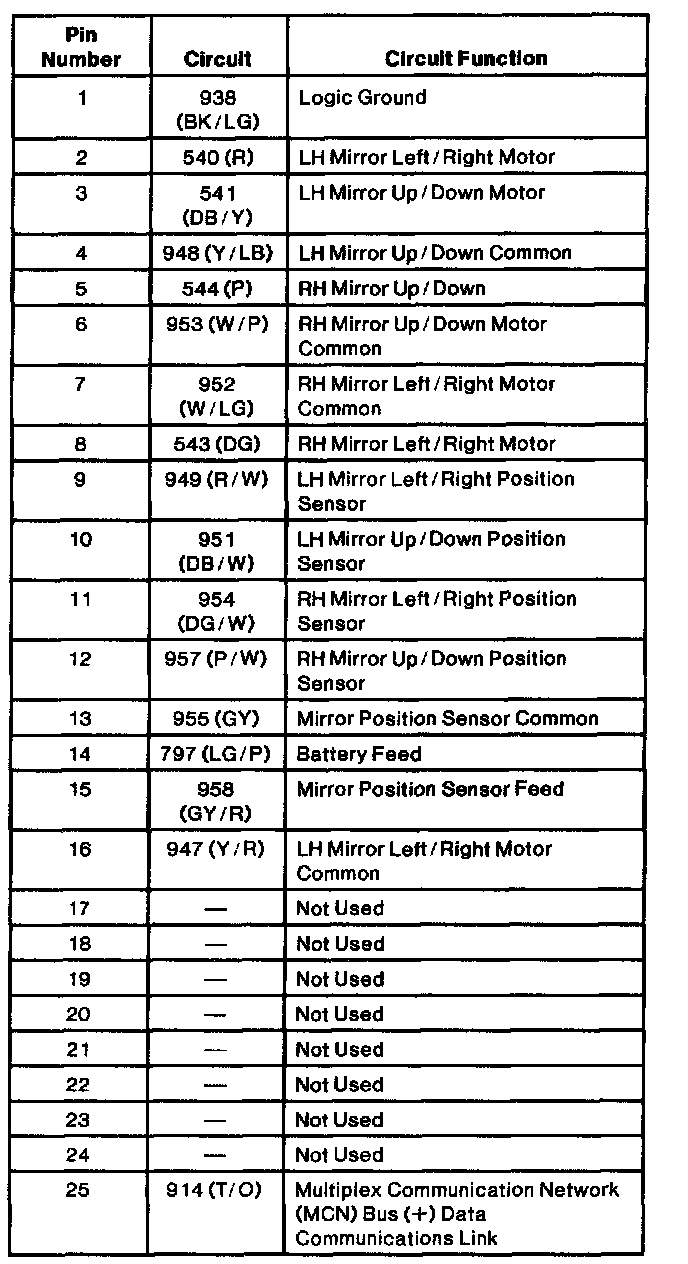

Driver Door Module Connector C2 Part 1 Of 2:

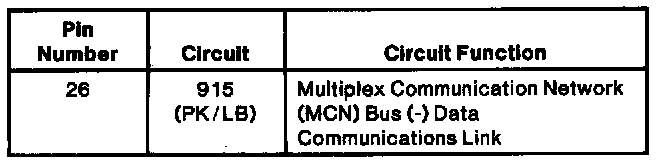

Driver Door Module Connector C2 Part 2 Of 2:





Driver Seat Module Connector C2 Part 1 Of 3:





Driver Seat Module Connector C2 Part 2 Of 3:





Driver Seat Module Connector C2 Part 3 Of 3:

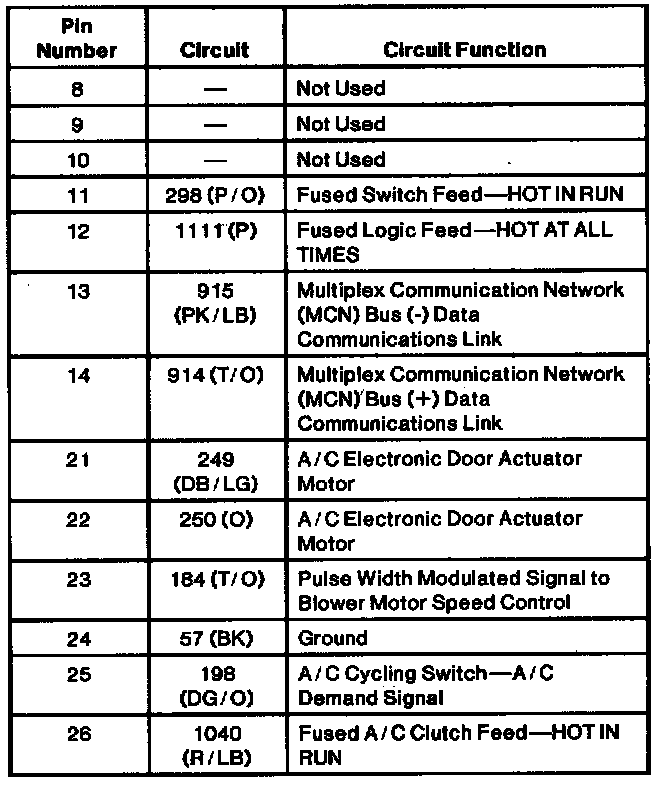

Electronic Automatic Temperature Control Connector C2 Part 1 Of 2:





Electronic Automatic Temperature Control Connector C2 Part 2 Of 2:

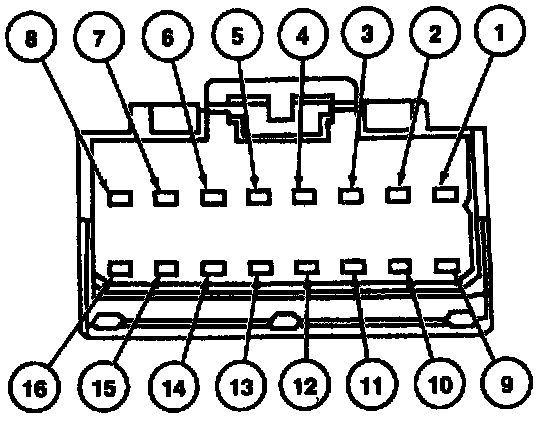

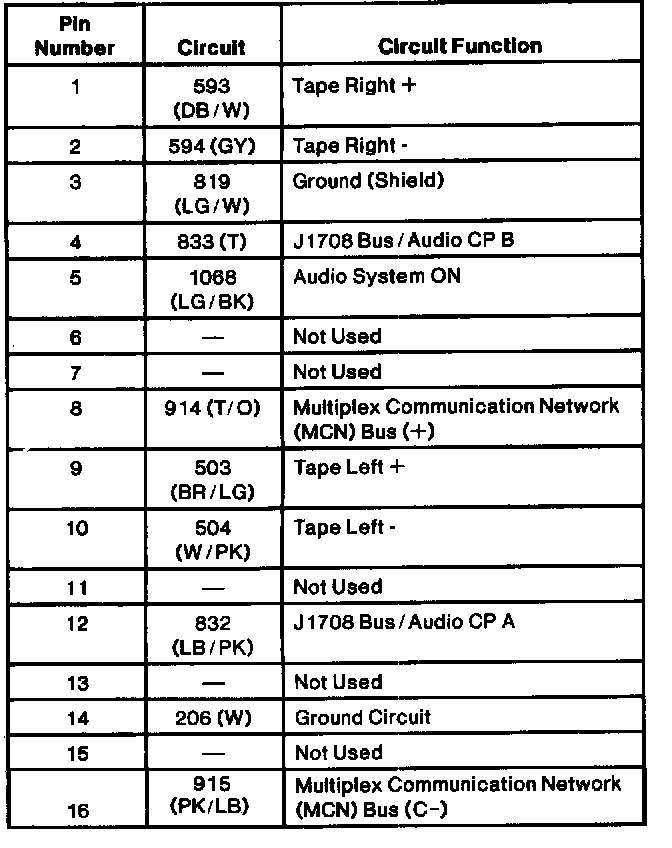

Radio Front Control Unit C2 Part 1 Of 2:





Radio Front Control Unit C2 Part 1 Of 2:





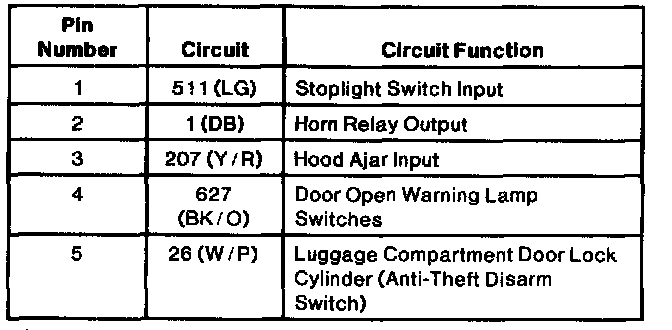

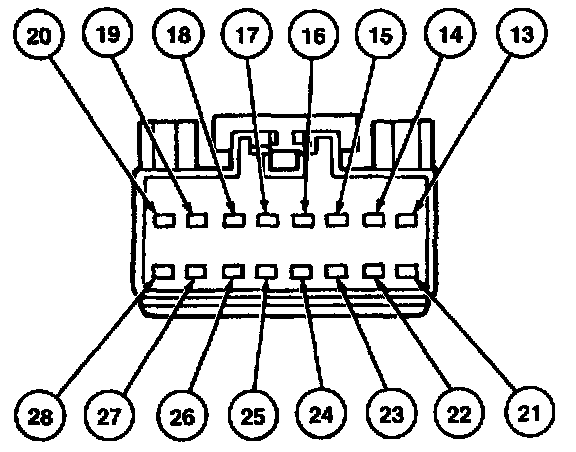

Lighting Control Module Connector C1 Part 1 Of 3:





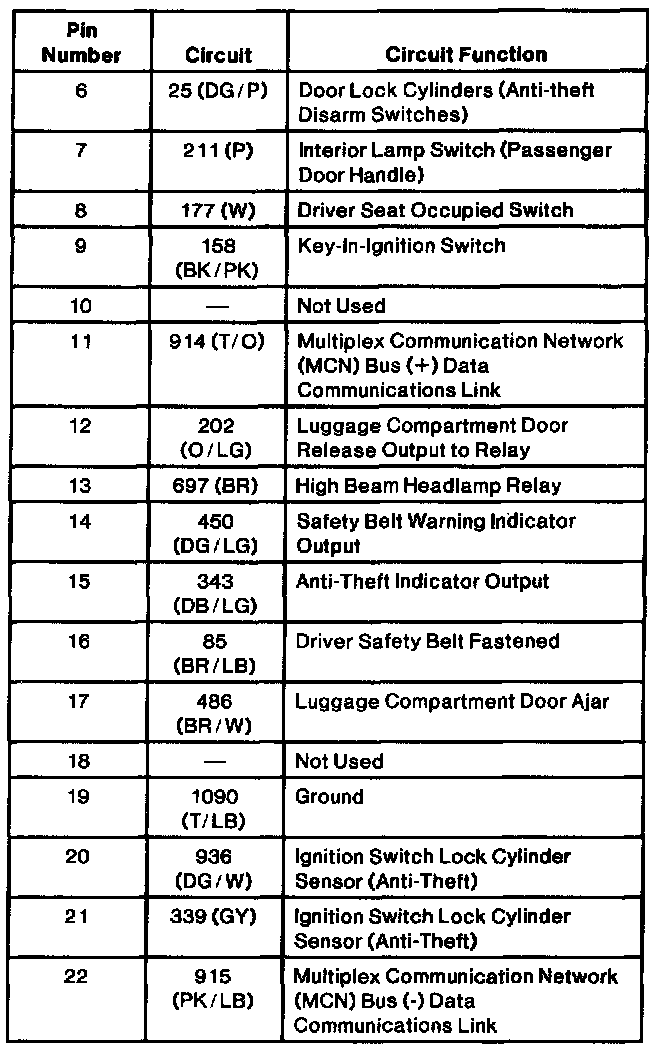

Lighting Control Module Connector C1 Part 2 Of 3:





Lighting Control Module Connector C1 Part 3 Of 3:

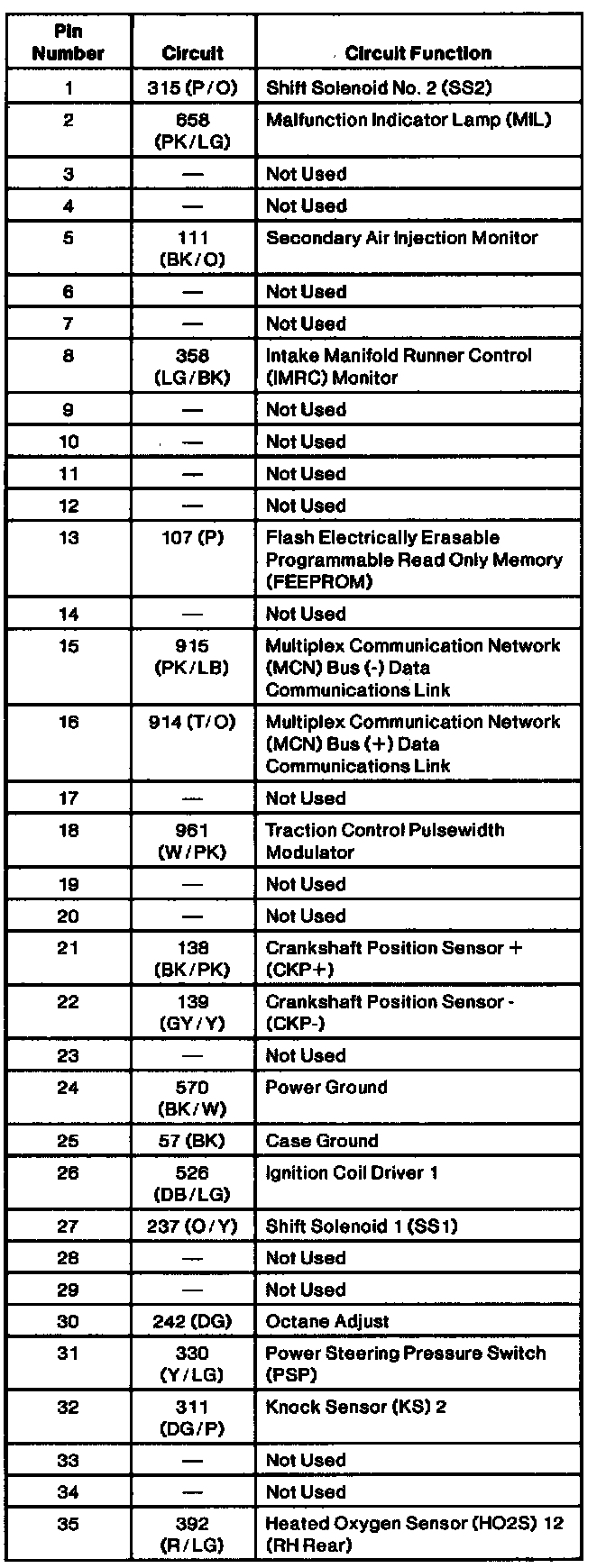

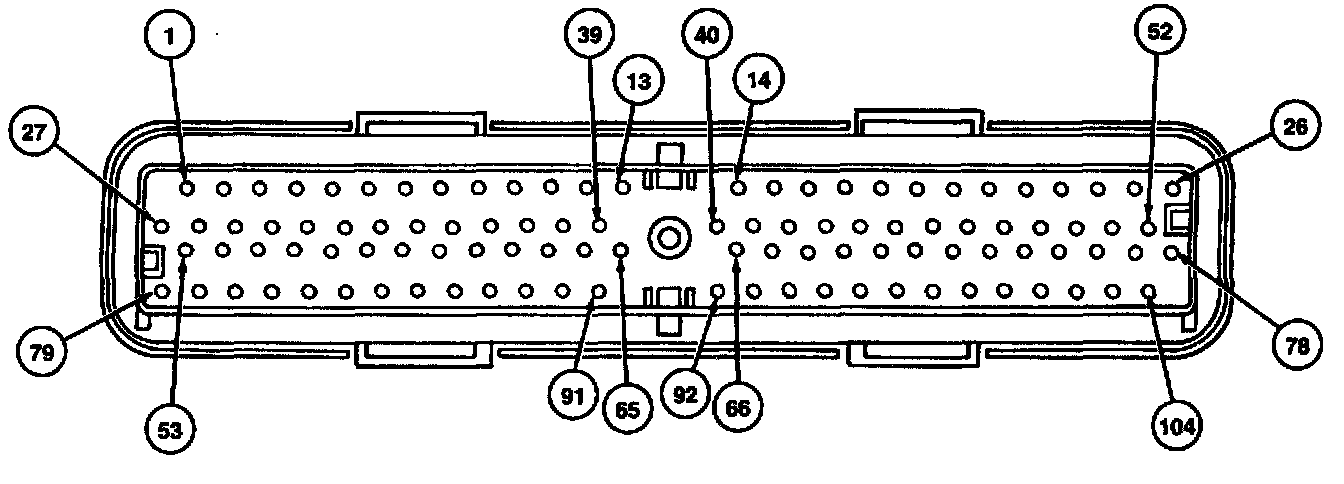

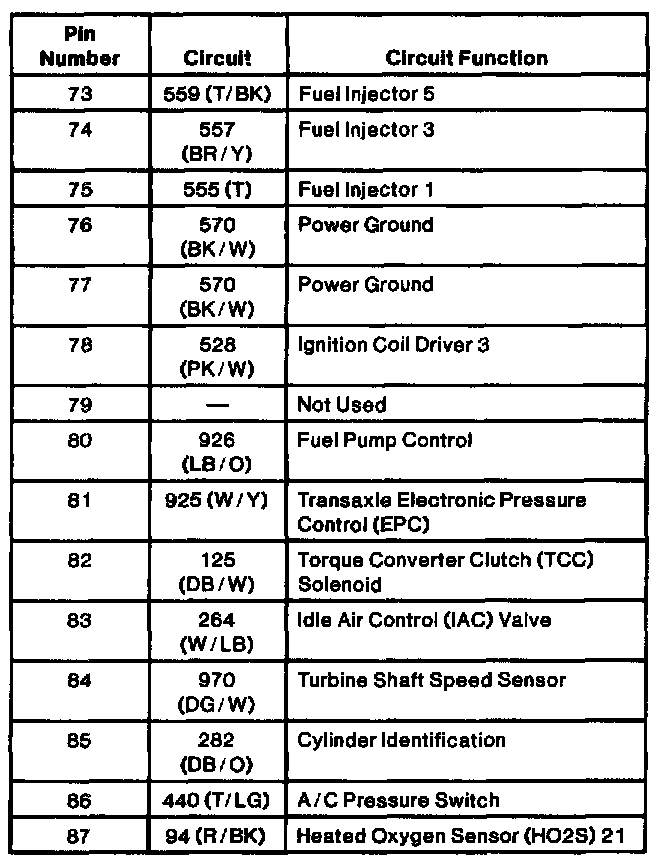

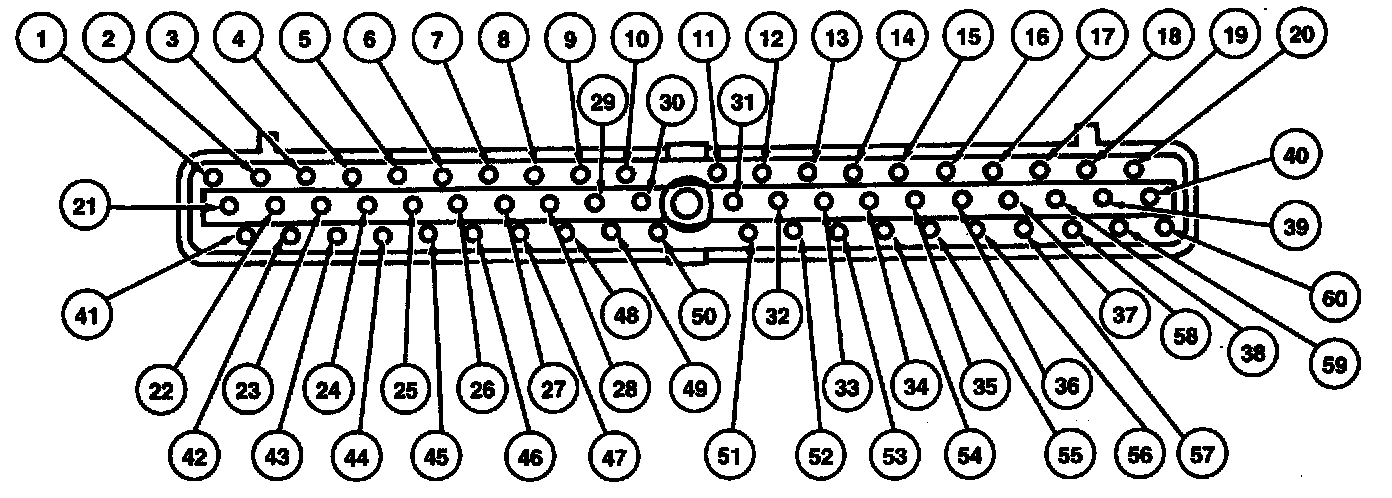

Powertrain Control Module Part 1 Of 5:

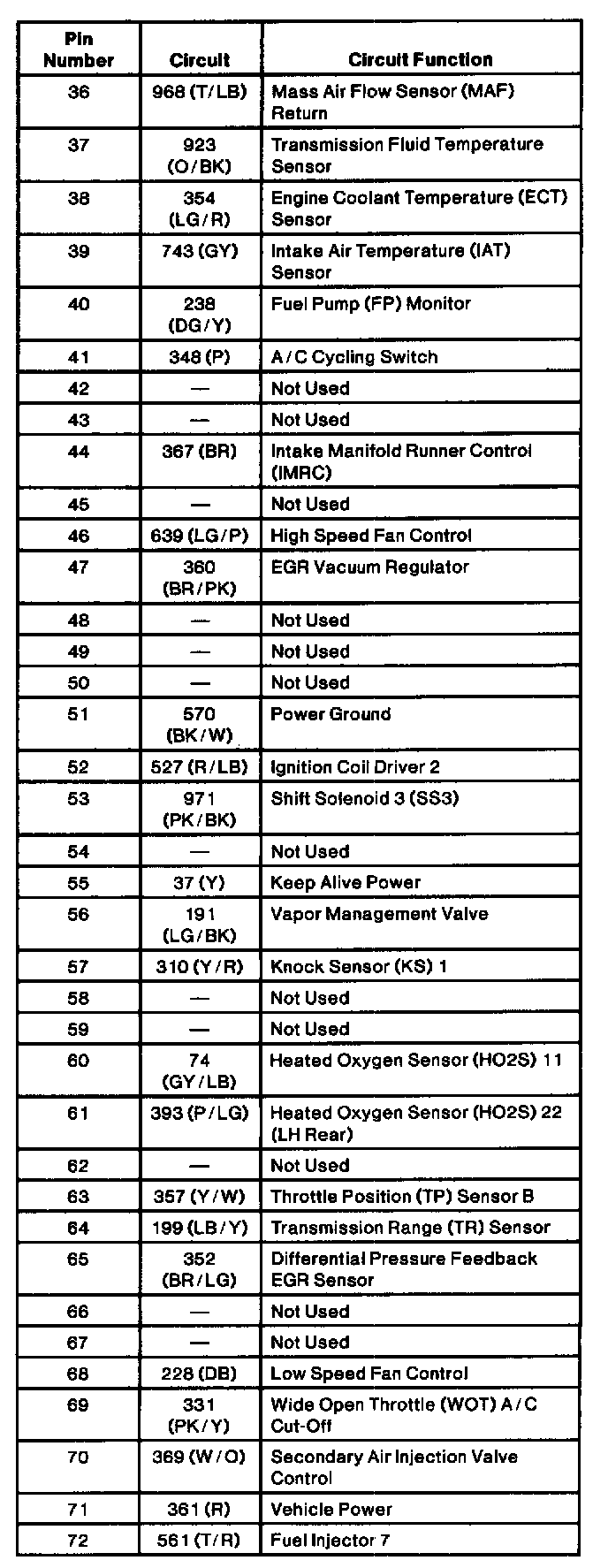

Powertrain Control Module Part 2 Of 5:





Powertrain Control Module Part 3 Of 5:

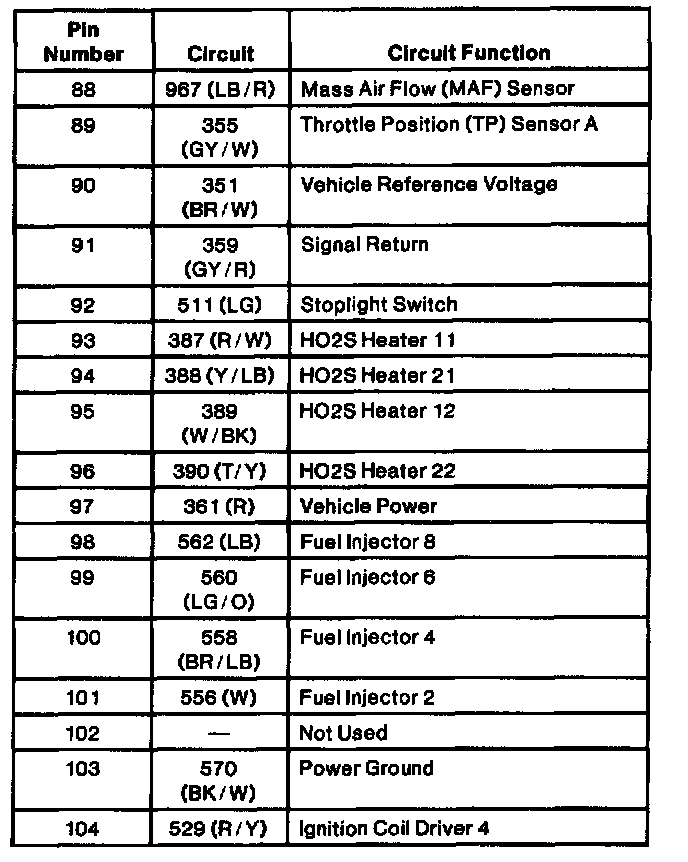

Powertrain Control Module Part 4 Of 5:





Powertrain Control Module Part 5 Of 5:

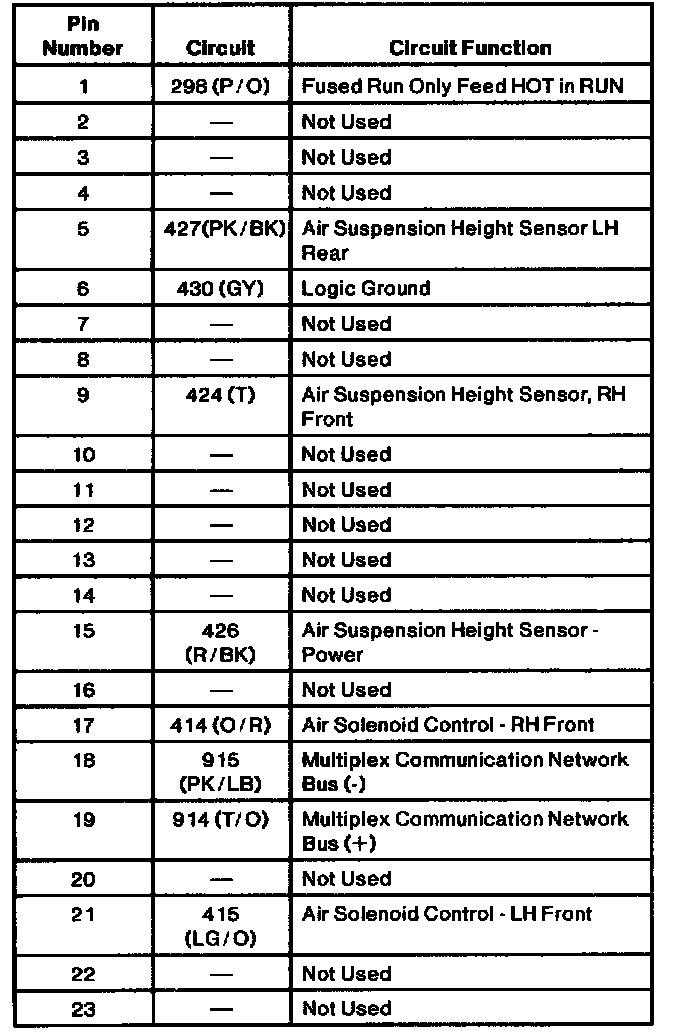

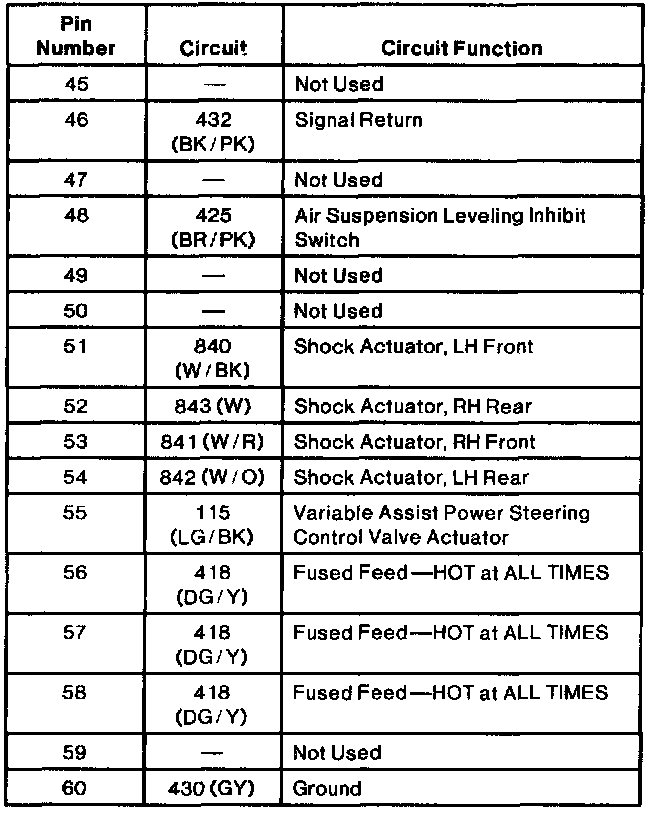

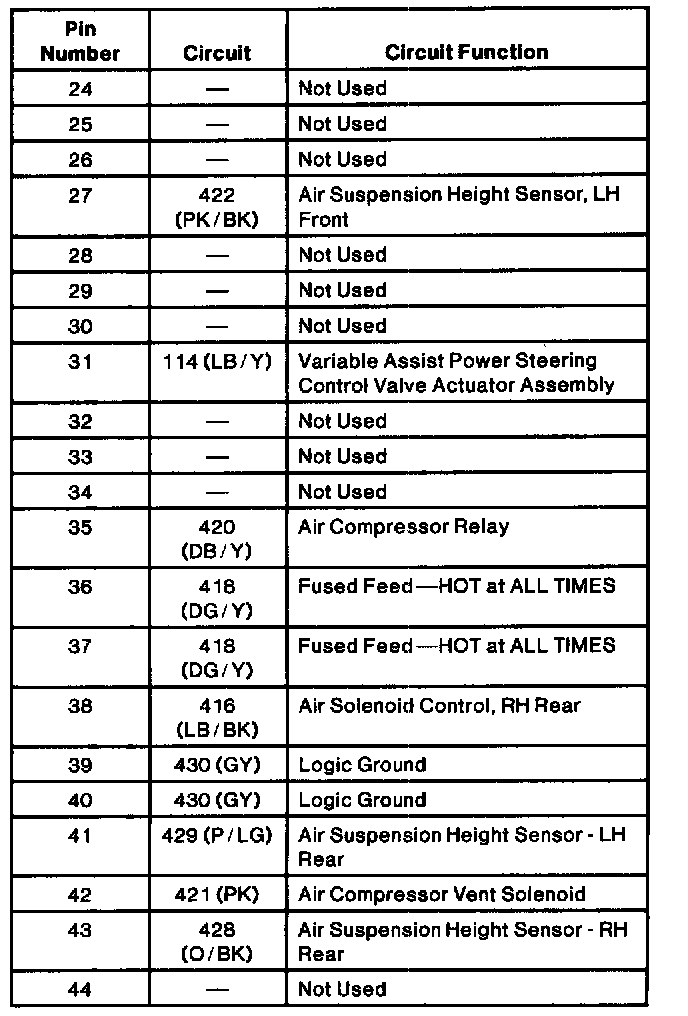

Vehicle Dynamics Control Module Connector Part 1 Of 4:





Vehicle Dynamics Control Module Connector Part 2 Of 4:





Vehicle Dynamics Control Module Connector Part 3 Of 4:





Vehicle Dynamics Control Module Connector Part 4 Of 4:





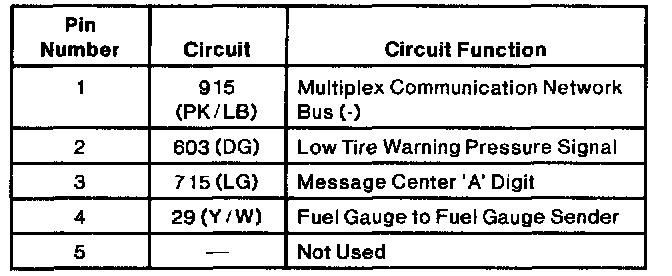

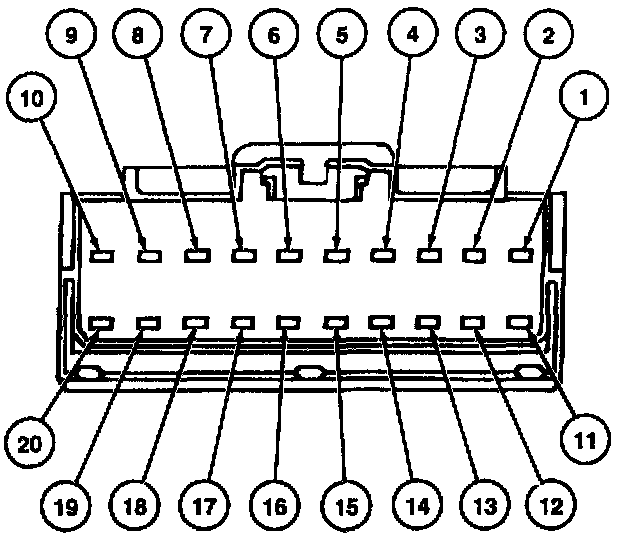

Virtual Instrument Cluster Connector C1 Part 1 Of 3:





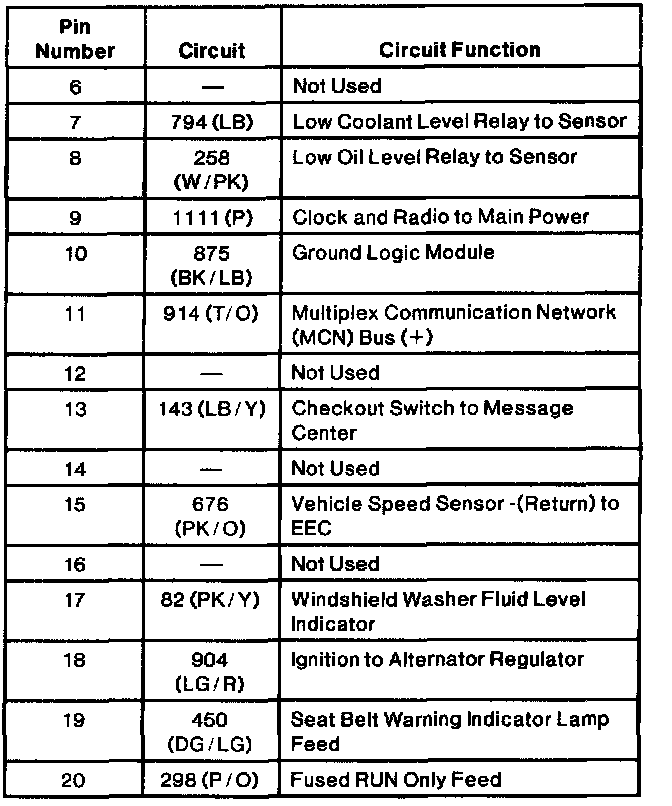

Virtual Instrument Cluster Connector C1 Part 2 Of 3:





Virtual Instrument Cluster Connector C1 Part 3 Of 3:
