Lighting Control Module PID Index

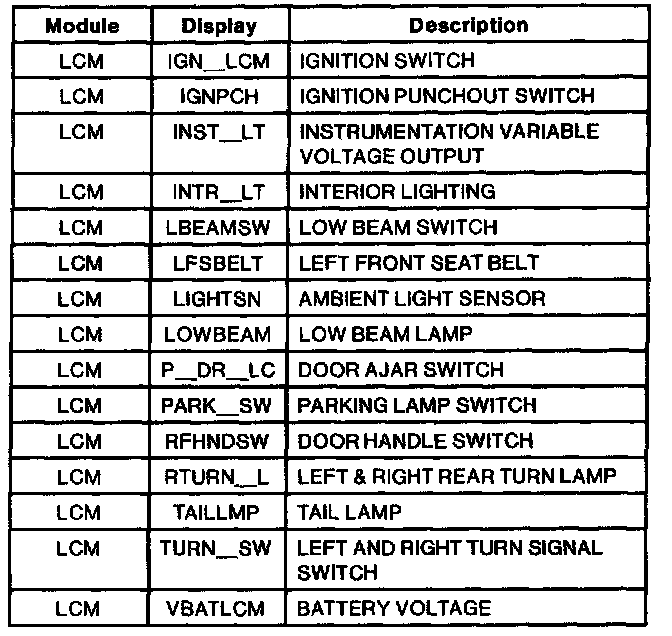

Lighting Control Module PID Index Part 1 Of 2:



Lighting Control Module PID Index Part 2 Of 2:
