Pressure Feedback Exhaust Sensor: Service and Repair

Transducer:

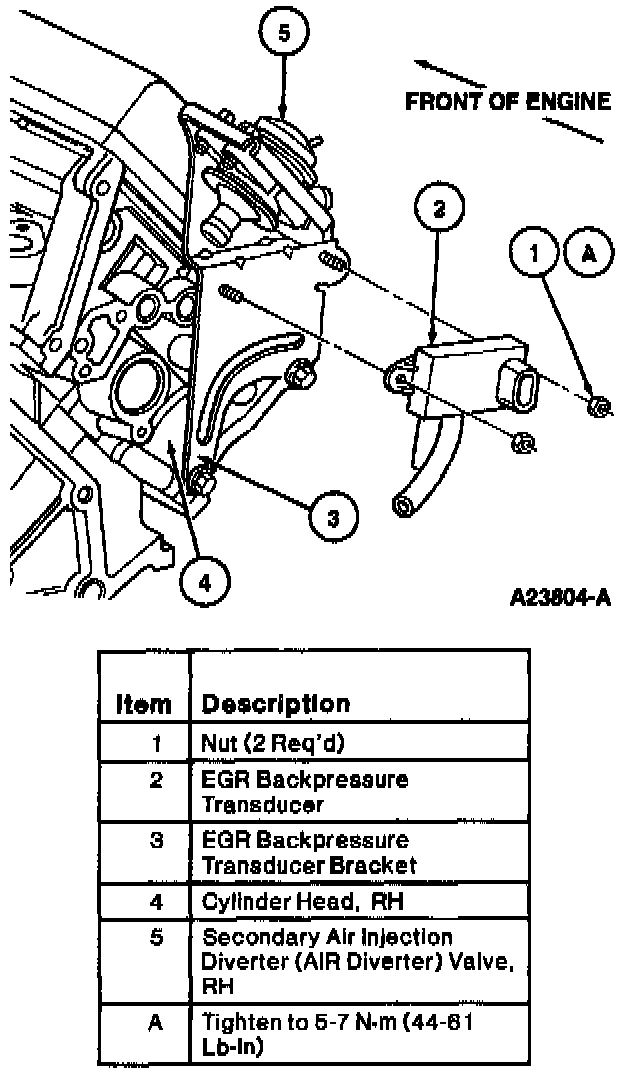

REMOVAL
1. Disconnect fuel charging wiring connector from Exhaust Gas Recirculation (EGR) Valve backpressure transducer.
2. Disconnect EGR backpressure transducer hoses from EGR backpressure transducer.
3. Remove EGR backpressure transducer retaining nuts and EGR backpressure transducer from transducer mounting bracket.


INSTALLATION
1. Reverse removal procedure.
2. Tighten EGR backpressure transducer retaining nuts to 5-7 Nm (40-61 lb in).
