Fuse 30

Fuse 30 - protects the following circuits:
^ Heated Mirrors

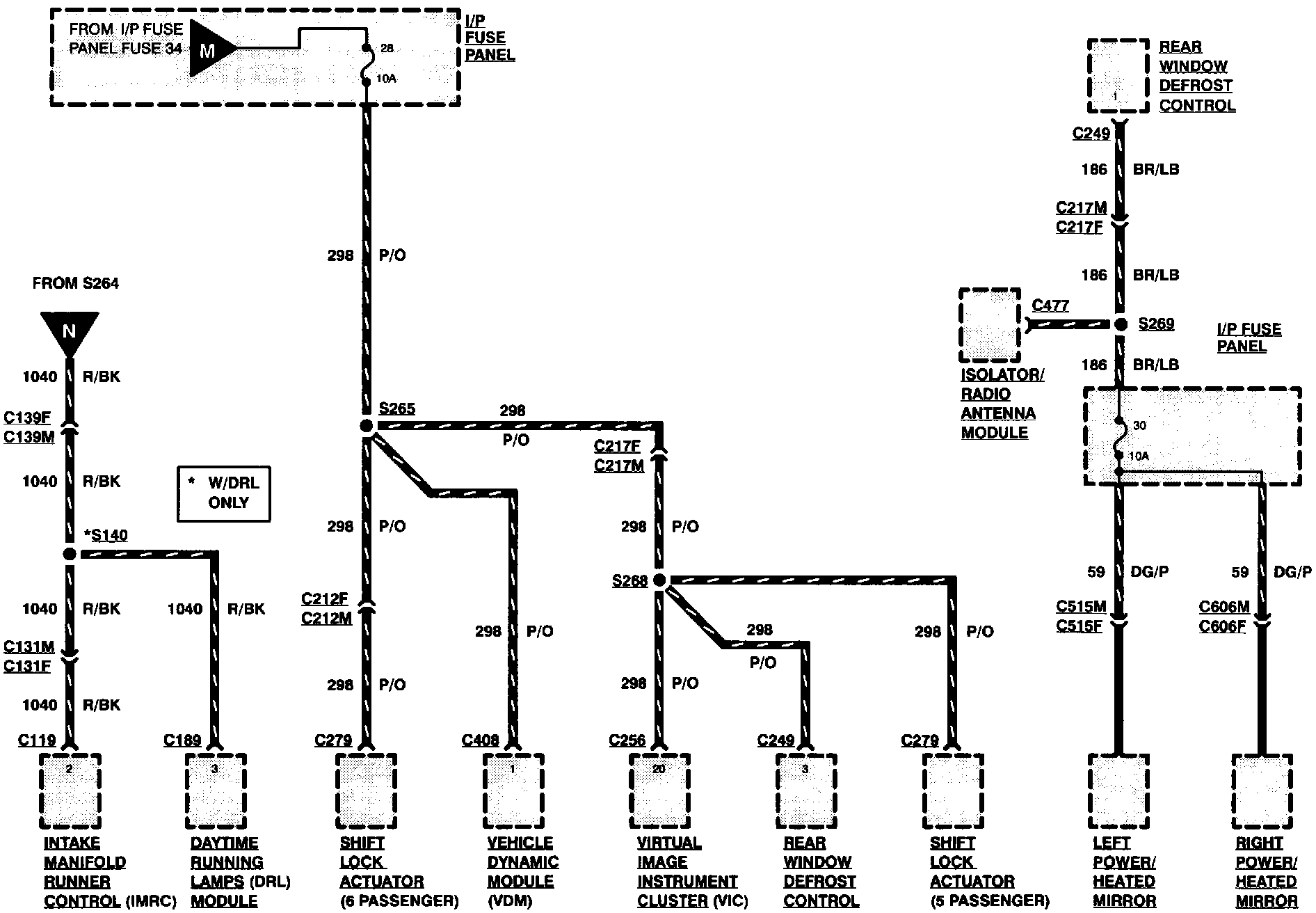

Power Distribution:




Power Distribution:




Power Distribution:
