With Full Console

REMOVAL

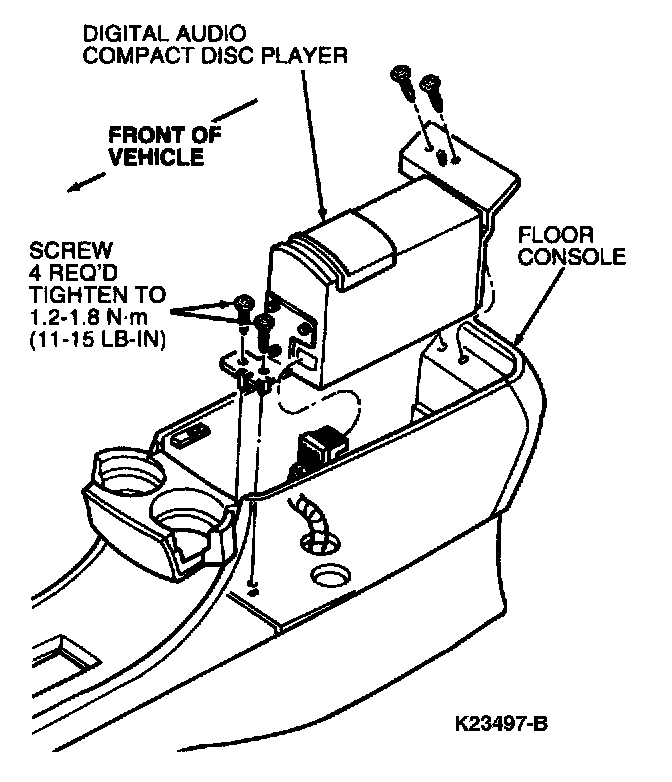

1. Press front of cup holder panel to release cup holders from console.







2. Remove glove compartment door by removing two screws under hinge. Pull glove compartment out of console.
3. Remove four screws retaining digital audio compact disc player to console.
4. Disconnect wiring connector from digital audio compact disc player and remove digital audio compact disc player from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten screws to 1.2-1.8 Nm (11-15 Lb-In).
