Power Door Lock Control Module

LF Door Module (C506):

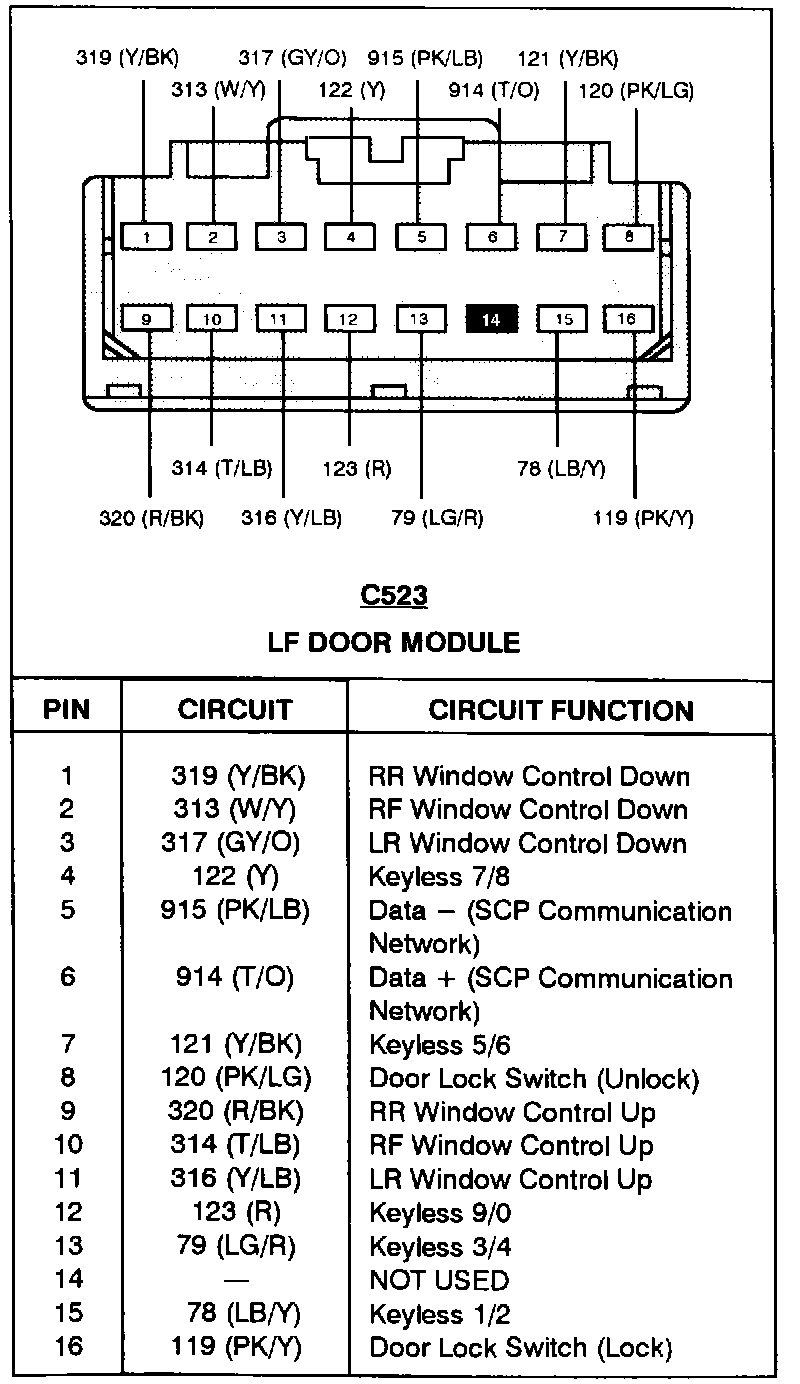

LF Door Module (C523):




LF Door Module (C524):




LF Door Module (C522):
