Multi-Function Switch Component Test (Lamp Portion)

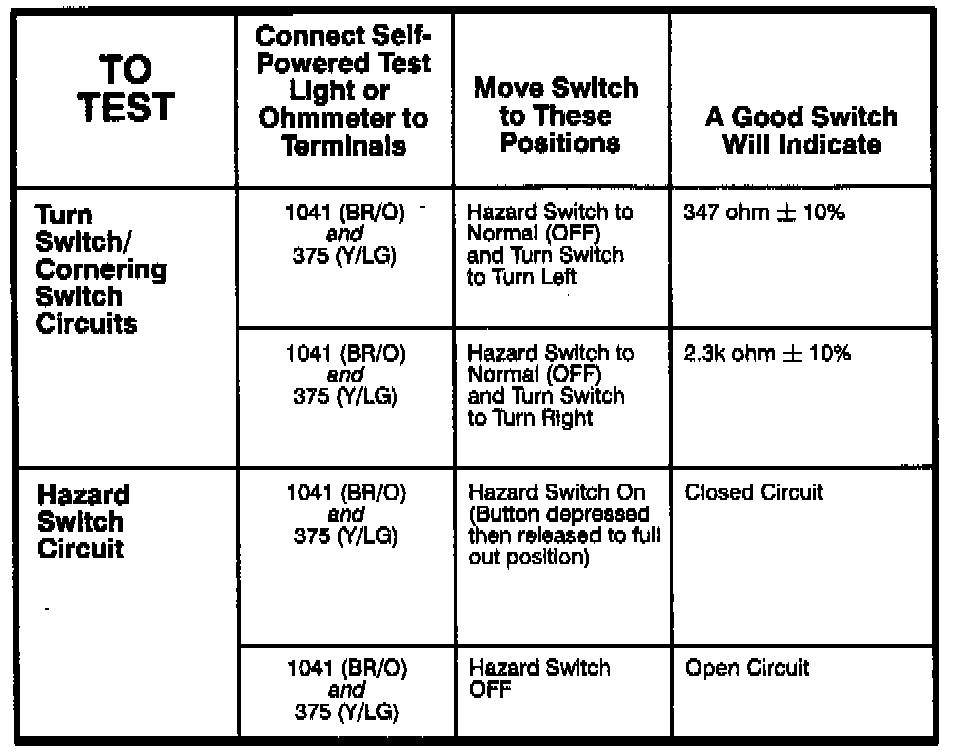

Multi-Function Switch - Component Testing Procedure (Part 1 Of 2):




Multi-Function Switch - Terminal Locations:




Multi-Function Switch - Schematic-Lamp Portion Of Multi-Function Switch:
