Seat Temperature Control Module: Service and Repair

REMOVAL

NOTE: The driver seat procedure is shown, the passenger seat procedure is similar.

1. Remove the seat.







2. Release the J-clips and pull the seat cushion cover back.







3. Remove the rivets.

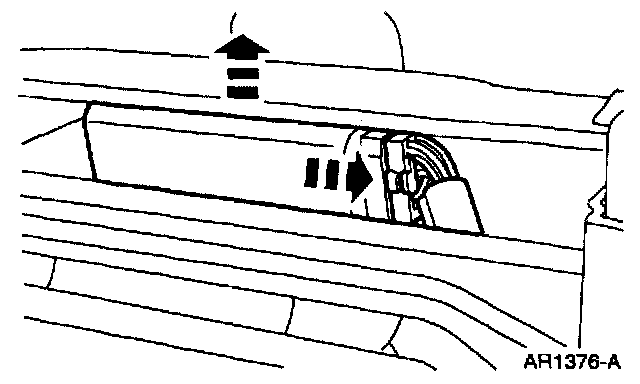

4. Disconnect the connector and remove the module.

INSTALLATION
1. Follow the removal procedure in reverse order.
