Control Module

REMOVAL
1. Operate the roof opening glass to the flush position.







2. Remove the roof headlining access hole cover.

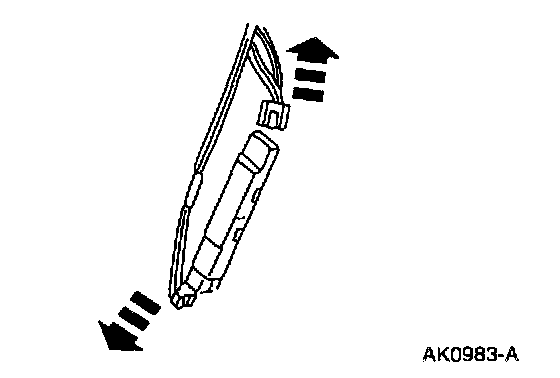

3. Slide the control module from the retaining bracket.







4. Remove the control module.

INSTALLATION
1. Follow the removal procedure in reverse order.
