Disc Brake System: Service and Repair

REMOVAL
1. Disconnect the rear parking brake cable guide.
2. Remove the axle shaft.

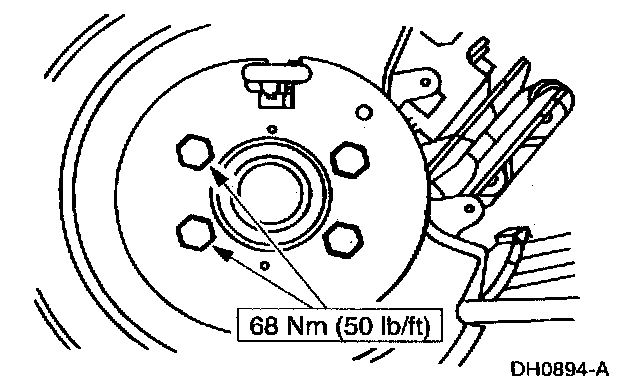

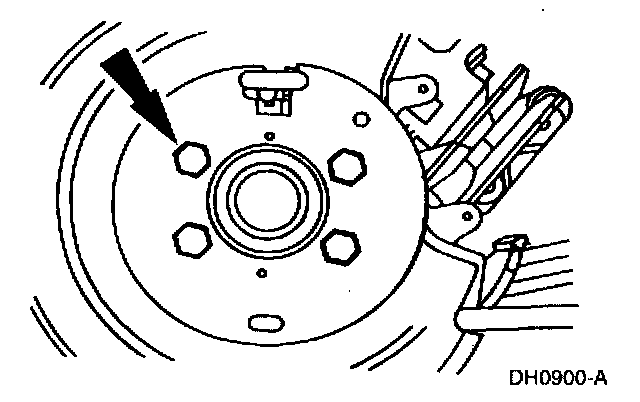

3. Remove the bolts and the rear wheel disc brake adapter.

WARNING: TO AVOID INJURY WHEN USING AIR TOOLS, DO NOT HOLD FLAG NUTS WITH FINGERS.

INSTALLATION





1. Follow the removal procedure in reverse order.
