Throttle Position Sensor: Service and Repair

REMOVAL

CAUTION: Always disconnect the battery ground cable prior to work on the electronic engine controls or damage to the electronic component may occur.

1. Disconnect the battery ground cable.







2. Remove the engine appearance cover.







3. Disconnect the Throttle Position (TP) Sensor connector.

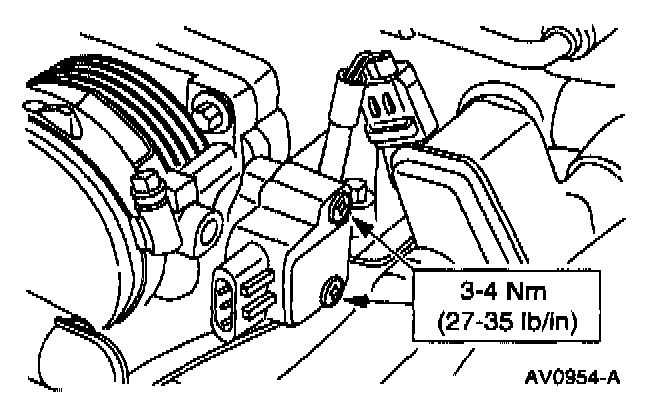

4. Remove the screws and the throttle position sensor.












INSTALLATION
1. Follow the removal procedure in reverse order.
