Home
>>
Lincoln
>>
1998
>>
Town Car V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Window Control Switch
>>
Left Rear
Left Rear

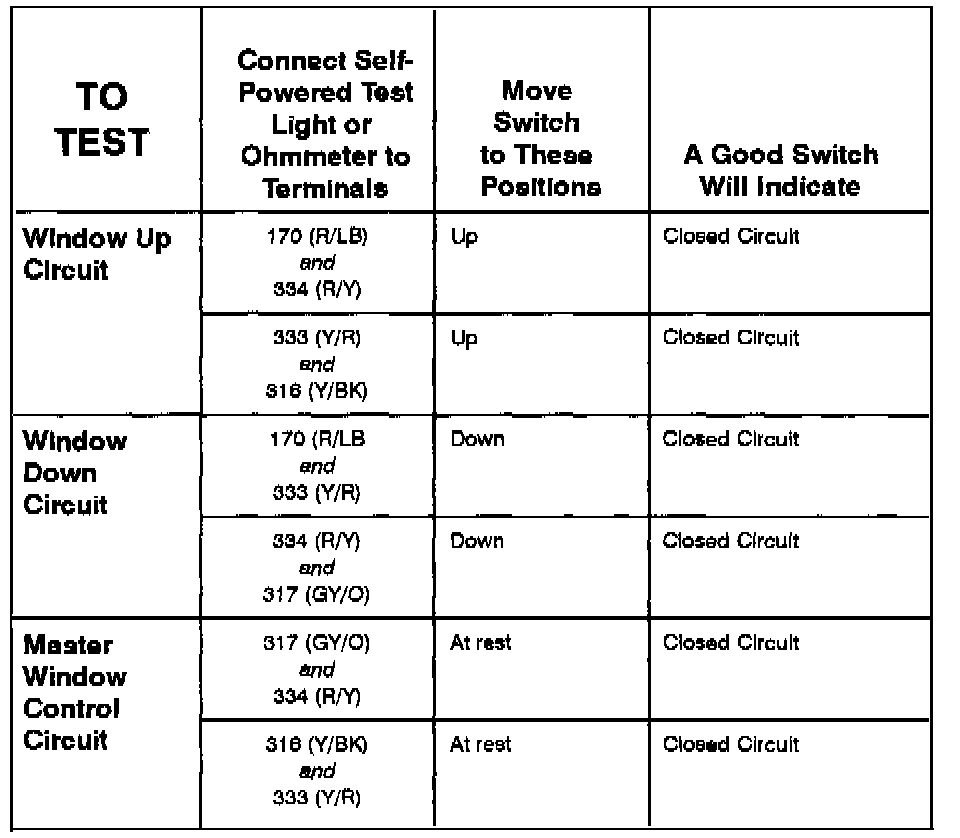

LR Window Control Switch - Component Testing Procedure:

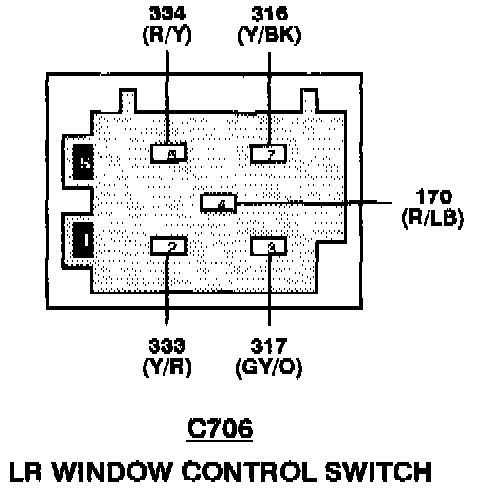

LR Window Control Switch - Terminal Location:

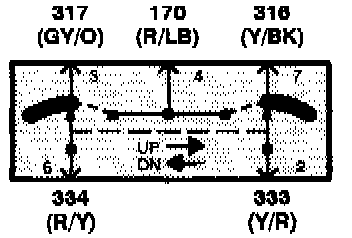

LR Window Control Switch - Schematic:
