Window Control Switch
>>
Right Rear
Right Rear

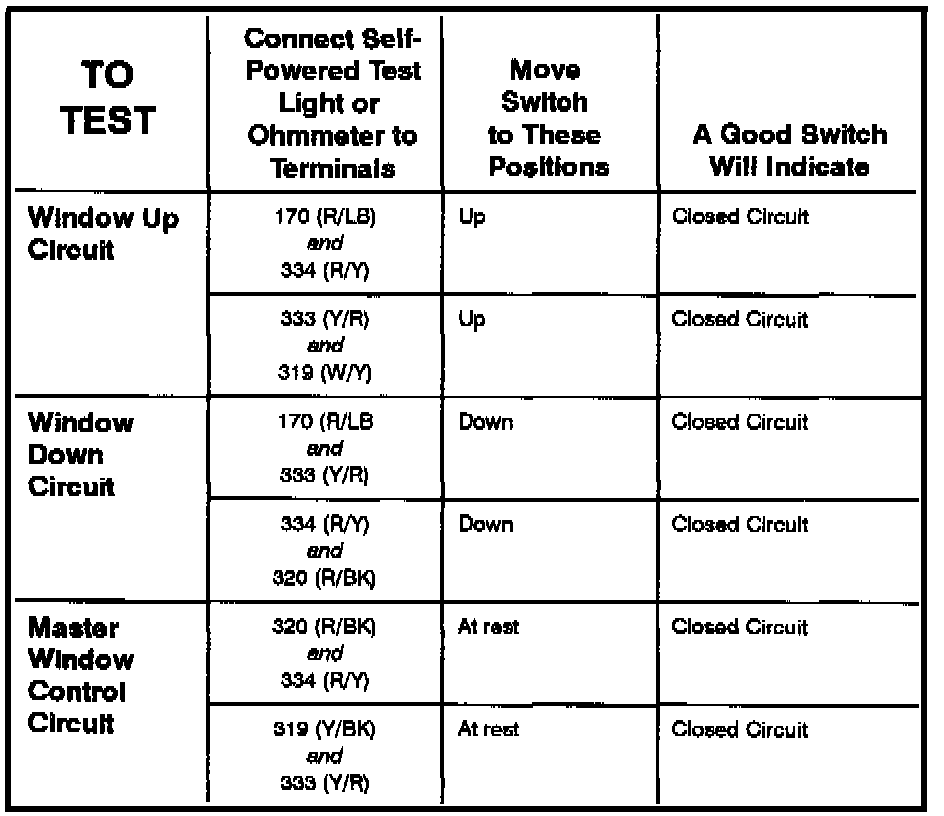

RR Window Control Switch - Component Testing Procedure:

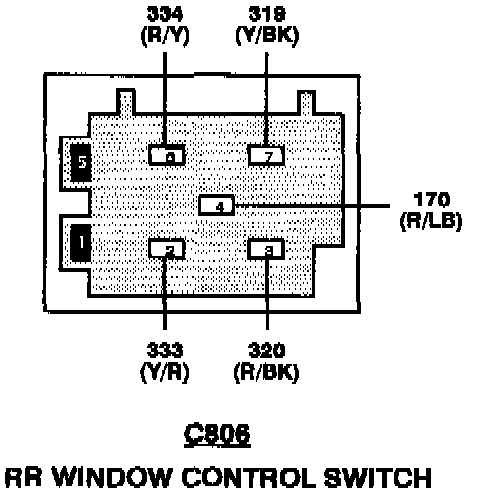

RR Window Control Switch - Terminal Location:

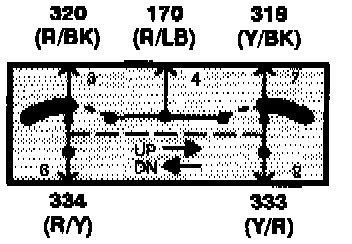

RR Window Control Switch - Schematic:
