Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2000 >> Continental V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

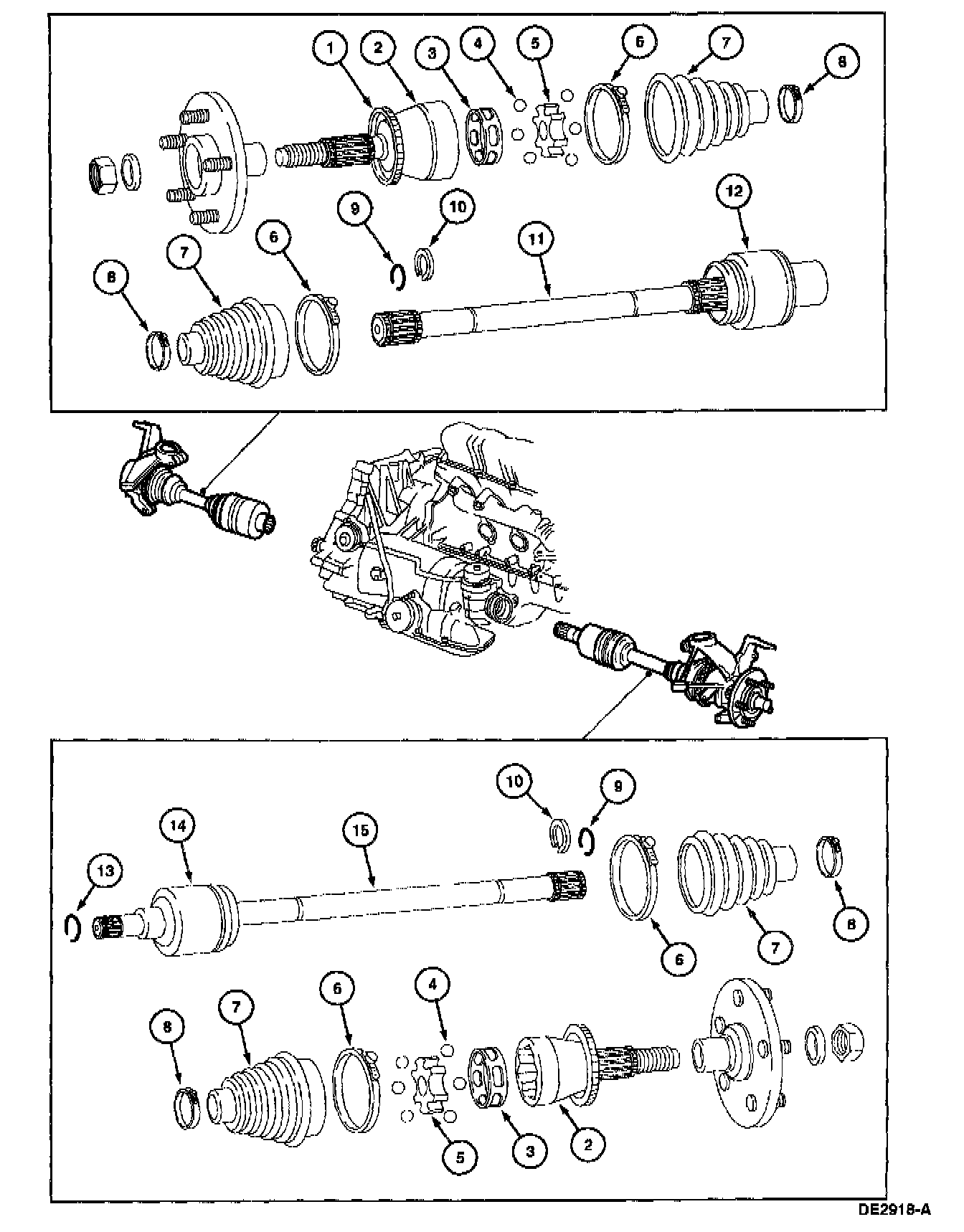

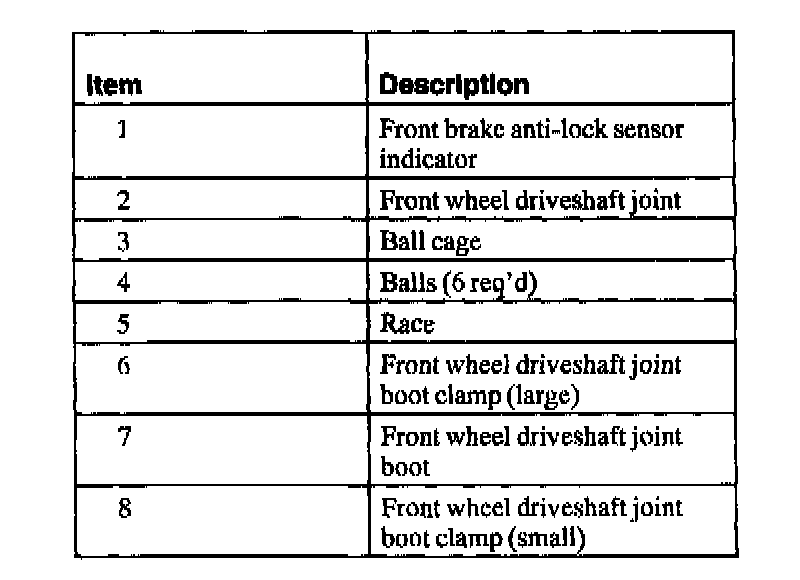

Axle Shaft





1 of 3





2 of 3





3 of 3
