Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL

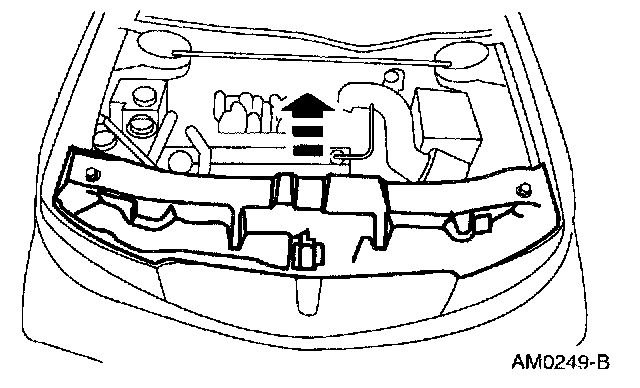

1. Remove the radiator upper sight shield.

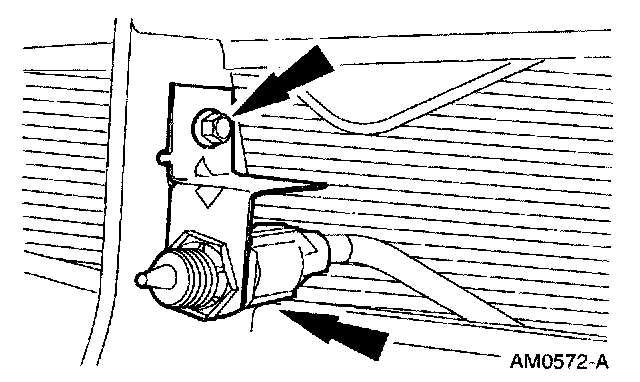

2. Remove the A/C ambient air temperature sensor and bracket.
- Remove the screw.
- Disconnect the electrical connector and remove the A/C ambient air temperature sensor and bracket.

INSTALLATION

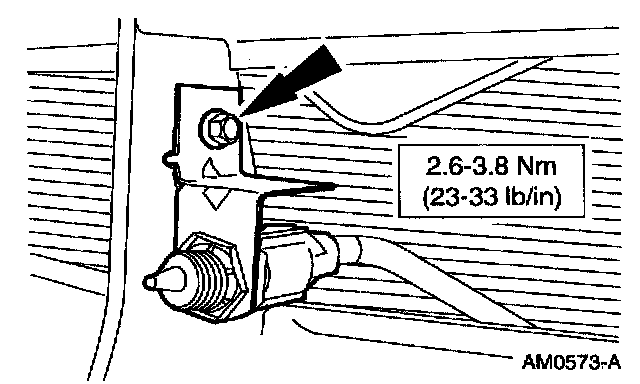

1. Follow the removal procedure in reverse order.
