Ignition Coil: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove air cleaner outlet tube.







3. Remove the RH spark plug cover.

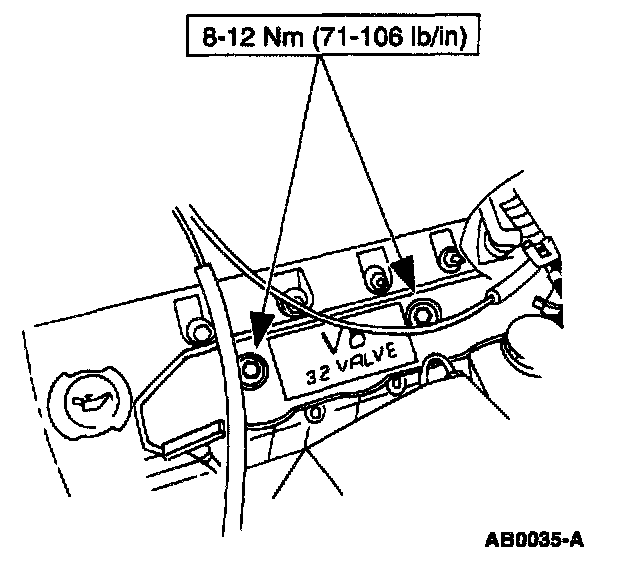

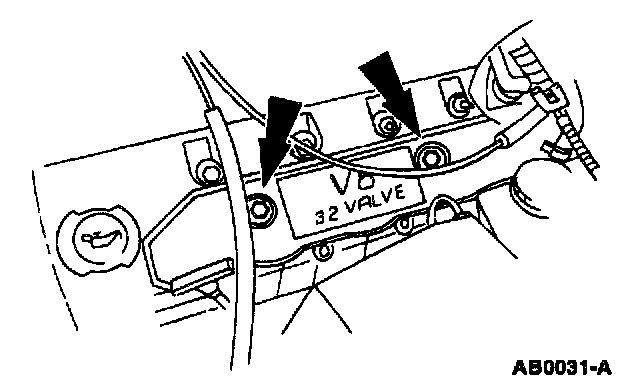

- Remove the bolts from the RH spark plug cover.
- Remove the spark plug cover.







4. Pull the ignition coil from the spark plugs.







5. Remove the ignition coil.

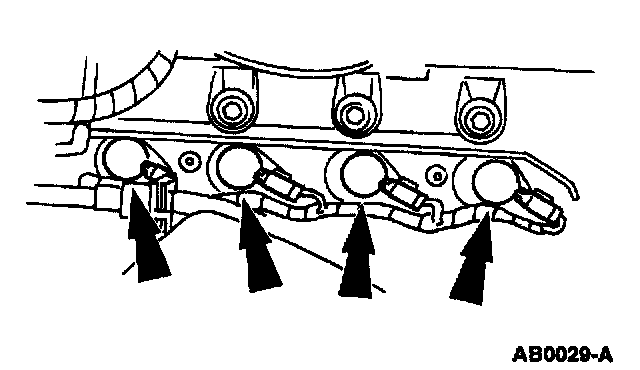

1 Disconnect the connectors from the ignition coil.
2 Remove the ignition coil from the spark plugs.







6. Remove the LH ignition coil cover.

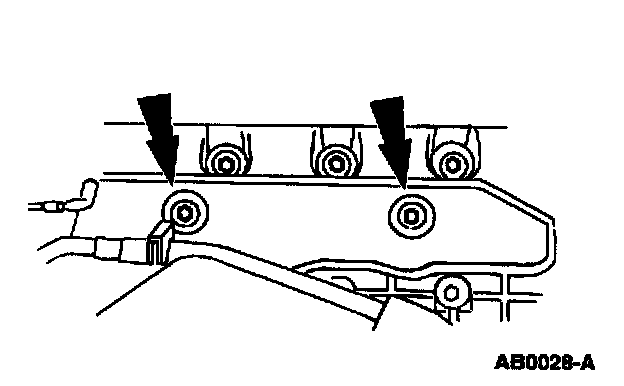

- Remove the bolts from the LH ignition coil cover.
- Remove the ignition coil cover.







7. Pull the ignition coil from the spark plugs.







8. Remove the ignition coil.
1 Disconnect the connectors from the ignition coil.
2 Remove the ignition coil from the spark plug.
9. Inspect ignition coil for cracks, carbon tracking and dirt.

INSTALLATION












1. Follow the removal procedure in the reverse order.
