Front Door Window Regulator: Service and Repair

Front Door Window Regulator

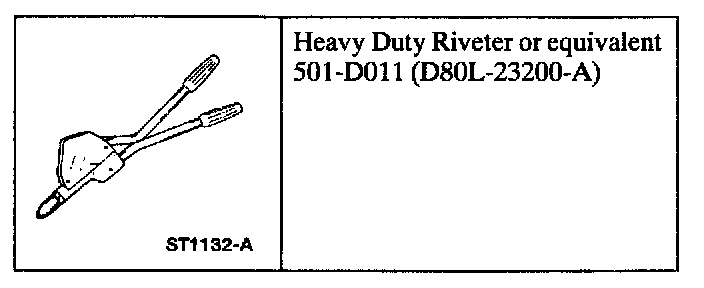

Heavy Duty Riverter:

Special Tool(s)

Removal and Installation
1. Remove the front door window glass.






2. Remove the two front door window regulator stabilizer nuts.






3. Disconnect the electrical connector.






4. Remove the window regulator.
- Remove the rivets.

5. WARNING: The window regulator motor has a counterbalanced spring. The window must be in the up position to remove the motor or blocked to prevent the window from suddenly raising. Failure to follow these instructions may result in personal injury.

NOTE: Transfer components as necessary.

To install, reverse the removal procedure.
