RH and LH

REMOVAL

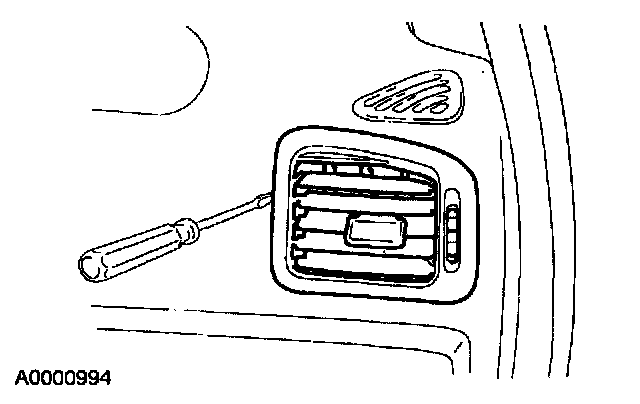

1. Depress the inboard side tab with a flat blade tool. Pull the register rearward, depress the outboard tab and remove the register.

NOTE: RH register shown, LH similar.

INSTALLATION

1. To install, position the register and press into place.
