Center Mounted Brake Lamp: Service and Repair

REMOVAL
1. Remove the carpeted package tray trim panel.

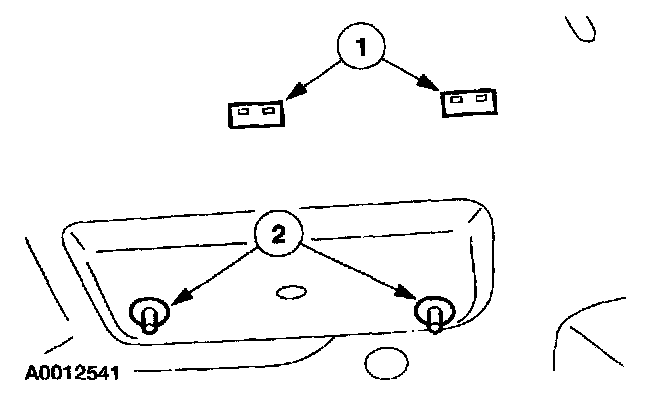

2. Depress the two retaining tabs from the inside of the luggage compartment.


CAUTION: Exercise care not to break the locator pins, which are positioned on the high mounted stoplamp assembly at the rear of the vehicle.

3. Lift the high mounted stoplamp up to clear the locator pins and remove the stoplamp assembly.

INSTALLATION
1. To install, reverse the removal procedure.
