Heater Core: Service and Repair

REMOVAL
1. Remove the plenum chamber.

NOTE: If a heater core leak is suspected, the heater core must be leak tested before it is removed from the vehicle.

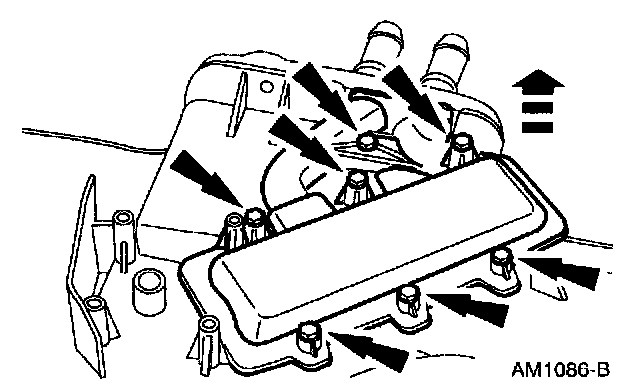

2. Remove the screws and the heater core cover.

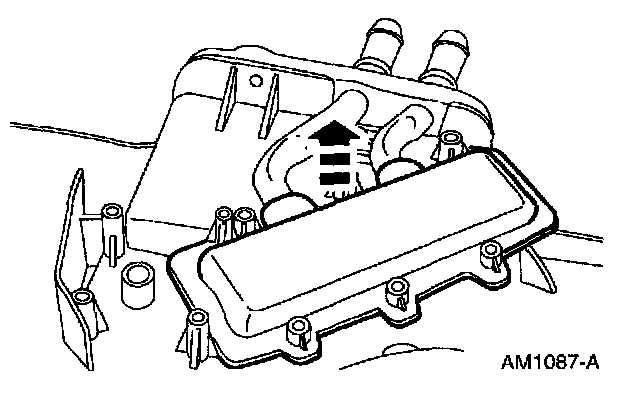

3. Remove the seal.

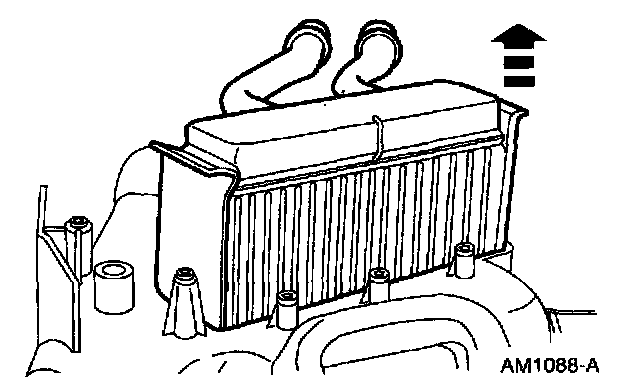

4. Remove the heater core.

INSTALLATION

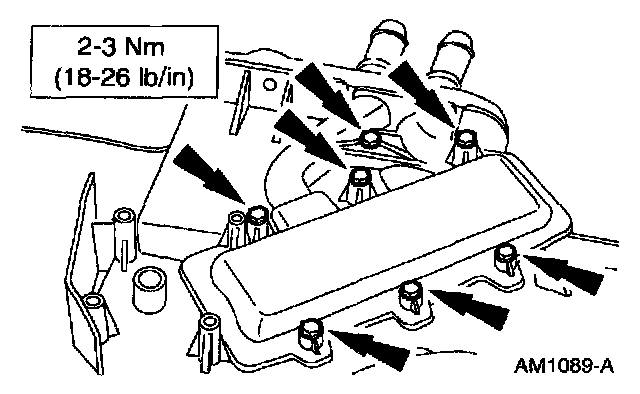

1. Follow the removal procedure in reverse order.
