Rear Door Window Regulator: Service and Repair

Window Regulator - Power, Rear Door

REMOVAL
1. Remove the rear door window glass; if necessary, refer to Window Glass.

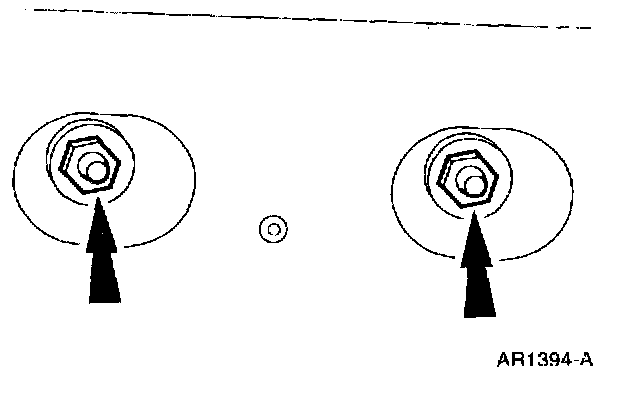

2. Remove the upper regulator nuts.

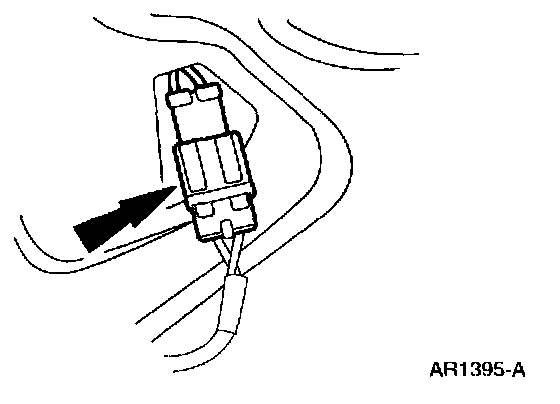

3. Disconnect the window motor connector.

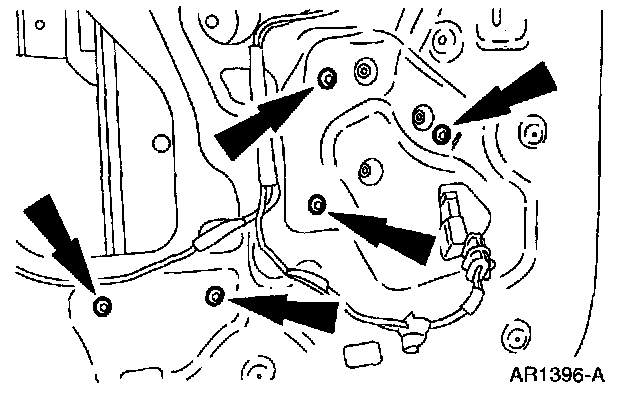

4. Remove the rivets and the regulator.
5. Transfer the motor to the new regulator assembly.

INSTALLATION

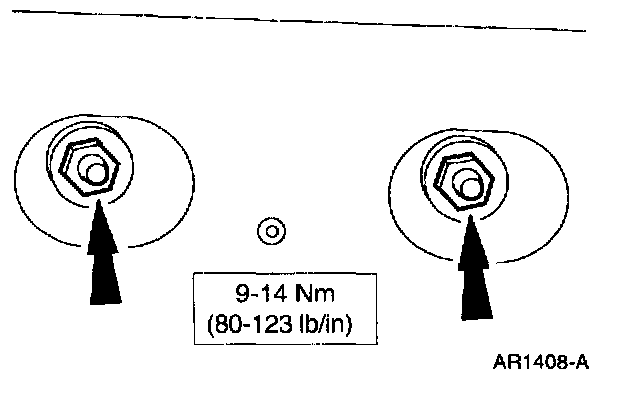

1. Follow the removal procedure in reverse order.
