Automatic Transmission/Transaxle

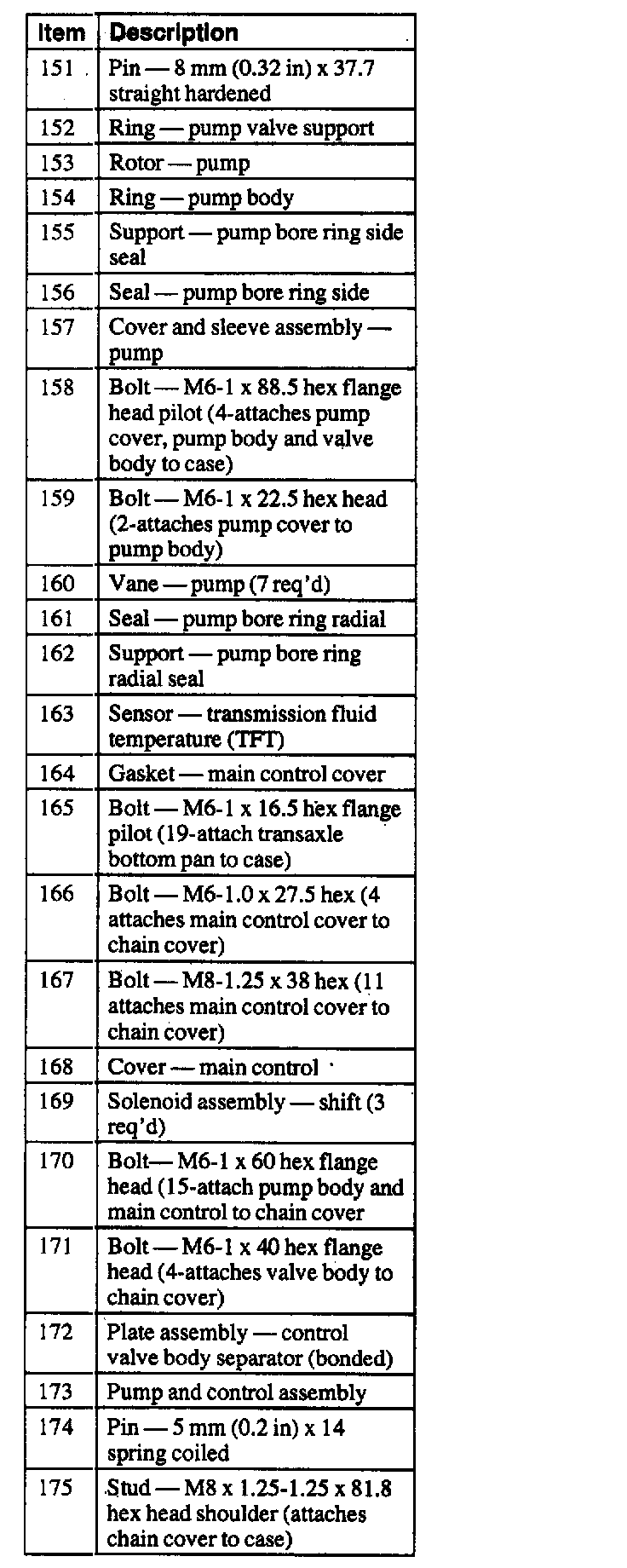

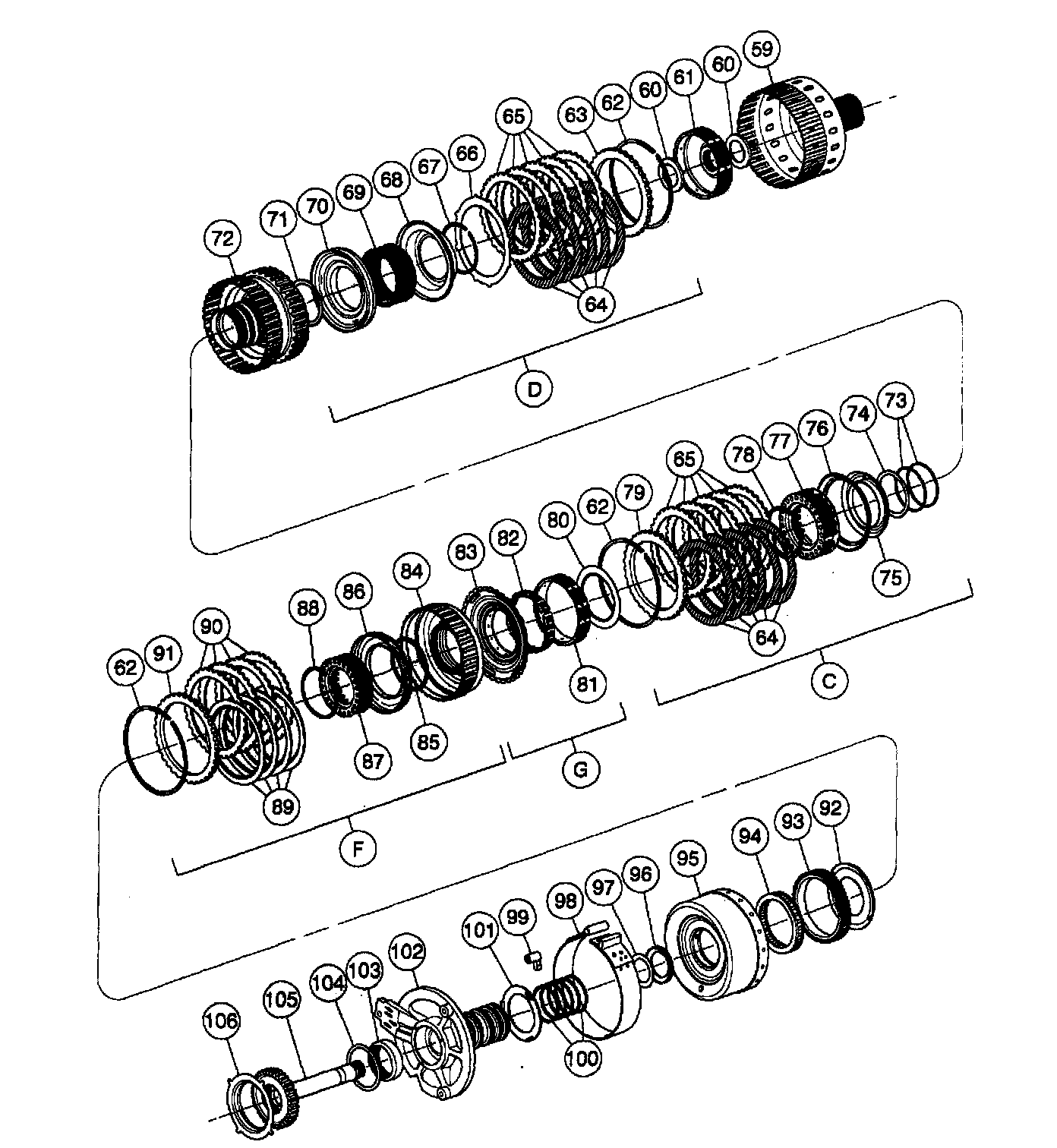

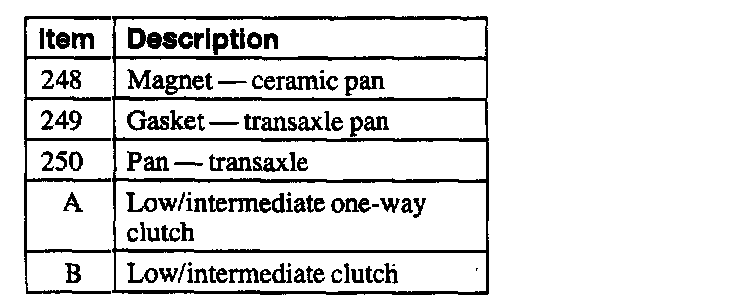

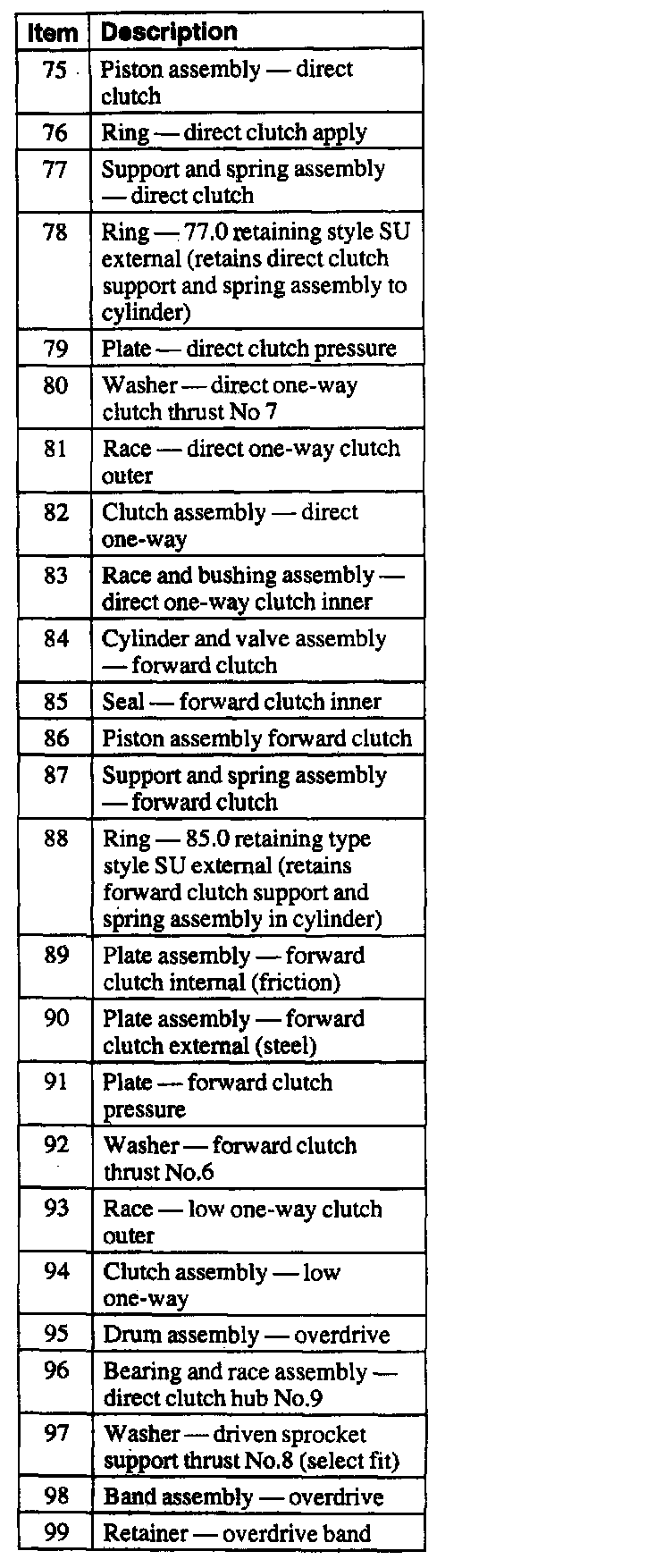

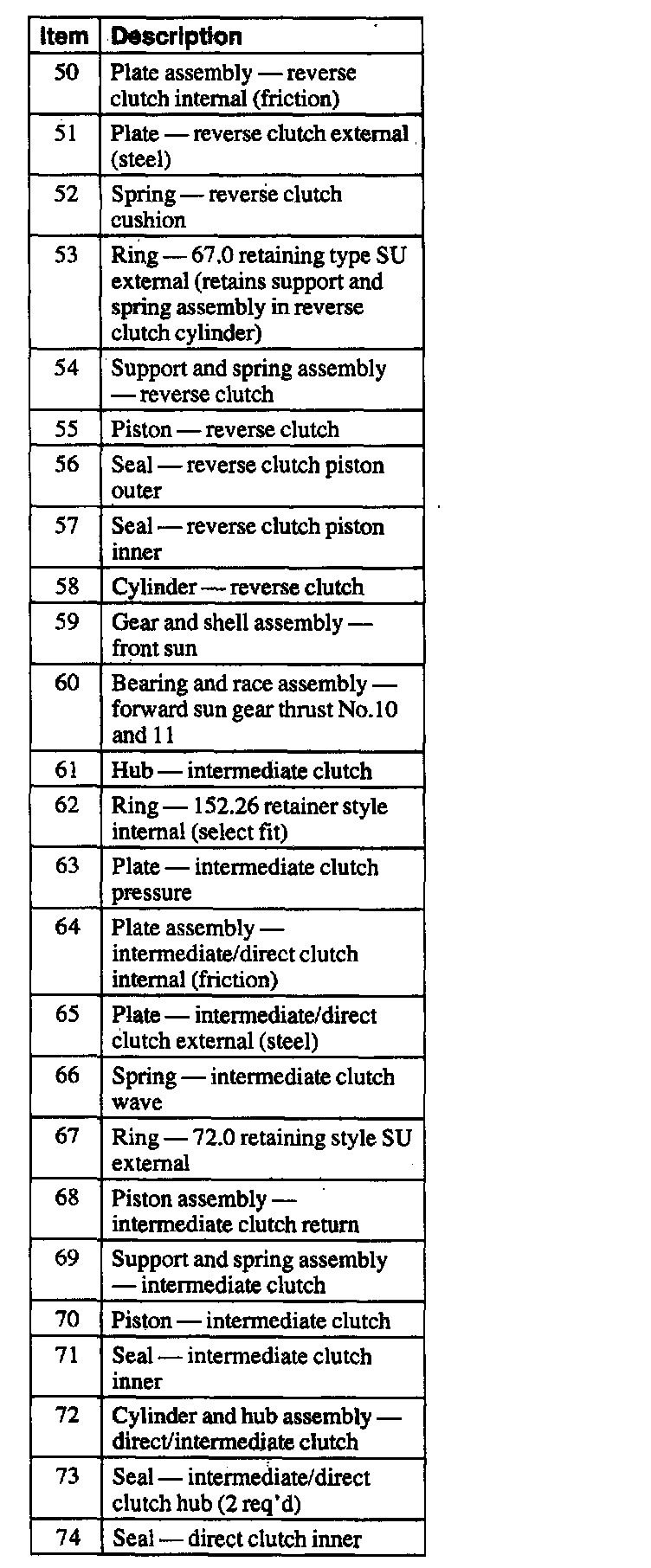

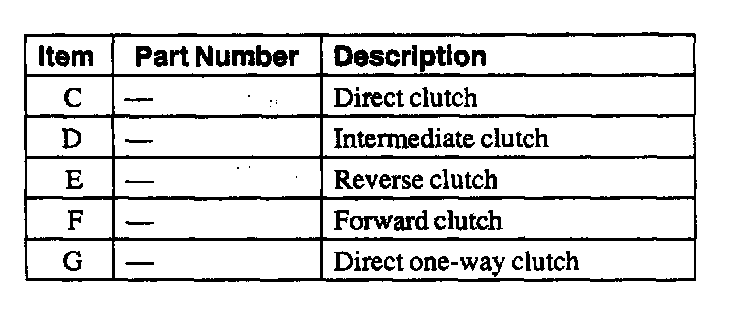

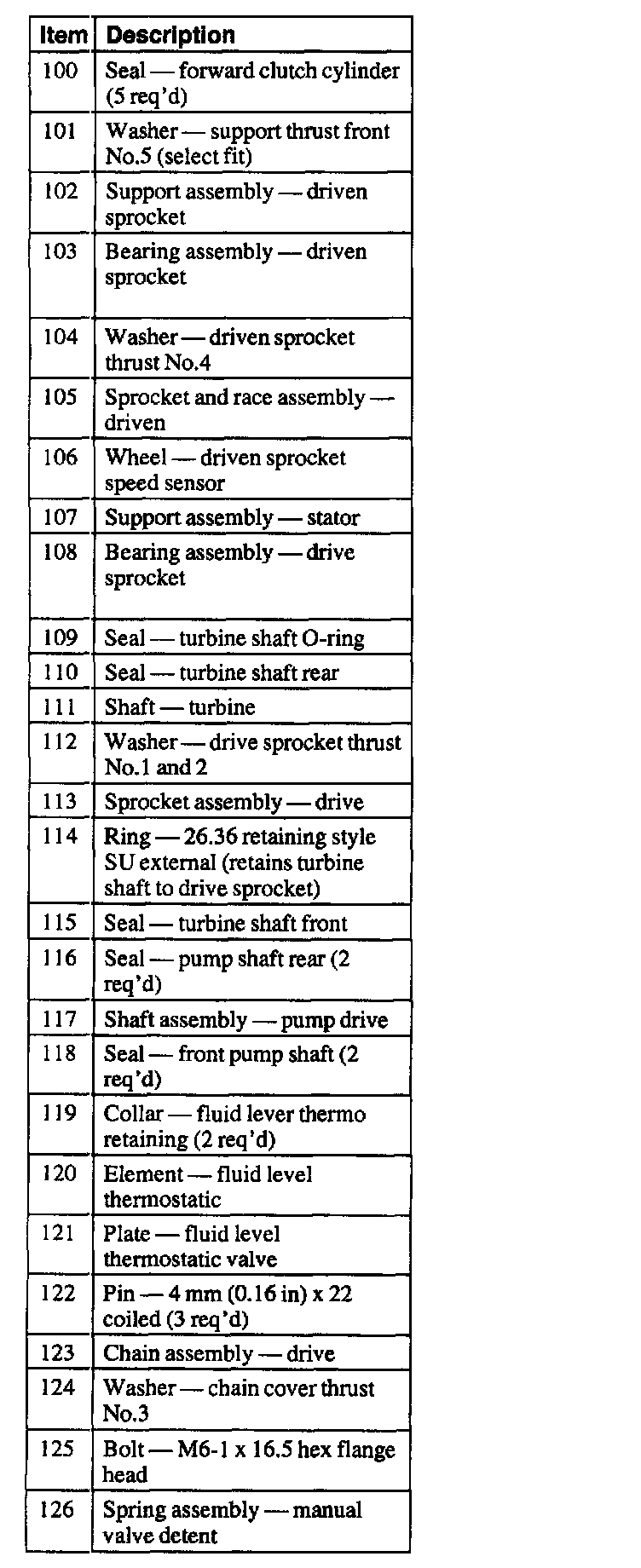

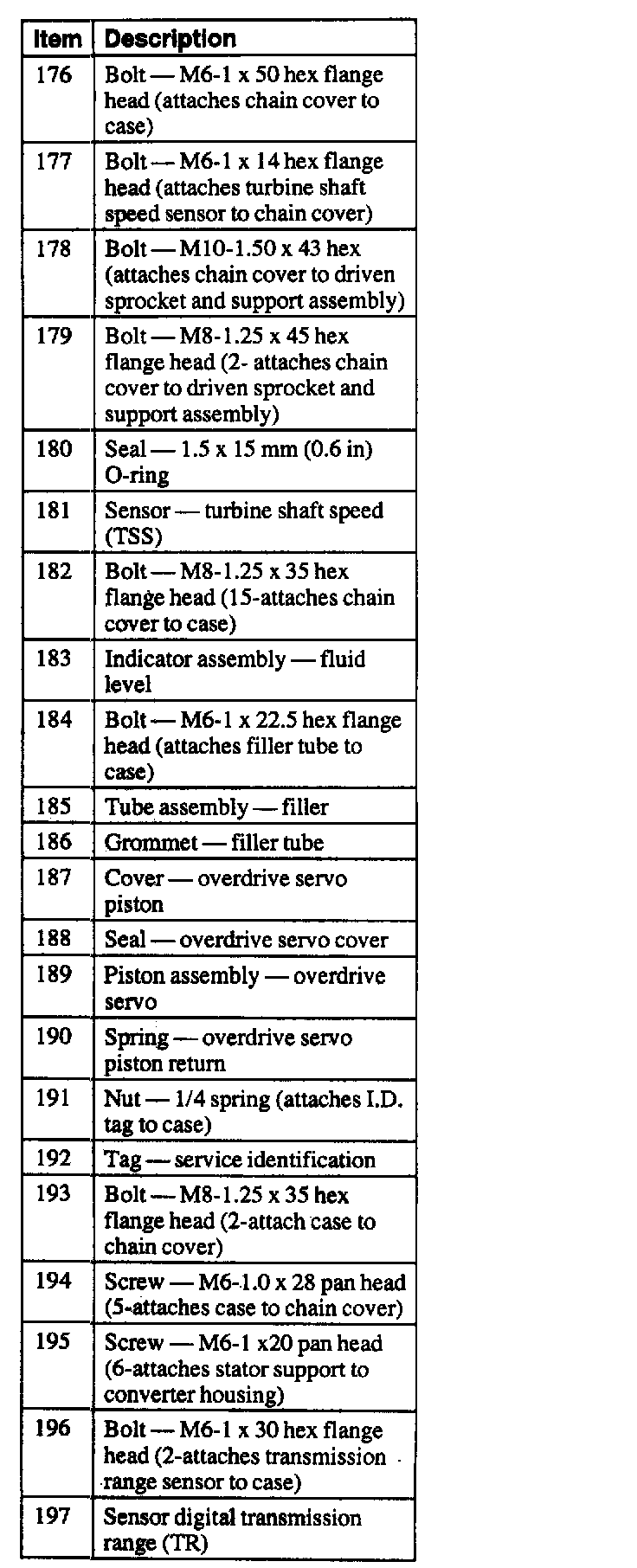

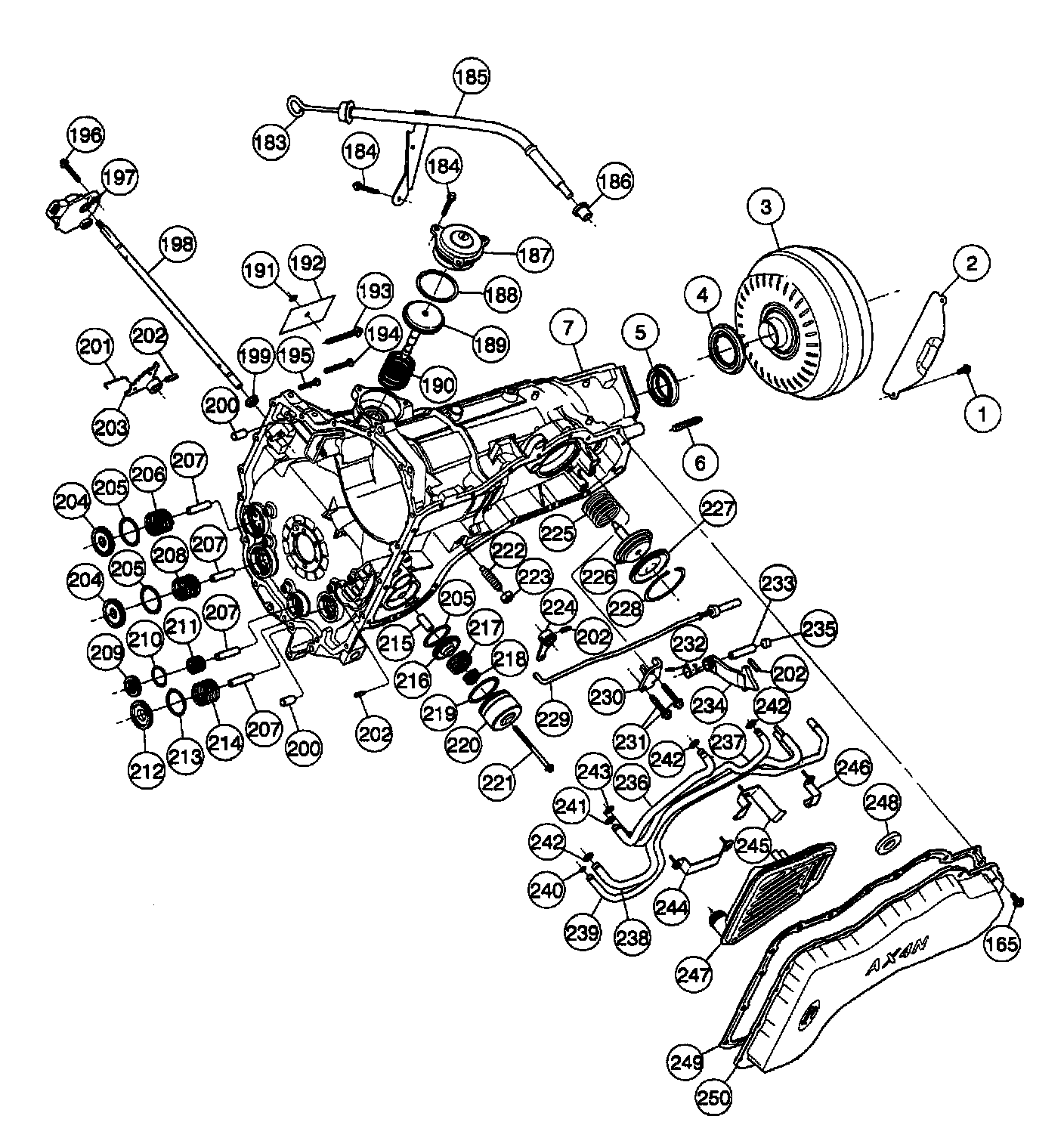

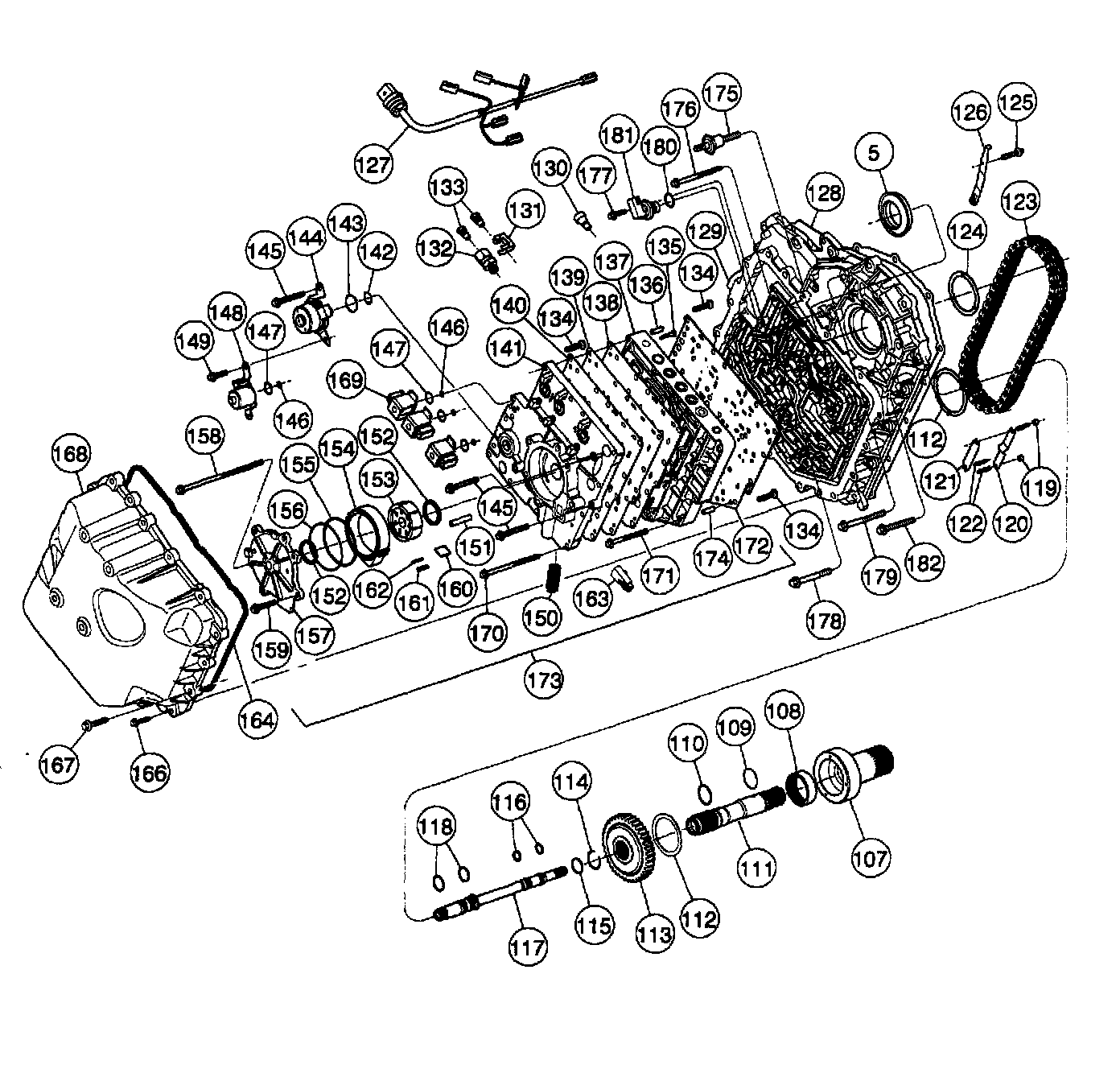

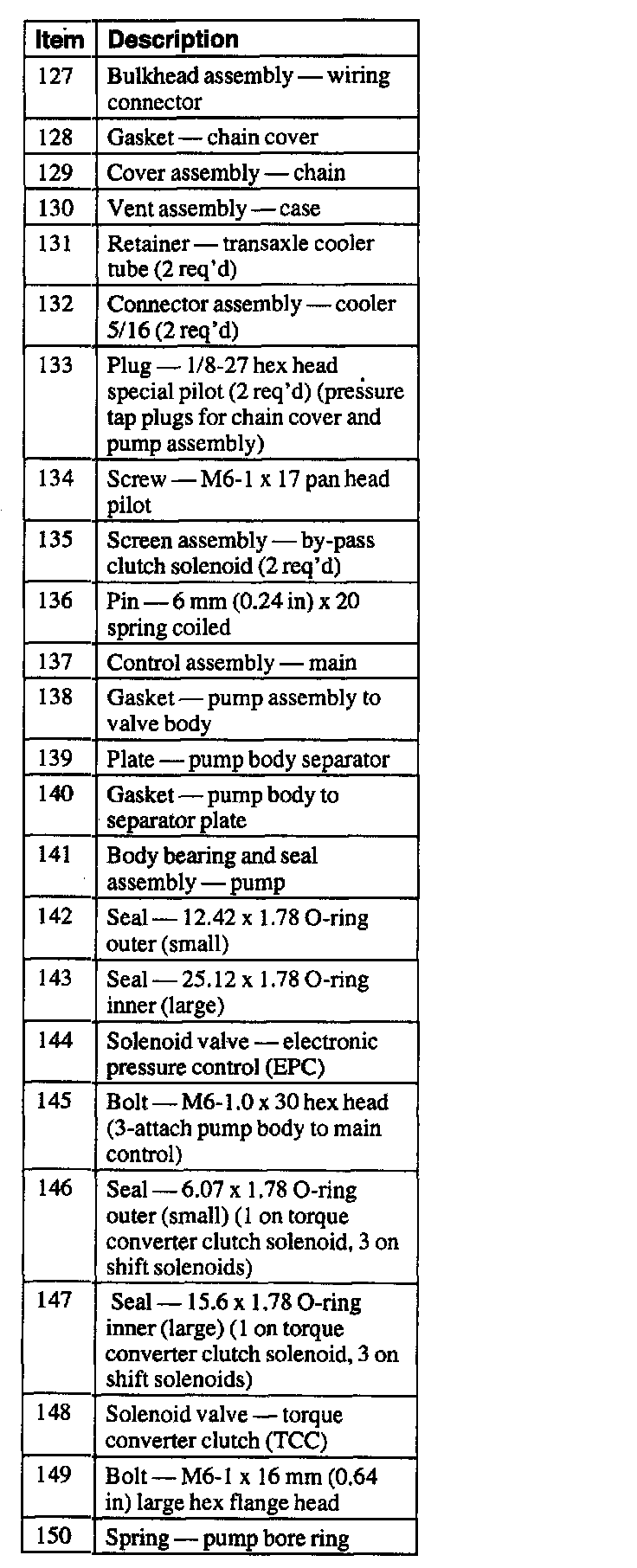

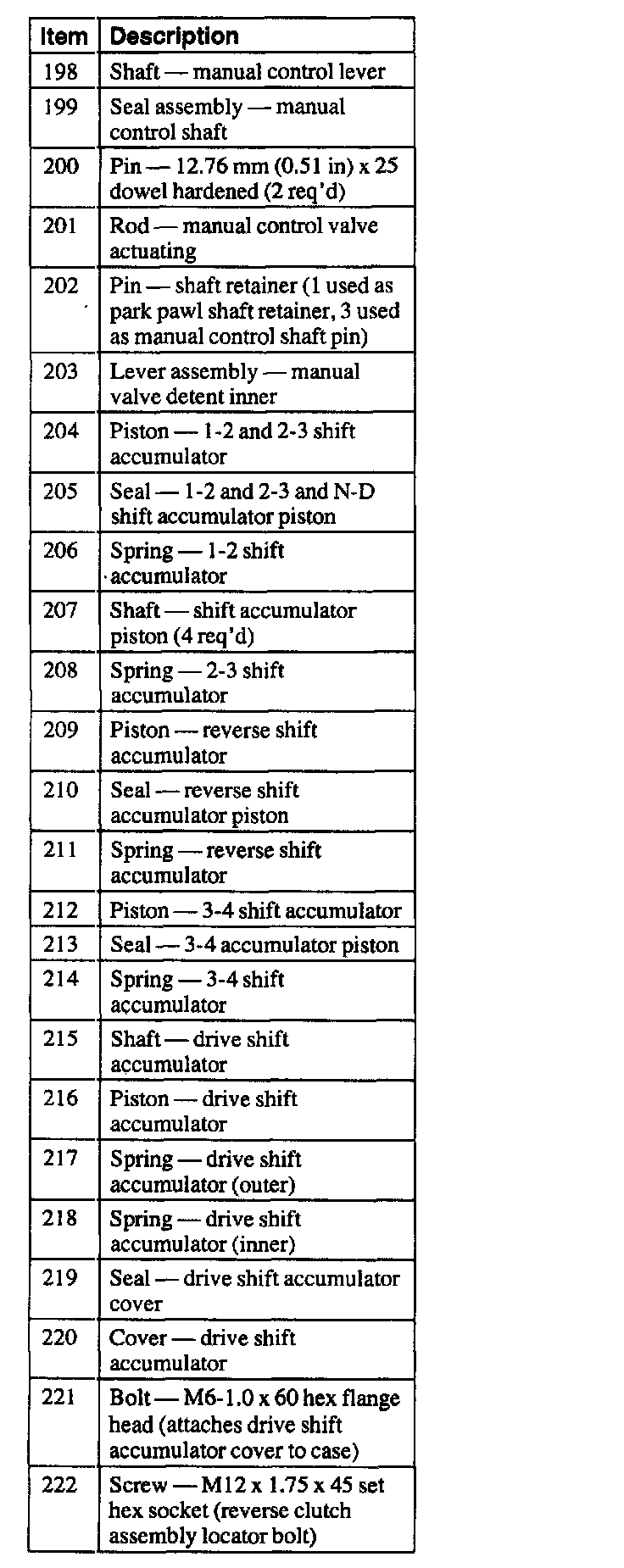

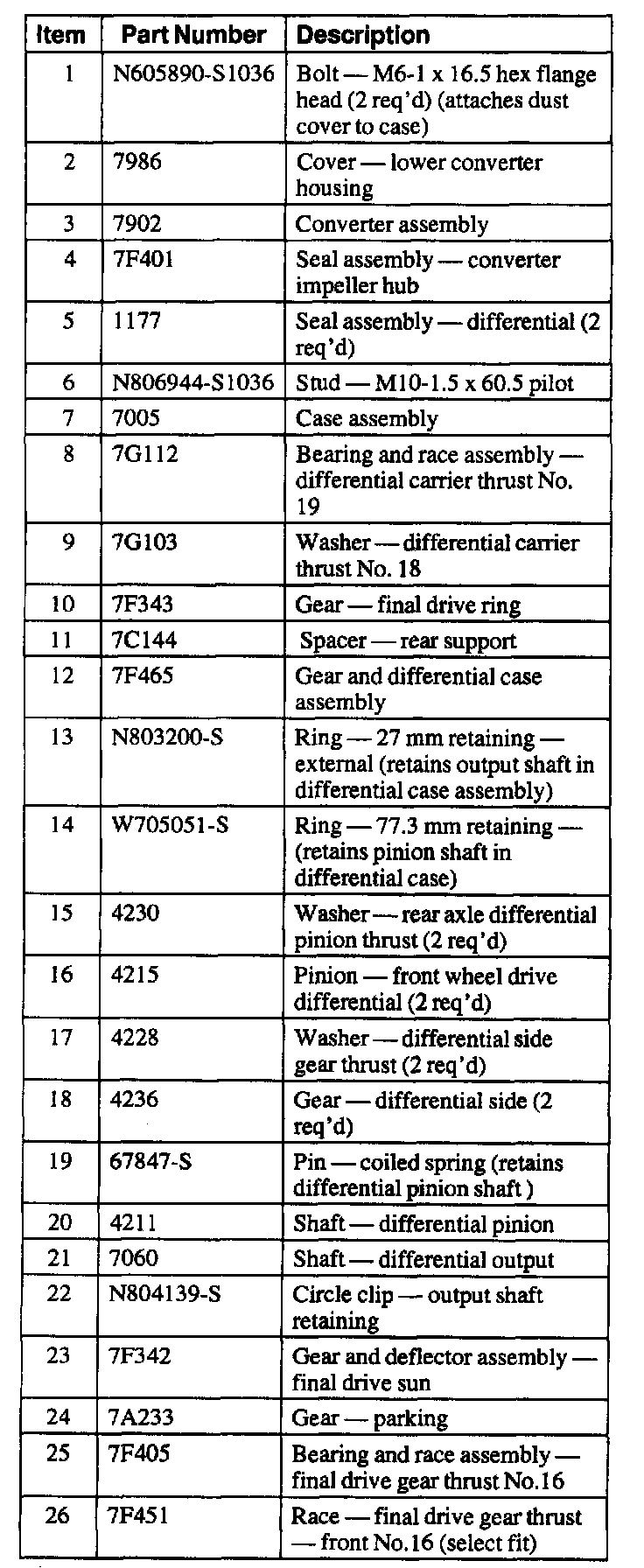

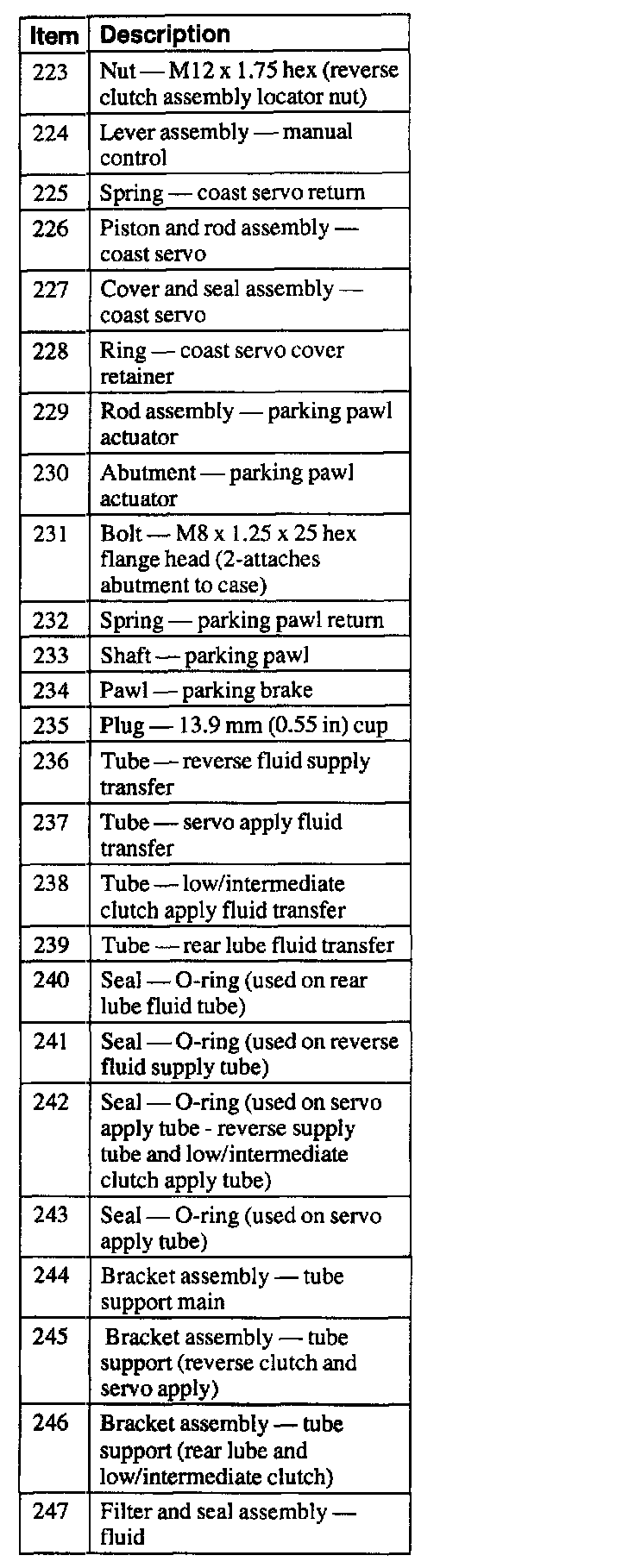

Disassembled Views





Part 1 of 16





Part 2 of 16





Part 3 of 16





Part 4 of 16





Part 5 of 16





Part 6 of 16





Part 7 of 16





Part 8 of 16





Part 9 of 16





Part 10 of 16





Part 11 of 16





Part 12 of 16





Part 13 of 16





Part 14 of 16





Part 15 of 16





Part 16 of 16
